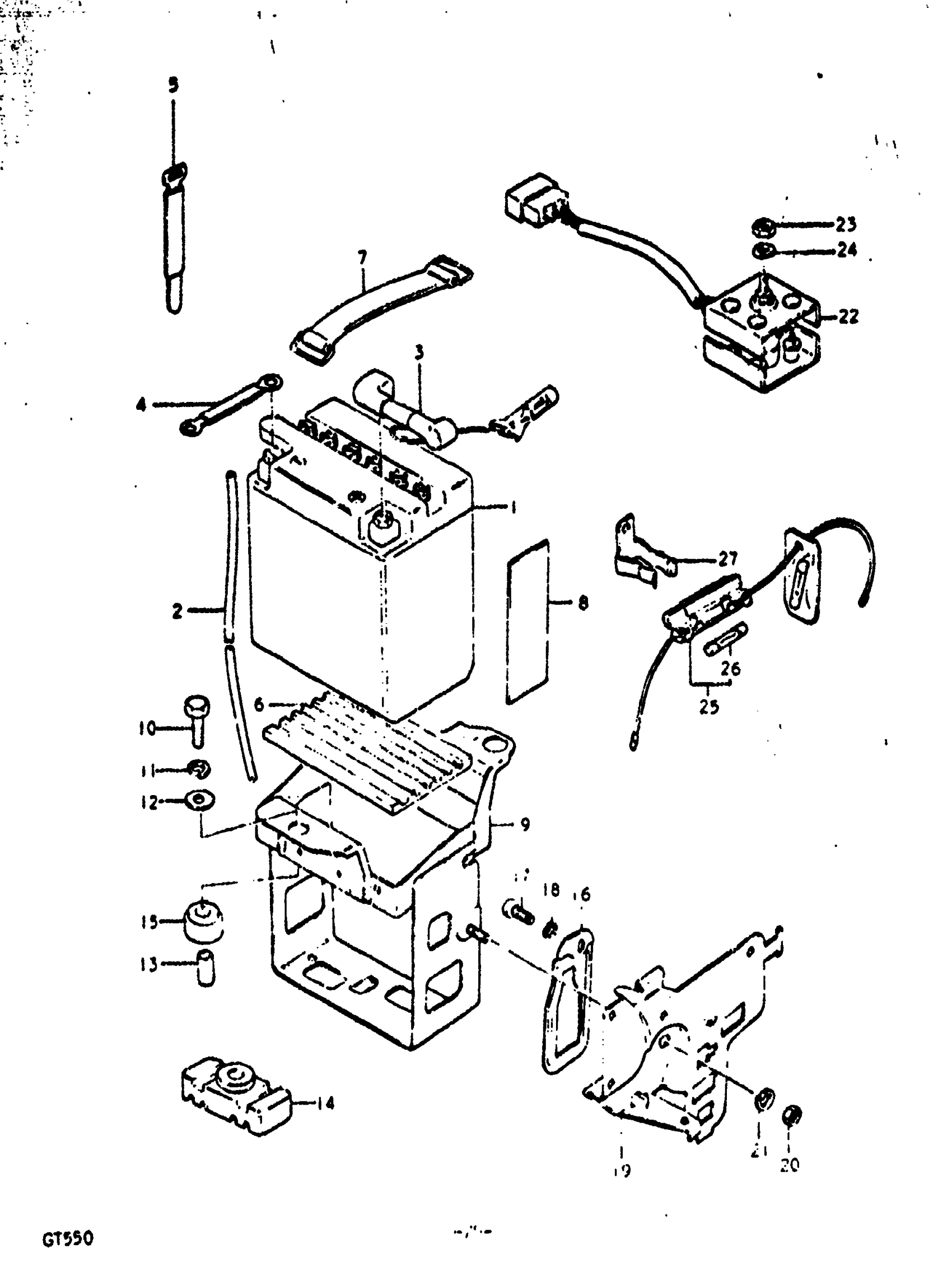

Suzuki GT550 (1972) BATTERY Diagram

#

Description
Price

1

BATTERI | 12V, 11AH

33610-34010

Unavailable

2

HOSE,BATTERY EX This part replaces 33680-34000.

33680-16A11

$6.78

3

WIRE, BATTERY LEAD (+)

36861-31001

Unavailable

4

WIRE, BATTERY LEAD (-)

36864-34000

Unavailable

5

CLAMP | L1:40 FROM 09407-14301 This part replaces 09407-18301.

09407-18302

$2.28

6

PROTECTOR, BATTERY (1)

33651-31000

$18.02

7

BAND

09462-00034

$4.24

8

PROTECTOR (80X80X2) | 30x80x2 This part replaces 33652-34000.

33652-07D00

$5.64

9

HOLDER, BATTERY

41540-34000

Unavailable

10

BOLT, REAR This part replaces 01112-06308.

01500-06307

$2.48

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

13

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.44

14

CUSHION

09320-08012

Unavailable

15

CUSHION

09320-08011

$3.54

16

PLATE, COUPLER HOLDER

37911-34000

Unavailable

17

SCREW This part replaces 02111-04087.

02112-04087

$1.49

18

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

19

PLATE, ELECTRICAL PARTS HOLDER

37900-34000

Unavailable

20

.NUT This part replaces 08311-11068.

08310-00067

$2.13

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

RECTIFIER | FROM 32800-31020

32800-31021

Unavailable

23

.NUT This part replaces 08311-11068.

08310-00067

$2.13

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

25

FUSE CASE ASSY | FROM 36740-31010; Includes Item(s) 26 This part replaces 36740-31211.

36740-31212

Unavailable

26

FUSE | 20A

09481-20001

$2.93

27

HOLDER, FUSE CASE

36791-25001

Unavailable
