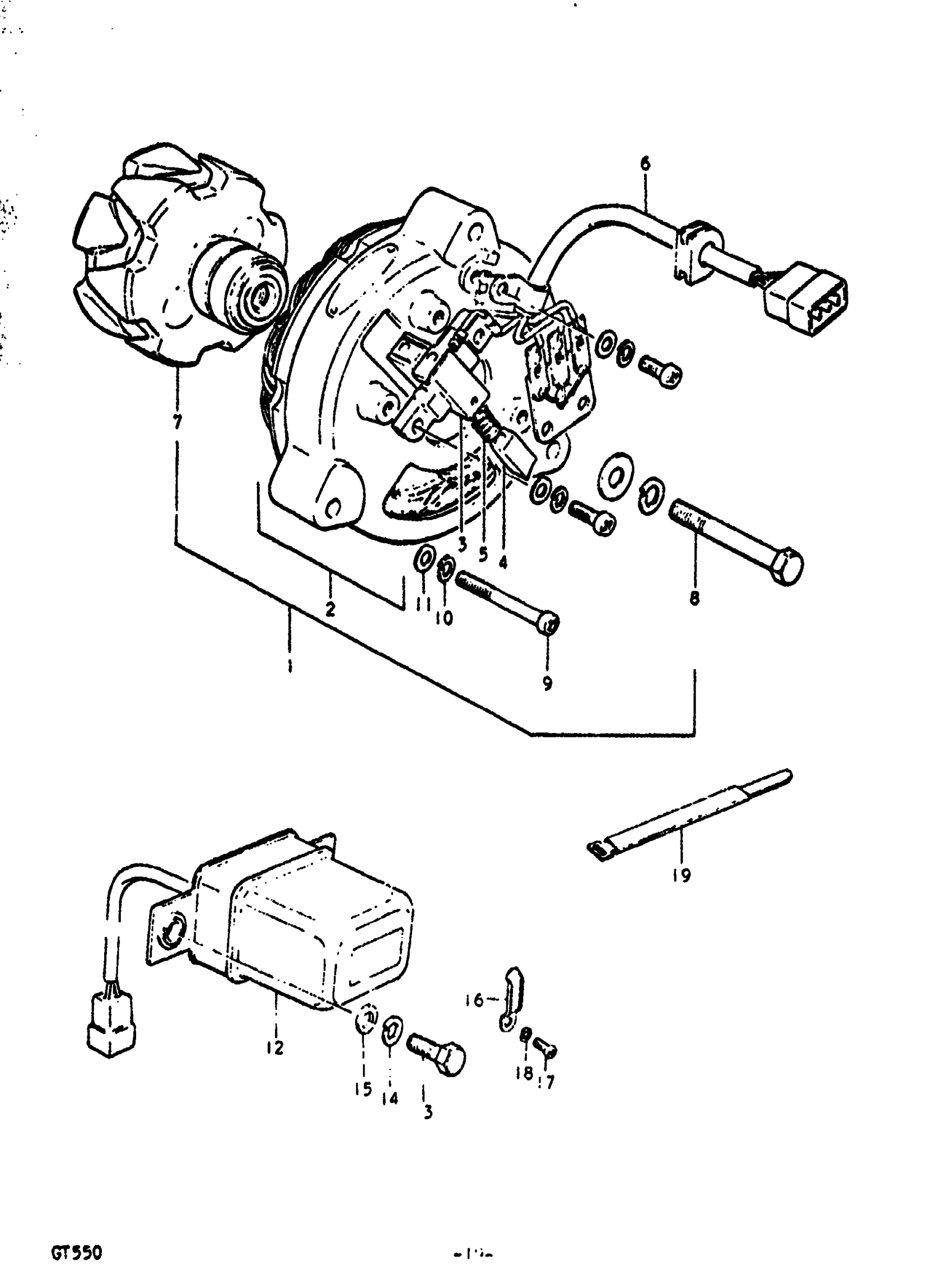

Suzuki GT550 (1972) ALTERNATOR (MADE BY NIPPON DENSO) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | TO 31400-33012; Includes Item(s) 2 - 9 This part replaces 31400-33011.

31400-33012

Unavailable

2

STATOR ASSY | TO 31401-33013 This part replaces 31401-33012.

31401-33013

Unavailable

3

HOLDER, BRUSH | TO 31656-33012 This part replaces 31656-33011.

31656-33012

Unavailable

4

BRUSH

31631-31011

Unavailable

5

SPRING This part replaces 31635-55011.

31635-55012

Unavailable

6

LEAD WIRE

31480-33010

Unavailable

7

ROTOR

31402-33012

Unavailable

8

BOLT This part replaces 01122-08658.

01500-0865B

$3.49

9

SCREW This part replaces 02111-05458.

02112-05457

$1.86

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

REGURATOR ASSY, VOTAGE

32500-31010

Unavailable

13

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

16

CLAMP This part replaces 09403-07301.

09403-07309

Unavailable

17

SCREW This part replaces 02112-05108.

02112-05107

$1.49

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

CLAMP | FROM 09407-07301 This part replaces 09407-11302.

09407-18302

$2.28
