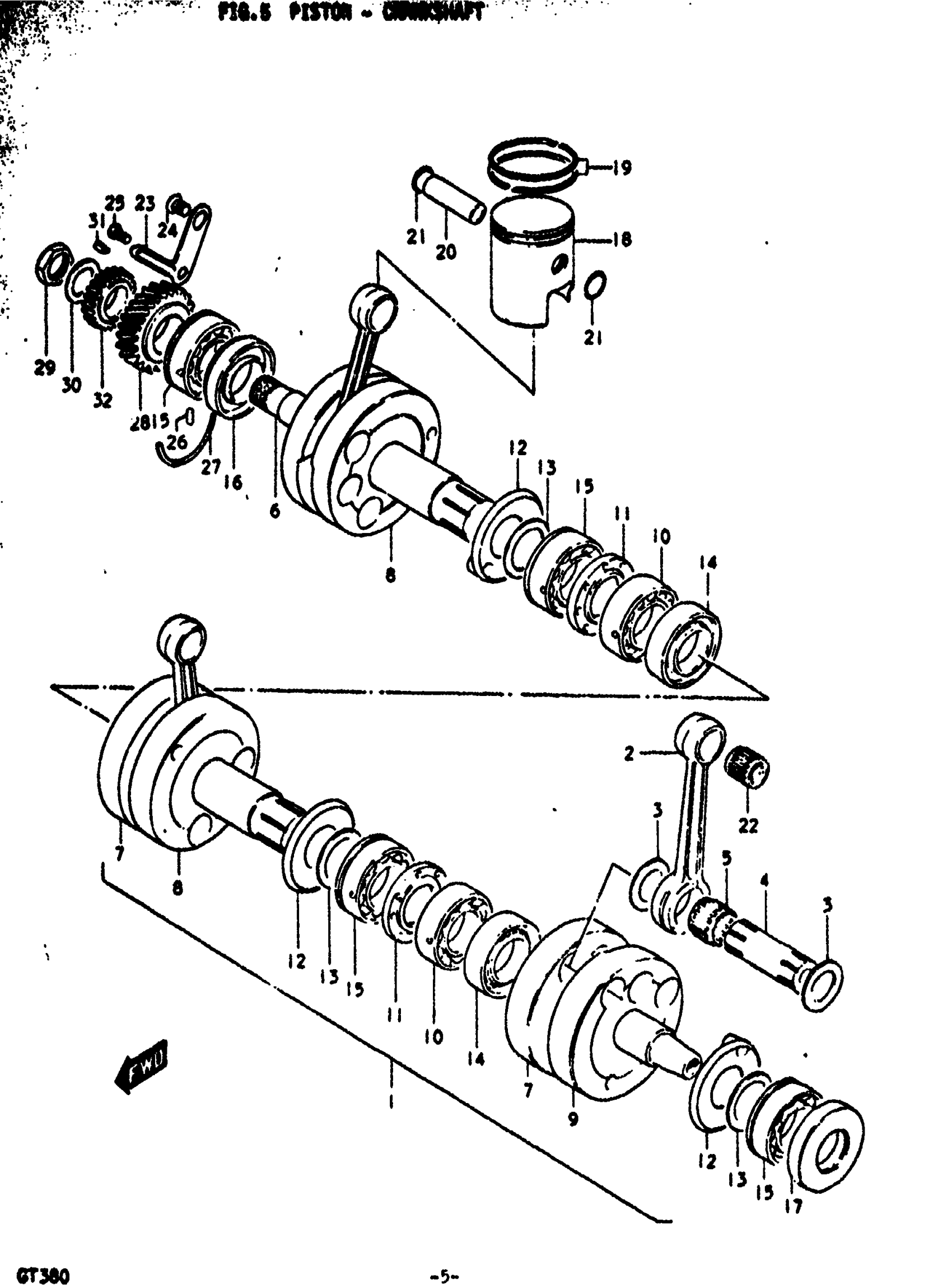

Find the part on the Piston - Crankshaft diagram for your 1972 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki GT380 Piston - Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | FROM 12000-33802; Includes Item(s) 2 - 17

12200-33000

1
Out of stock

2

ROD CONNECTING This part replaces 12161-11000.

12161-11001

3
Out of stock

3

WASHER | 20x34x1 This part replaces 09160-20010.

09160-20052

6
Out of stock

4

PIN, CRANK

12211-58000

3
Out of stock

5

BEARING | FROM 09263-20001

09263-20020

3
Out of stock

6

CRANKSHAFT, RH

12221-33000

—
Out of stock

7

WEB, CRANK

12222-33000

2
Out of stock

8

CRANKSHAFT, MIDDLE

12231-33000

2
Out of stock

9

CRANKSHAFT, LH

12261-33000

1
Out of stock

10

B1 25X52X15 BEA This part replaces 09262-25031.

09262-25077

2
Out of stock

11

SPACER, CRANKSHAFT | TO 12353-33011

12353-33010

—
Out of stock

12

PLATE, CRANKSHAFT OIL GUIDE

12511-33000

3
Out of stock

13

SHIM (T:0.50) This part replaces 08221-25365.

09181-25186

3
Out of stock

14

OIL SEAL

09289-25005

2
Out of stock

15

BEARING | FROM 09262-25032

09262-25030

4
Out of stock

16

OIL SEAL

09283-32005

1
Out of stock

17

OIL SEAL

09283-25047

1
Out of stock

18

PISTON | FROM 12110-33002

12110-33004

3
Out of stock

18

PISTON SET | OPT FROM 12110-33701 OS:0.5 This part replaces 12110-33703.

12103-33810-050

3
Out of stock

18

PISTON SET | OPT FROM 12110-33711 OS:1.0 This part replaces 12110-33713.

12103-33810-100

3
Out of stock

19

NO DESCRIPTION AVAILABLE | PLAIN TYPE This part replaces 12140-33010.

12140-33000

1
Out of stock

19

RING SET, PISTON | KEYSTON TYPE This part replaces 12140-33011.

12140-33012

1
Out of stock

19

RING SET, PISTON | OPT OS:0.5 This part replaces 12140-33701.

12140-33012-050

1
Out of stock

19

RING SET, PISTON | OPT OS:1.0 This part replaces 12140-33711.

12140-33012-100

1
Out of stock

20

PIN,PISTON This part replaces 12151-07000.

12151-23400-0A0

3
Out of stock

21

RING

09381-14001

6
Out of stock

22

ROLLR BRG,14X18 | FROM 09263-14004 This part replaces 09263-14006.

09263-14022

3
Out of stock

23

PLATE, CRANKSHAFT SET | FROM 12718-33000

12581-33000

1
Out of stock

24

SCREW This part replaces 02122-06128.

02122-06127

1
Out of stock

25

SCREW This part replaces 02112-06108.

02112-06107

1
Out of stock

26

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

27

C RING

09390-52002

1
Out of stock

28

GEAR, PRIMARY DRIVE | NT:24

21111-33001

1
Out of stock

29

NUT This part replaces 09140-18001.

09140-18501

1
Out of stock

30

WASHER

09166-18001

1
Out of stock

31

KEY

08341-31059

1
Out of stock

32

GEAR, BREAKER CAM DRIVE | SEE NOTE TO 12551-33001

12712-33010

—
Out of stock
