1972 Suzuki GT380 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1972 Suzuki GT380, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

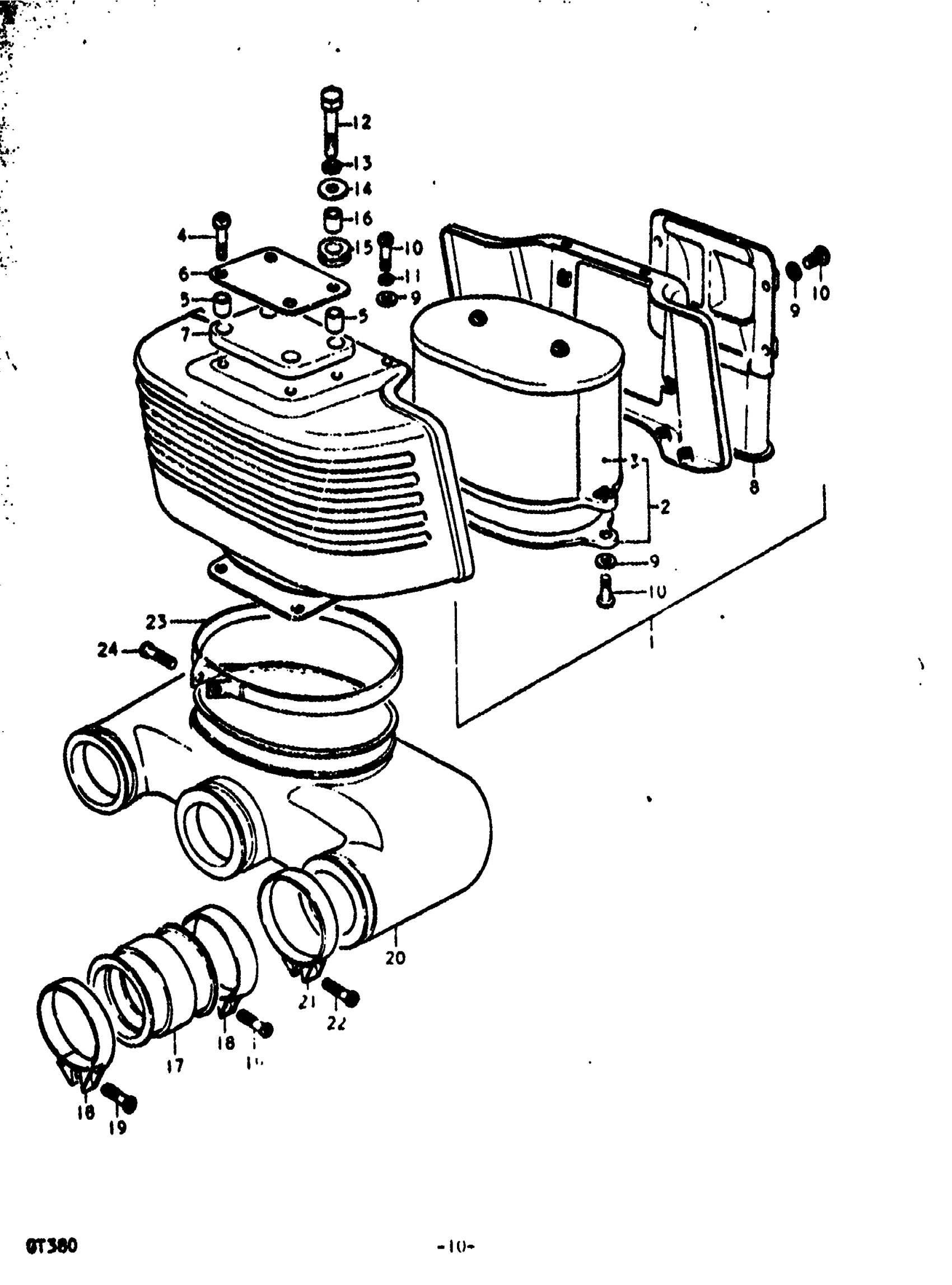

1972 Suzuki GT380 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 11

13700-33010

—
Out of stock

2

FILTER, AIR CLEANER

13780-33010

1
Out of stock

3

FILTER, AIR CLEANER This part replaces 13781-33010.

13780-33010

1
Out of stock

4

SCREW This part replaces 02112-06208.

02112-06207

2
Out of stock

5

SPACER

13793-33010

—
Out of stock

6

WASHER

13734-33010

—
Out of stock

7

CUSHION

13741-33010

—
Out of stock

8

INLET, AIR CLEANOR

13722-33010

1
Out of stock

9

WASHER This part replaces 08322-21048.

08322-01047

14
Out of stock

10

14

$1.33

In stock

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

10
Out of stock

12

BOLT, REAR This part replaces 01112-06308.

01500-06307

2
Out of stock

13

2

$2.28

In stock

14

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

2
Out of stock

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

16

SPACER (6.5X9X7) | 2 7x9x7 This part replaces 09180-07005.

09180-06259

1
Out of stock

17

PIPL, INTAKE | TO 13111-33100

13111-33000

—
Out of stock

18

CLAMP | FROM 09402-00228 This part replaces 09402-48303.

09402-48208

6
Out of stock

19

SCREW This part replaces 02111-04208.

02112-0420A

6
Out of stock

20

HOSE, CARBUR@TON AIR INLET | TO 13880-33002

13880-33001

—
Out of stock

21

CLAMP, INTER HOSE(1) | FROM 09407-00223

09402-52300

—
Out of stock

22

SCREW This part replaces 02111-04208.

02112-0420A

3
Out of stock

23

CLAMP, INLET HOSE (7) | FROM 09402-00227

09402-52306

1
Out of stock

24

SCREW

02111-04258

—
Out of stock
