1977 Suzuki GT250 Right Frame Cover Diagram

← All diagrams

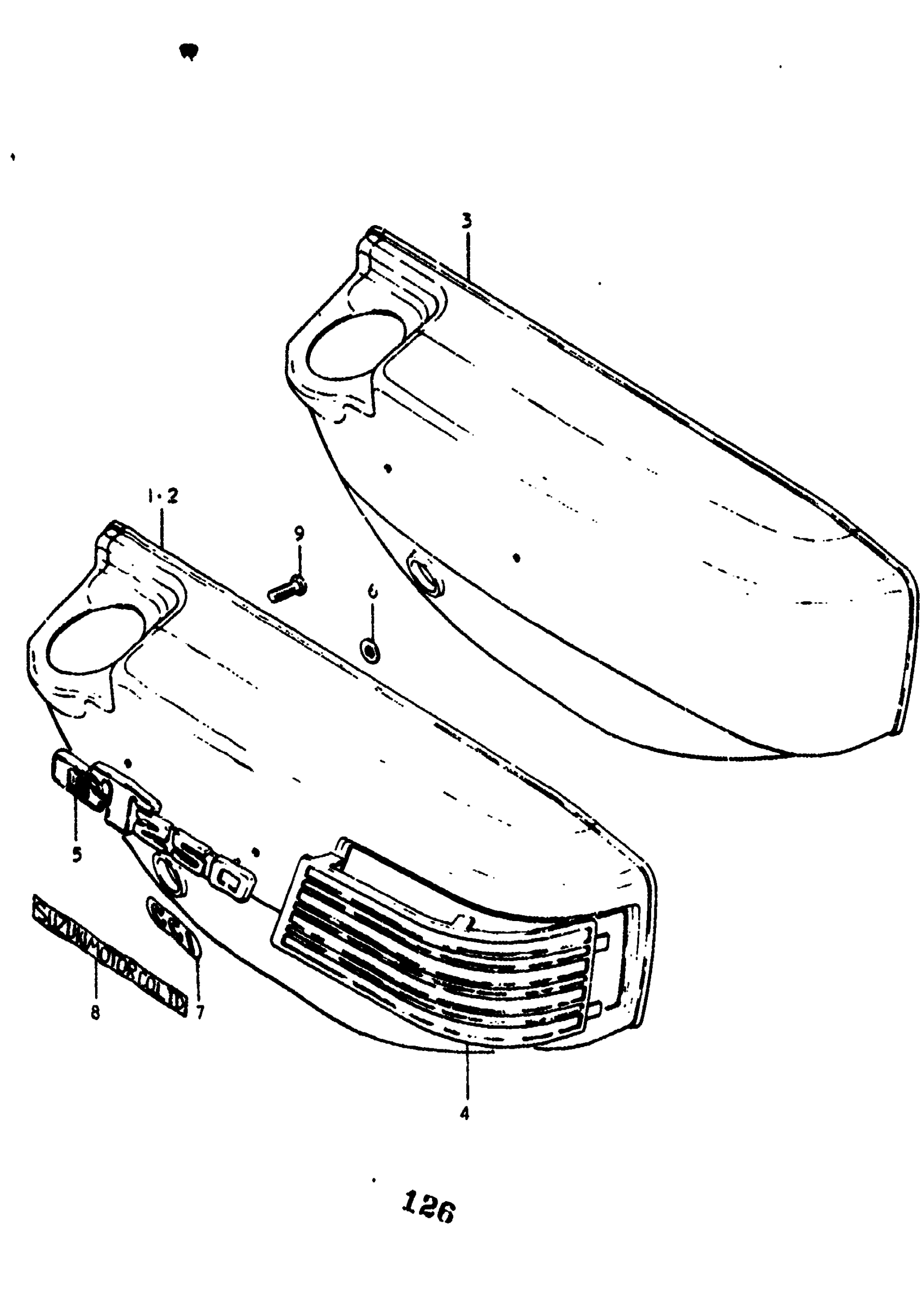

Find the part on the Right Frame Cover diagram for your 1977 Suzuki GT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT250 Right Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH | K

47111-18630-527

—
Out of stock

1

NO DESCRIPTION AVAILABLE | K; COLOR : SINGLE FROM 47111-18630-527 This part replaces 47111-18600-157.

47111-18600-019

1
Out of stock

1

COVER, FRAME RH | K

47111-18630-926

—
Out of stock

1

NO DESCRIPTION AVAILABLE | K; COLOR : SINGLE FROM 47111-18630-926 This part replaces 47111-18600-215.

47111-18600-019

1
Out of stock

1

COVER, FRAME RH | L

47111-18630-965

—
Out of stock

1

COVER, FRAME RH | L; COLOR : SINGLE FROM 47111-18630-965

47111-18600-715

—
Out of stock

1

COVER, FRAME RH | L

47111-18630-966

—
Out of stock

1

NO DESCRIPTION AVAILABLE | L; COLOR : SINGLE FROM 47111-18630-966 This part replaces 47111-18600-759.

47111-18600-019

1
Out of stock

1

NO DESCRIPTION AVAILABLE | L; COLOR : SINGLE This part replaces 47111-18600-279.

47111-18600-019

1
Out of stock

2

NO DESCRIPTION AVAILABLE | M This part replaces 47111-18600-288.

47111-18600-019

1
Out of stock

3

NO DESCRIPTION AVAILABLE | A This part replaces 47111-18601-00T.

47111-18601-019

1
Out of stock

3

NO DESCRIPTION AVAILABLE | B This part replaces 47111-18601-291.

47111-18601-019

1
Out of stock

4

ACCESSORY, FRAME RH COVER | K,L,M

47161-18630

1
Out of stock

5

EMBLEM | K,L,M,A,B; "GT250"

68141-18600

1
Out of stock

6

2

$2.25

In stock

7

EMBLEM, CCI | K,L,M,A,B

68171-26000

1
Out of stock

8

EMBLEM, COMPANY NAME | L,M,A,B

68363-26200

1
Out of stock

9

SCREW | K,L,M,A,B This part replaces 03241-05168.

03141-0516A

3
Out of stock
