1977 Suzuki GT250 Left Frame Cover Diagram

← All diagrams

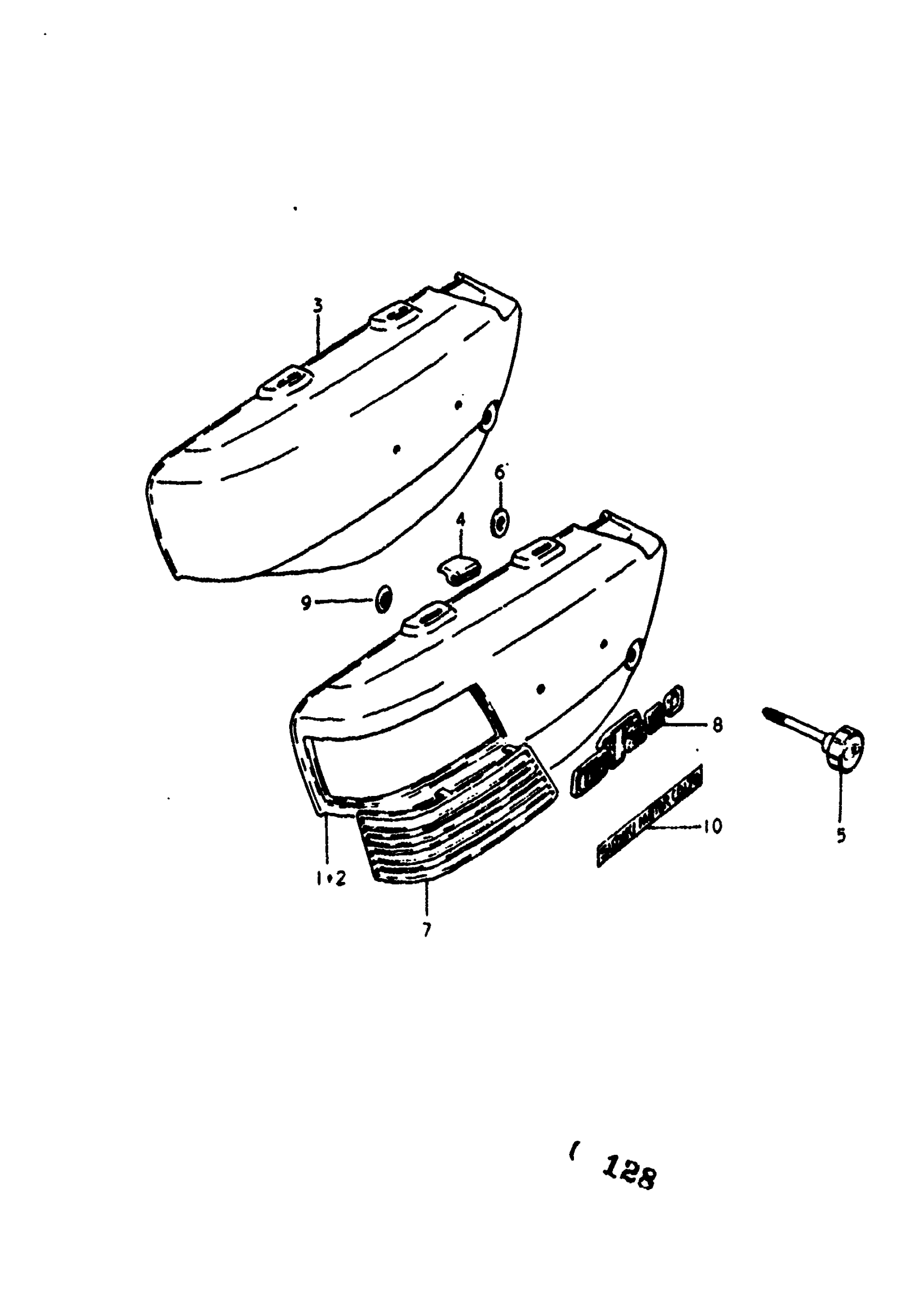

Find the part on the Left Frame Cover diagram for your 1977 Suzuki GT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT250 Left Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME LH | K

47211-18630-527

—
Out of stock

1

NO DESCRIPTION AVAILABLE | K; COLOR : SINGLE FROM 47211-18630-527 This part replaces 47211-18600-157.

47211-18600-019

1
Out of stock

1

COVER, FRAME LH | K

47211-18630-926

—
Out of stock

1

NO DESCRIPTION AVAILABLE | K; COLOR : SINGLE FROM 47211-18630-926 This part replaces 47211-18600-215.

47211-18600-019

1
Out of stock

1

COVER, FRAME LH | L

47211-18630-965

—
Out of stock

1

NO DESCRIPTION AVAILABLE | L; COLOR : SINGLE FROM 47211-18630-965 This part replaces 47211-18600-715.

47211-18600-019

1
Out of stock

1

COVER, FRAME LH | L

47211-18630-966

—
Out of stock

1

NO DESCRIPTION AVAILABLE | L; COLOR : SINGLE FROM 47211-18630-966 This part replaces 47211-18600-759.

47211-18600-019

1
Out of stock

1

NO DESCRIPTION AVAILABLE | L; COLOR : SINGLE This part replaces 47211-18600-279.

47211-18600-019

1
Out of stock

2

NO DESCRIPTION AVAILABLE | M This part replaces 47211-18600-288.

47211-18600-019

1
Out of stock

3

NO DESCRIPTION AVAILABLE | A This part replaces 47211-18601-00T.

47211-18601-019

1
Out of stock

3

NO DESCRIPTION AVAILABLE | B This part replaces 47211-18601-291.

47211-18601-019

1
Out of stock

4

CUSHION | K,L,M,A,B

09329-02001

1
Out of stock

5

KNOB, FRAME LEFT COVER | K,L,M,A; TO 47230-03002

47230-03001

—
Out of stock

5

KNOB, FRAME LEFT COVER | B

47230-03002

1
Out of stock

6

NUT | K,L,M,A,B

09152-06001

1
Out of stock

7

ACCESSORY, FRAME LEFT COVER | K,L,M

47261-18630

1
Out of stock

8

EMBLEM | K,L,M,A,B; "GT250"

68141-18600

1
Out of stock

9

2

$2.25

In stock

10

EMBLEM, COMPANY NAME | L,M,A,B

68363-26200

1
Out of stock
