1977 Suzuki GT250 Center Stand Diagram

← All diagrams

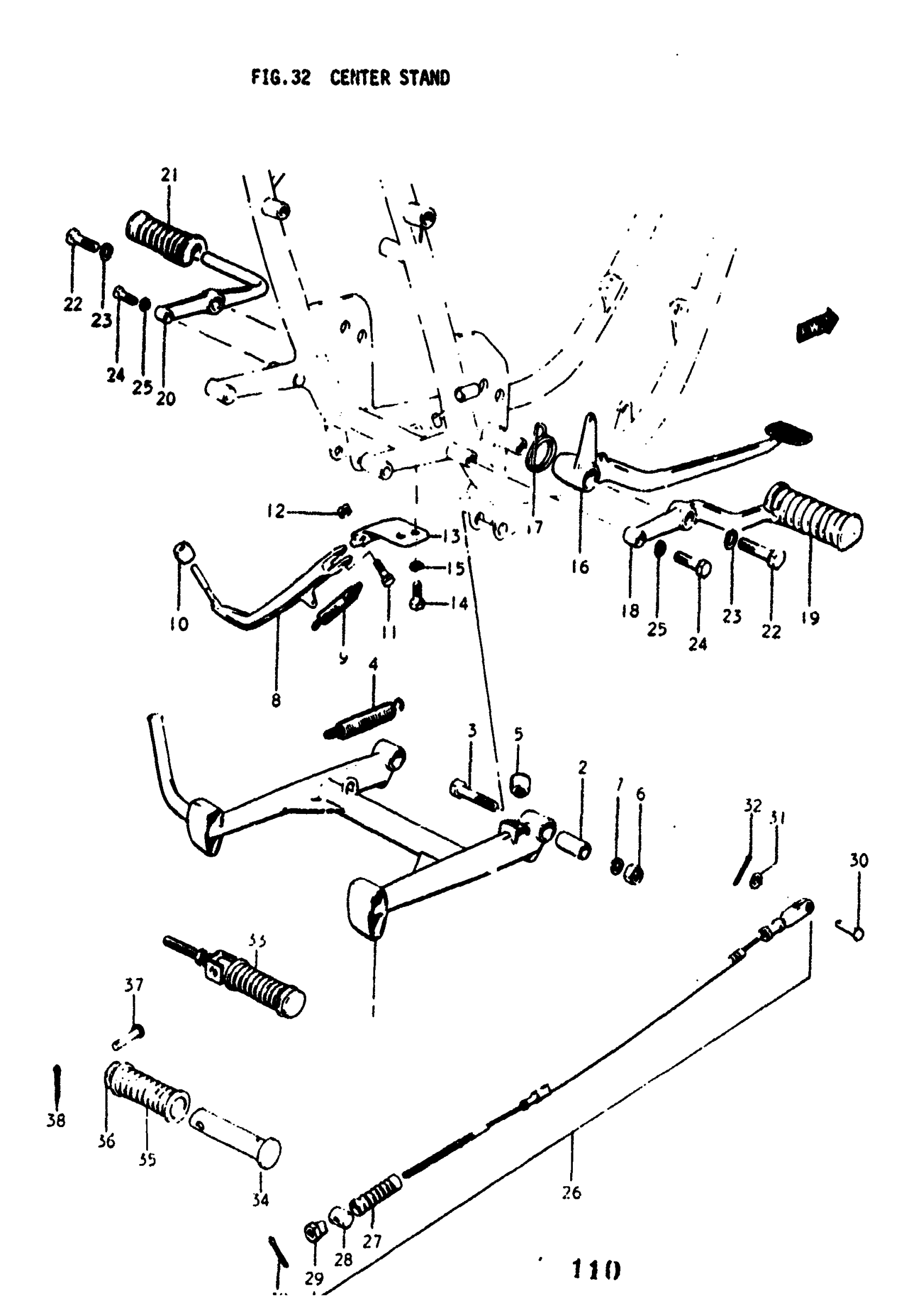

Find the part on the Center Stand diagram for your 1977 Suzuki GT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT250 Center Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER | K,L,M,A,B

42100-18600

1
Out of stock

2

SPACER | K,L,M,A,B; .10.4x16x30

09180-10001

2
Out of stock

3

BOLT | K,L,M,A,B; 10x48

09100-10006

2
Out of stock

4

SPRING | K,L,M,A,B This part replaces 09443-16005.

09443-16005-XC0

1
Out of stock

5

CUSHION | K,L,M,A,B

09321-10001

2
Out of stock

6

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

2
Out of stock

7

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

8

STAND, PROP | K,L,M,A,B

42310-08002

1
Out of stock

9

SPRING | K,L,M,A,B This part replaces 09443-14005.

09443-14017

1
Out of stock

10

CUSHION | K,L,M,A,B

09320-07001

1
Out of stock

11

BOLT | K,L,M,A,B; 10x27 This part replaces 09100-10007.

09100-10287

1
Out of stock

12

NUT | K,L,M,A,B This part replaces 08312-32108.

08310-00107

1
Out of stock

13

BRACKET, PROP STAND | K,L,M,A,B

42330-10001

1
Out of stock

14

BOLT | K,L,M,A,B This part replaces 01111-10258.

01500-10257

2
Out of stock

15

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

16

PEDAL, BRAKE | K,L,M,A,B

43110-18100

1
Out of stock

17

SPRING | K,L,M,A,B

09448-37008

1
Out of stock

18

BAR, FRONT FOOTREST RH | K,L,M,A,B

43511-10000

1
Out of stock

19

RUBBER, FRONT FOOTREST RH | K,L,M,A,B

43551-10000

1
Out of stock

20

BAR, FRONT FOOTREST LH | K,L,M,A,B

43515-10000

1
Out of stock

21

RUBBER, FRONT FOOTREST LH | K,L,M,A,B

43551-09000

1
Out of stock

22

BOLT, HANDLE HOLDER | K,L,M,A,B This part replaces 01122-10358.

01500-1035B

2
Out of stock

23

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

2
Out of stock

24

BOLT | K,L,M,A,B This part replaces 01122-08358.

01500-0835B

2
Out of stock

26

CABLE ASSY, REAR BRAKE | K,L,M,A,B; Includes Item(s) 27 - 29

58500-11000

1
Out of stock

27

BOOT | K,L,M,A,B

09287-05001

1
Out of stock

28

.PIN (13X18) | K,L,M,A,B This part replaces 09209-13003.

09209-13018

1
Out of stock

29

.NUT | K,L,M,A,B This part replaces 09150-06001.

09150-06010

1
Out of stock

30

PIN | K,L,M,A,B

09200-05001

1
Out of stock

31

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

1
Out of stock

32

.COTTER PIN | K,L,M,A,B This part replaces 04111-20158.

04111-2015A

2
Out of stock

33

FOOTREST ASSY,P | K,L This part replaces 43600-03001.

43600-09D00

2
Out of stock

34

BAR, PILION FOOTREST | M,A,B

43610-03001

2
Out of stock

35

RUBBER, PILION FOOTREST | M,A,B

43612-03001

2
Out of stock

36

WASHER | M,A,B; 19.5x32x2 This part replaces 09160-19006.

09160-19024

2
Out of stock

37

PIN | M,A,B

09200-06010

2
Out of stock

38

COTTER PIN | M,A,B This part replaces 04111-20208.

04111-2020A

2
Out of stock
