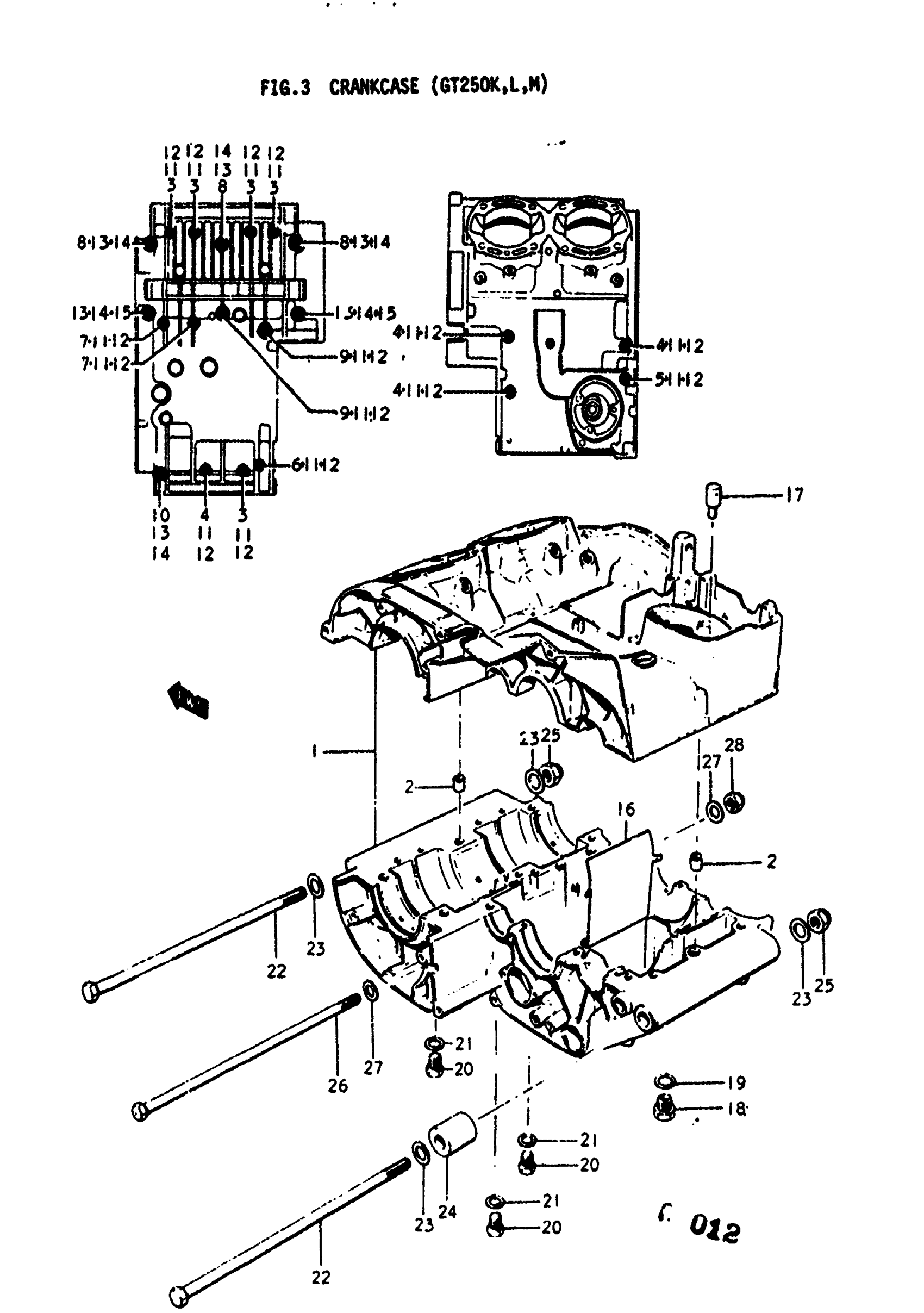

Suzuki GT250 (1977) CRANKCASE (GT250K Diagram

NO DESCRIPTION AVAILABLE | K,L; TO 11300-18831 USED WITH 09262-20033 AND 09390-52002 This part replaces 11300-18830.

11300-18832

Unavailable

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 2 - 15 This part replaces 11300-18831.

11300-18832

Unavailable

PIN | K,L,M

04211-11129

$1.77

BOLT | K,L,M This part replaces 01112-06558.

01500-0655B

$1.89

BOLT (6X60) | K,L,M This part replaces 01112-06608.

09103-06064

$2.13

BOLT 6X50 | K,L,M This part replaces 01112-06658.

09100-06038

Unavailable

BOLT | K,L,M This part replaces 01112-06808.

01500-0685B

$4.18

BOLT | K,L,M This part replaces 01112-06858.

01500-0685B

$4.18

BOLT | K,L,M This part replaces 01122-08658.

01500-0865B

$3.19

BOLT | K,L,M This part replaces 01122-08708.

01500-0870B

$4.45

BOLT | K,L,M This part replaces 01122-08758.

01500-0875B

$4.45

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$1.83

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$1.86

.LOCK WASHER | K,L,M This part replaces 08321-21088.

08321-01087

$1.83

WASHER | K,L,M This part replaces 08322-11088.

08322-01087

$1.86

BOLT | K,L,M; 8x100

09100-08023

Unavailable

DEFLECTOR, BREATHER | K,L,M

24829-18000

Unavailable

PLUG, BREATHER | K,L,M This part replaces 24821-09000.

24821-09001

$10.25

PLUG (MAGNETO) | K,L,M This part replaces 09247-14001.

09247-14002

$4.73

GASKET, DRAIN PLUG | K,L,M; 15.7x19.5x2

09168-14004

$1.69

PLUG, DRAIN | K,L,M

09247-10001

$2.06

GASKET, DRAIN PLUG | K,L,M; 10x14.2x2

09168-10002

$1.96

BOLT | K,L,M; 12x220

09104-12105

Unavailable

WASHER | K,L,M This part replaces 08322-11128.

08322-01127

$1.86

SPACER | K,L,M; L:30.4

09180-12028

Unavailable

NUT | K,L,M

09159-12102

$2.95

BOLT (10x220) | K,L,M; 10x220 This part replaces 09100-10036.

09100-10170

Unavailable

WASHER | K,L,M This part replaces 08322-11108.

08322-01107

$1.88

NUT | K,L,M

09159-10011

$2.95
