KICK STARTER

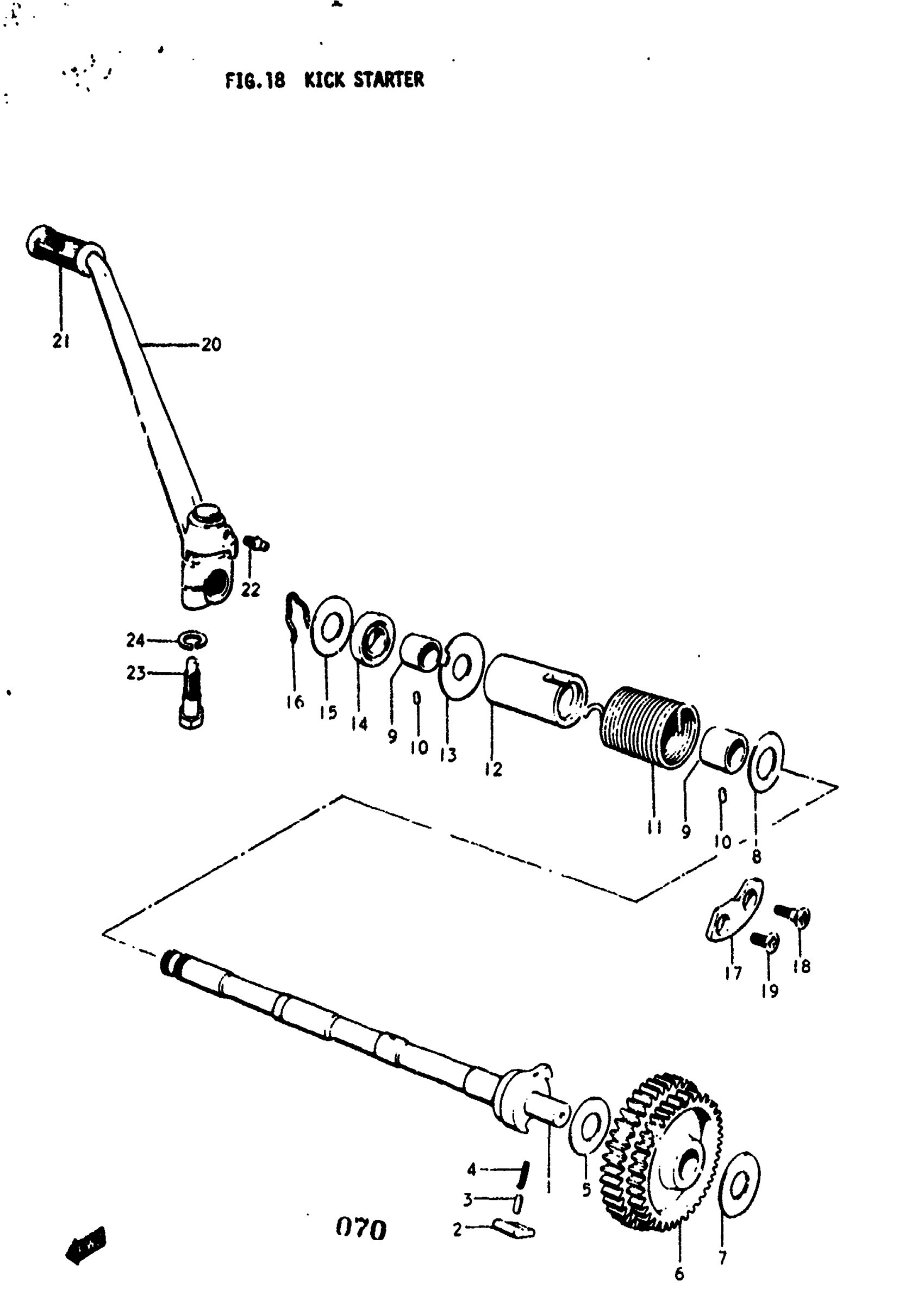

Suzuki GT250 (1977) KICK STARTER Diagram
#
Description
Price
1
SHAFT, KICK STARTER | K,L,M,A,B
26211-18000
Unavailable
2
PAWL, KICK STARTER | K,L,M,A,B
26231-20000
Unavailable
3
PIN | K,L,M,A,B
09209-05011
Unavailable
4
SPRING | K,L,M,A,B
09440-04010
Unavailable
5
WASHER | K,L,M,A,B; 13x31.5x1.5
09160-13002
Unavailable
6
GEAR, KICK STARTER DRIVE | K,L; NT:39/34 TO 26240-18002 This part replaces 26240-18001.
26240-18002
Unavailable
6
GEAR, KICK STARTER DRIVE | M,A,B; NT:39/34
26240-18002
Unavailable
7
WASHER, DRIVE GEAR | K; 13x31.5x1.3 This part replaces 09160-13005.
09160-13002
Unavailable
8
WASHER | K,L,M,A,B; 16x30.5x1
09160-16003
Unavailable
9
BUSHING | K,L,M,A,B; 16x22x17.5
09300-16002
Unavailable
10
PIN | K,L,M,A,B This part replaces 06211-04063.
04221-04069
Unavailable
11
SPRING | K,L,M,A,B
09448-37001
Unavailable
12
GUIDE, SPRING | K,L,M,A,B
26221-11000
Unavailable
13
WASHER | K,L,M,A,B; 16x38x1.2
09166-16001
Unavailable
14
SEAL,OIL(16X30X | K,L,M,A,B; 16x30x8 This part replaces 09285-16002.
09285-16005
Unavailable
15
WASHER | K,L,M,A,B; 16x33x1.6
09160-16002
Unavailable
16
CLIP | K,L,M,A,B
09384-16001
Unavailable
17
REFIER, KICK STARTER PAWL | K,L,M,A,B
26232-11000
Unavailable
18
SCREW | K,L,M,A,B
09139-06002
Unavailable
19
SCREW | K,L,M,A,B This part replaces 02122-06166.
02122-0616A
Unavailable
20
LEVER ASSY, KICK STARTER | K,L,M,A,B; Includes Item(s) 21 - 22
26300-15000
Unavailable
21
RUBBER,KICK STA | K,L,M,A,B This part replaces 26352-01000.
26352-01020
Unavailable
22
NIPPLE, GREASE | K,L
08351-11009
Unavailable
23
BOLT | K,L,M,A,B
09135-10002
Unavailable
24
LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.
08321-01107
Unavailable
