1977 Suzuki GT250 Crankcase Cover Diagram

← All diagrams

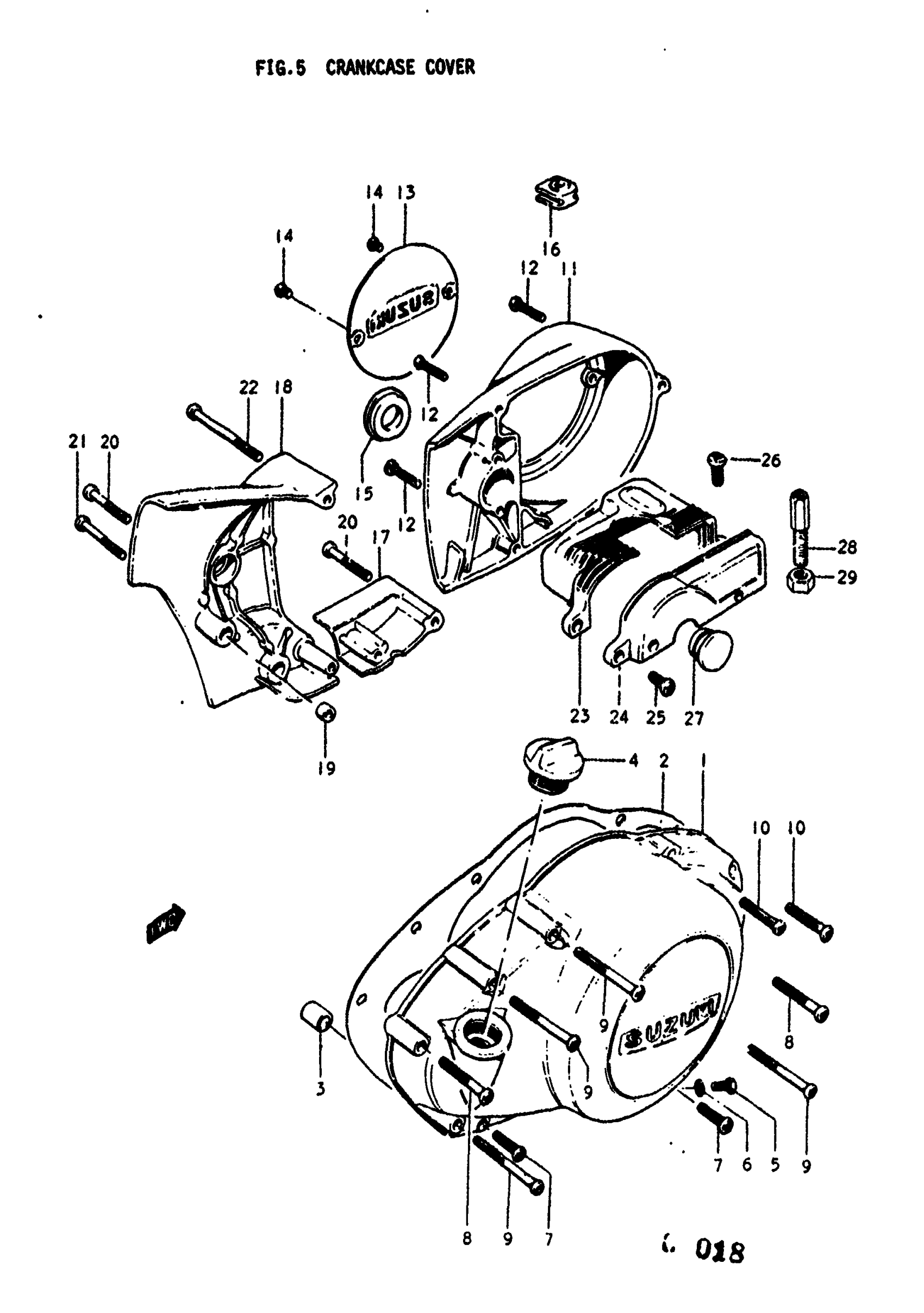

Find the part on the Crankcase Cover diagram for your 1977 Suzuki GT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH | K,L; TO 11341-18102 USED WITH 09259-19002

11341-18101

—
Out of stock

1

COVER, CLUTCH | M,A; TO 11341-18103 USED WITH 09259-20003 This part replaces 11341-18102.

11341-18103

1
Out of stock

1

COVER, CLUTCH | A,B

11341-18103

1
Out of stock

2

GASKET,CLUTCH C | K,L,M,A,B This part replaces 11482-18000.

11482-18001

1
Out of stock

3

PIN | K,L,M,A,B

04211-09129

2
Out of stock

4

PLUG SET | K,L,A,B; SCREW TYPE This part replaces 09259-20003.

09200-20811

1
Out of stock

4

PLUG | M,A This part replaces 09259-19001.

09259-19005

1
Out of stock

5

SCREW (6X10) | K,L,M,A,B This part replaces 09128-06004.

09128-06044

1
Out of stock

6

GASKET | K,L,M,A,B; 6.2x11x1

09168-06001

1
Out of stock

7

SCREW | K,L,M,A,B This part replaces 02112-06208.

02112-06207

2
Out of stock

8

SCREW (6X40) | K,L,M,A,B This part replaces 02112-06408.

02112-06407

2
Out of stock

9

6X50 CROSS SCRE | K,L,M,A,B This part replaces 02112-06508.

02112-06507

4
Out of stock

10

SCREW | K,L,M,A,B

02112-06307

2
Out of stock

11

COVER, GENERETOR | K,L,M,A,B

11351-18100

1
Out of stock

12

SCREW | K,L,M,A,B

02112-06307

3
Out of stock

13

CAP, GENERATOR INSPECTION | K,L,M,A,B

11381-18100

1
Out of stock

14

2

$1.55

In stock

15

CAP, CLUTCH RELEASE | K,L,M,A,B

09250-30003

1
Out of stock

16

HOLDER, CLUTCH CABLE ADJUSTER | K,L,M,A,B

11371-10000

1
Out of stock

17

COVER, GEAR SHIFTING SWITCH | K,L,M,A,B

11461-18000

—
Out of stock

18

COVER, ENGINE SPROCKET | K,L,M,A,B

11361-18100

1
Out of stock

19

PIN | K,L,M,A,B

04211-09129

1
Out of stock

20

SCREW (6X45) | K,L,M,A,B This part replaces 02112-06458.

02112-06457

3
Out of stock

21

6X50 CROSS SCRE | K,L,M,A,B This part replaces 02112-06508.

02112-06507

1
Out of stock

22

SCREW | K,L,M,A,B This part replaces 02112-06808.

02112-06807

1
Out of stock

23

COVER, OIL PUMP (1) | K,L,M,A,B

11411-18000

1
Out of stock

24

COVER, OIL PUMP (2) | K,L,M,A

11412-18000

1
Out of stock

25

SCREW | K,L,M,A,B This part replaces 02112-05168.

02112-05167

2
Out of stock

26

SCREW | K,LM,A,B This part replaces 02111-05127.

02112-05127

2
Out of stock

27

CAP, OIL PUMP COVER | K,L,M,A,B

09250-20003

1
Out of stock

28

BOLT, OIL PUMP CABLE ADJUSTER | K,L,M,A,B

09119-08014

1
Out of stock

29

1

$1.93

In stock
