1977 Suzuki GT185 Wiring Harness Diagram

← All diagrams

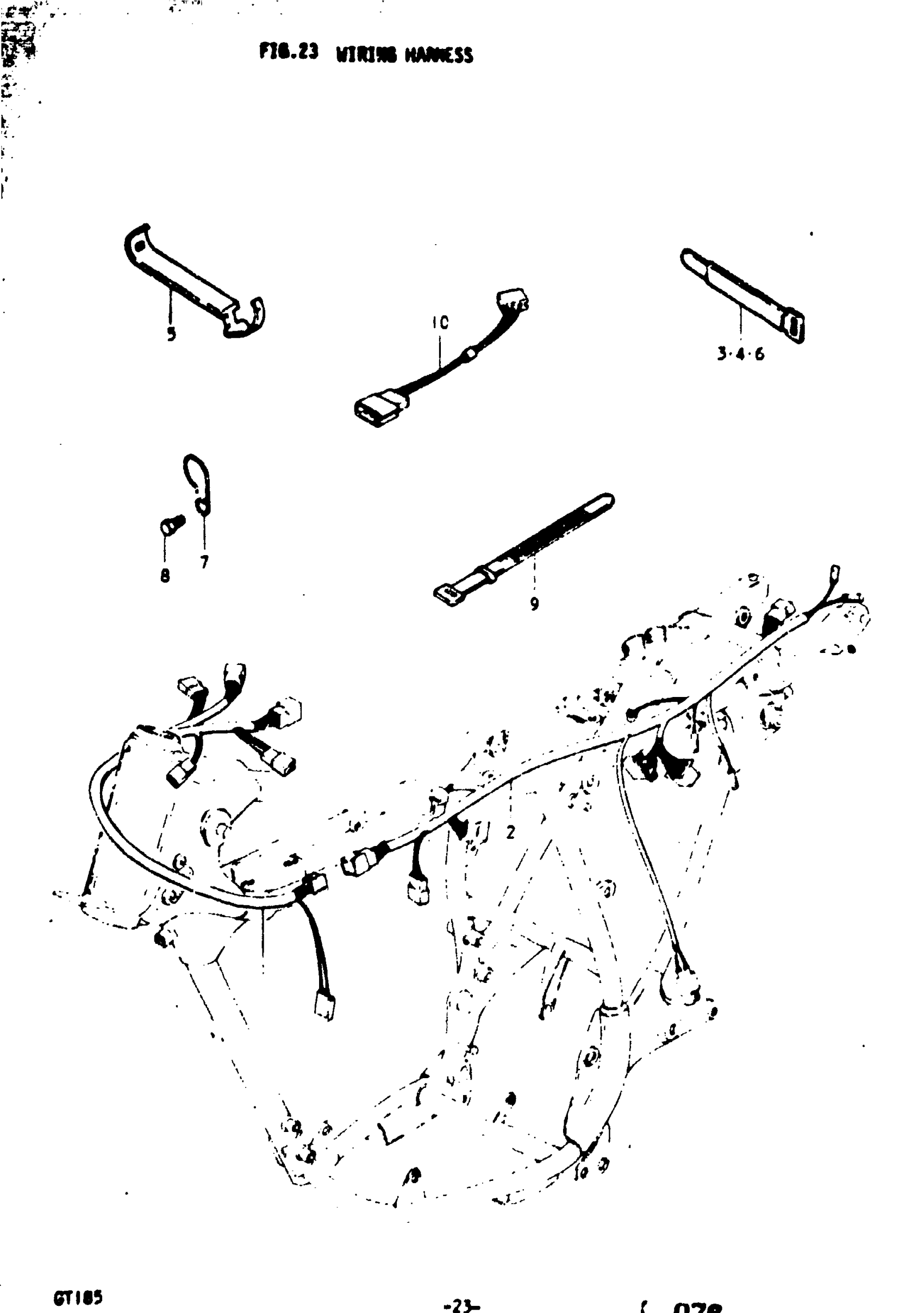

Find the part on the Wiring Harness diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Suzuki GT185 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS A | K,L; TO 36610-36700

36610-36100

—
Out of stock

1

WIRING HARNESS A | L,M; TO 36610-36102 USED WITH 38851-36700

36610-36700

—
Out of stock

1

WIRING HARNESS A | A,B

36610-36102

1
Out of stock

2

WIRING HARNESS B | K,L; TO 36620-36701

36620-36100

—
Out of stock

2

WIRING HARNESS B | L,M,A,B; FROM 36620-36701

36620-36101

1
Out of stock

3

CLAMP | K,L,M,A; L:14C This part replaces 09407-14301.

09407-18302

1
Out of stock

4

CLAMP | K,A,B; L:110L,M; L:110 This part replaces 09407-11302.

09407-18302

7
Out of stock

5

BAND, WIRING HARNESS | K,L,M

33881-22200

1
Out of stock

6

CLAMP | K,L,M,A,B; L:180 This part replaces 09407-18301.

09407-18302

2
Out of stock

7

CLIP, WIRING HARNESS | K,L,M,A,B

36619-28000

1
Out of stock

8

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

1
Out of stock

9

CLAMP | L,M,A,B; L:120

09407-12402

1
Out of stock

10

LEAD WIRE | K,L

36851-36700

1
Out of stock
