1977 Suzuki GT185 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1977 Suzuki GT185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

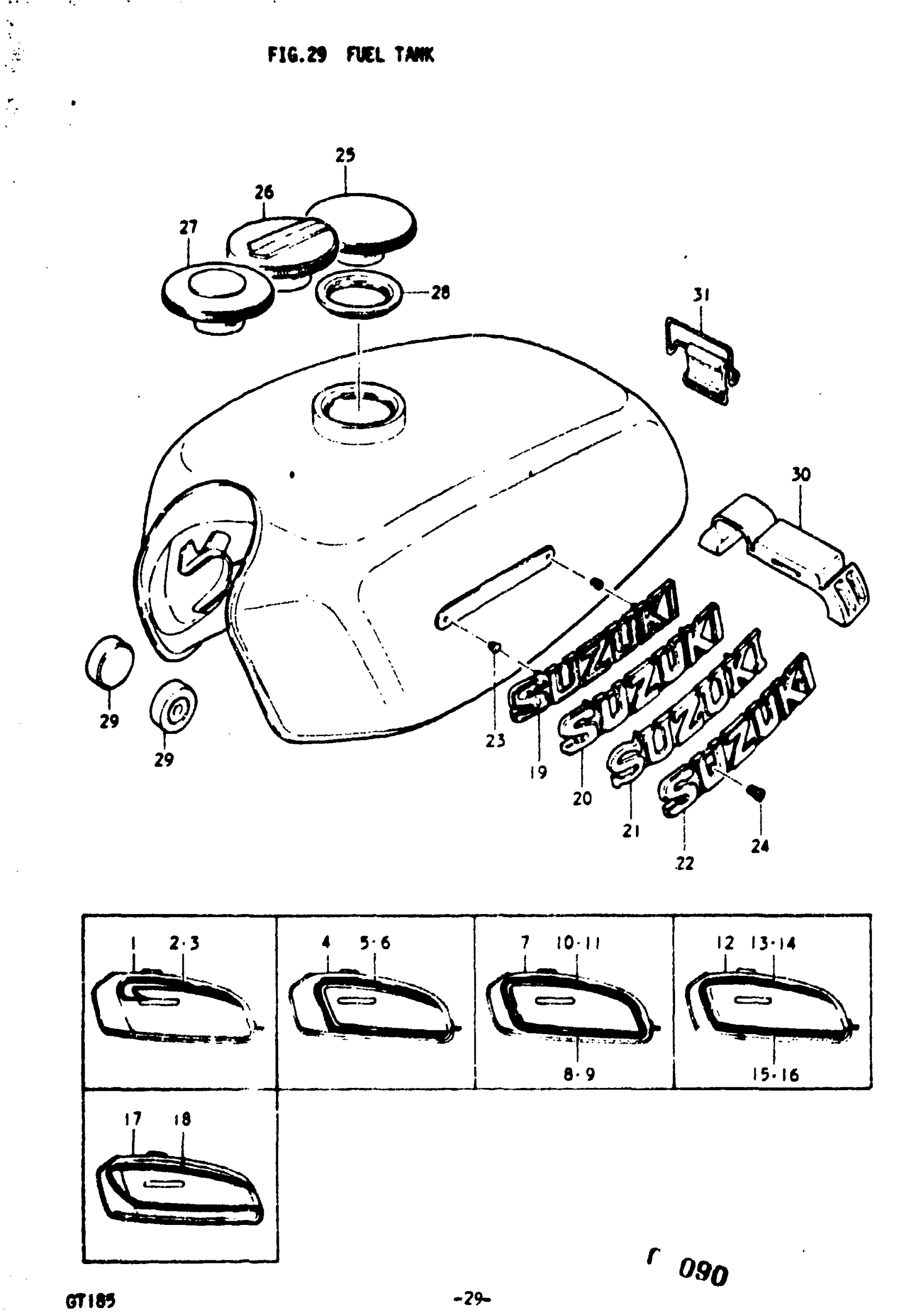

1977 Suzuki GT185 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | K; TO 44110-36301-279; Includes Item(s) 2 - 3 This part replaces 44100-36810-279.

44100-36812-279

1
Out of stock

2

NO DESCRIPTION AVAILABLE | K; TO 68100-36810-743 This part replaces 68115-36100-743.

68100-36810-743

1
Out of stock

3

NO DESCRIPTION AVAILABLE | K; TO 68100-36810-743 This part replaces 68125-36100-743.

68100-36810-743

1
Out of stock

4

NO DESCRIPTION AVAILABLE | L; TO 44110-36301-758 USED WITH 44710-23300 AND 85413-70000. This part replaces 44110-36300-758.

44110-36302-737

1
Out of stock

4

TANK, FUEL | L; TO 44110-36302-758 USED WITH 68111-34000 (2PC) AND 09127-03002 (4PC); Includes Item(s) 5 - 6

44110-36301-758

—
Out of stock

5

NO DESCRIPTION AVAILABLE | L; TO 68100-36830-064 This part replaces 68115-36300-064.

68100-36830-064

—
Out of stock

6

TAPE, STRIPING LH | L; TO 68100-36830-064

68125-36300-064

—
Out of stock

7

TANK, FUEL | M; TO 44110-36601-293 USED WITH 68111-34000(2PC) AND 09127-03002 (4PC) This part replaces 44110-36600-293.

44110-36601-293

—
Out of stock

7

TANK, FUEL | M; Includes Item(s) 8 - 11

44110-36601-293

—
Out of stock

8

TAPE, STRIPING (1) RH | M; TO 68100-36841-742

68115-36601-742

—
Out of stock

9

TAPE, STRIPING (1) LH | M; TO 68100-36841-742

68125-36601-742

—
Out of stock

10

TAPE, STRIPING (2) RH | M; TO 68100-36841-742

68116-36601-742

—
Out of stock

11

TAPE, STRIPING (2) LH | M; TO 68100-36841-742

68126-36601-742

—
Out of stock

12

TANK, FUEL | A; Includes Item(s) 13 - 16

44110-36620-00N

—
Out of stock

13

TAPE, STRIPING (1) RH | A; TO 68100-36850-019

68115-36610-019

—
Out of stock

14

TAPE, STRIPING (1) LH | A; TO 68100-36850-019

68125-36610-019

—
Out of stock

15

TAPE, STRIPING (2) RH | A; TO 68100-36850-019

68116-36610-019

—
Out of stock

16

TAPE, STRIPING (2) LH | A; TO 68100-36850-019

68126-36610-019

—
Out of stock

17

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 18 This part replaces 44110-36640-03H.

44110-36640-737

1
Out of stock

18

TAPE SET | B

68100-36870-61R

1
Out of stock

19

EMBLEM, FUEL TANK | K

68111-33000

2
Out of stock

20

EMBLEM, FUEL TANK | L

68111-33001

2
Out of stock

21

EMBLEM, FUEL TANK | M; TO 68111-33001 This part replaces 68111-33002.

68111-33001

2
Out of stock

22

EMBLEM, FUEL TANK | A,B

68111-34000

2
Out of stock

23

NUT, FUEL TANK EMBLEM | K,L,M

09148-04005

4
Out of stock

24

SCREW | A,B This part replaces 09127-03002.

02122-0306B

4
Out of stock

25

CAP, FUEL TANK | K This part replaces 44210-11000.

44210-36200

1
Out of stock

26

CAP, FUEL TANK | L

44210-36200

1
Out of stock

27

CAP FUEL TANK | M,A,B This part replaces 44210-23300.

44200-23810

1
Out of stock

28

GASKET, FUEL TANK CAP | K,L; ID:40, OD:60

44248-11000

1
Out of stock

28

GASKET, FUEL TANK CAP | L,M,A,B; ID:33, OD:56

85413-70000

1
Out of stock

29

CUSHION | K,L,M,A,B This part replaces 09329-10007.

09329-10026

2
Out of stock

30

CUSHION, FUEL TANK REAR | K,L,M,A,B

44541-36000

1
Out of stock

31

BAND | K,L,M,A,B

09462-00049

1
Out of stock
