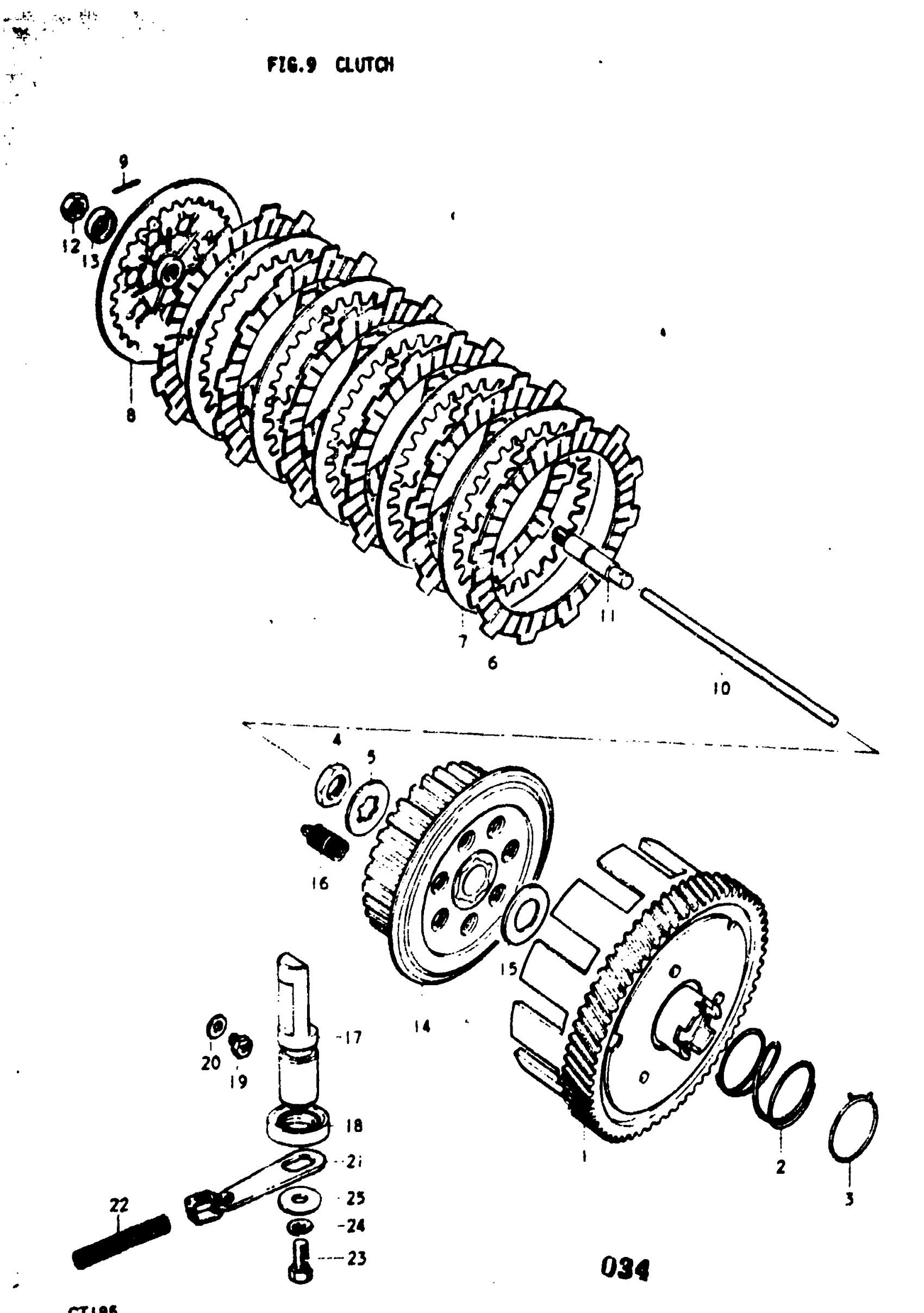

Suzuki GT185 (1977) CLUTCH Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | K,L,M; NT:61 TO 21200-36810 This part replaces 21200-36000.
21200-36002
Unavailable
1
NO DESCRIPTION AVAILABLE | A,B; NT:61 This part replaces 21200-36001.
21200-36002
Unavailable
2
SPRING | K,L,M
09440-32001
Unavailable
3
CLIP | A,B; FROM 09401-25401
09380-30001
Unavailable
4
NUT | K,L,M,A,B This part replaces 09140-16001.
09140-16005
Unavailable
5
WASHER | K,L,M,A,B
09167-17002
Unavailable
6
PLATE, CLUTCH DRIVE | K,L,M,A,B This part replaces 21441-28300.
21441-13A01
Unavailable
7
PLATE, CLUTCH DRIVEN (T:1.6) | K,L,M,A,B This part replaces 21451-28000.
21451-19A00
Unavailable
8
PLATE, CLUTCH PRESSURE | K,L,M This part replaces 21460-36000.
21460-36001
Unavailable
8
PLATE, CLUTCH PRESSURE | A,B; FROM 21460-36000
21460-36001
Unavailable
9
PIN | K,L,M,A,B
09261-02001
Unavailable
10
ROD, CLUTCH PUSH | K,L,M,A,B
23111-18001
Unavailable
11
SHAFT, CLUTCH RELEASE | K,L,M,A,B
23121-36000
Unavailable
12
NUT | K,L,M,A,B This part replaces 08312-32108.
08310-00107
Unavailable
13
OIL SEAL | K,L,M,A,B
09284-08001
Unavailable
14
HUB, CLUTCH SLEEVE | K,L,M,A,B
21410-29000
Unavailable
15
WASHER | K,L,M,A,B; 17x28x1.5
08211-17282
Unavailable
16
SPRING | K,L,M,A,B
09443-12018
Unavailable
17
CAM SHAFT, CLUTCH RELEASE | K,L,M,A,B
23122-36000
Unavailable
18
OIL SEAL | K,L,M,A,B; 22x30x8
09283-22011
Unavailable
19
BOLT (6X10) | K,L,M,A,B This part replaces 09135-06002.
09135-06501
Unavailable
20
WASHER | K,L,M,A,B This part replaces 08322-21068.
08322-01067
Unavailable
21
ARM, CLUTCH RELEASE | K,L,M,A,B
23220-36000
Unavailable
22
SPRING | K,L,M,A,B This part replaces 09440-08001.
09440-08026
Unavailable
25
WASHER | K,L,M,A,B; 8.2x24x1.6 This part replaces 09160-08021.
09160-08130
Unavailable
