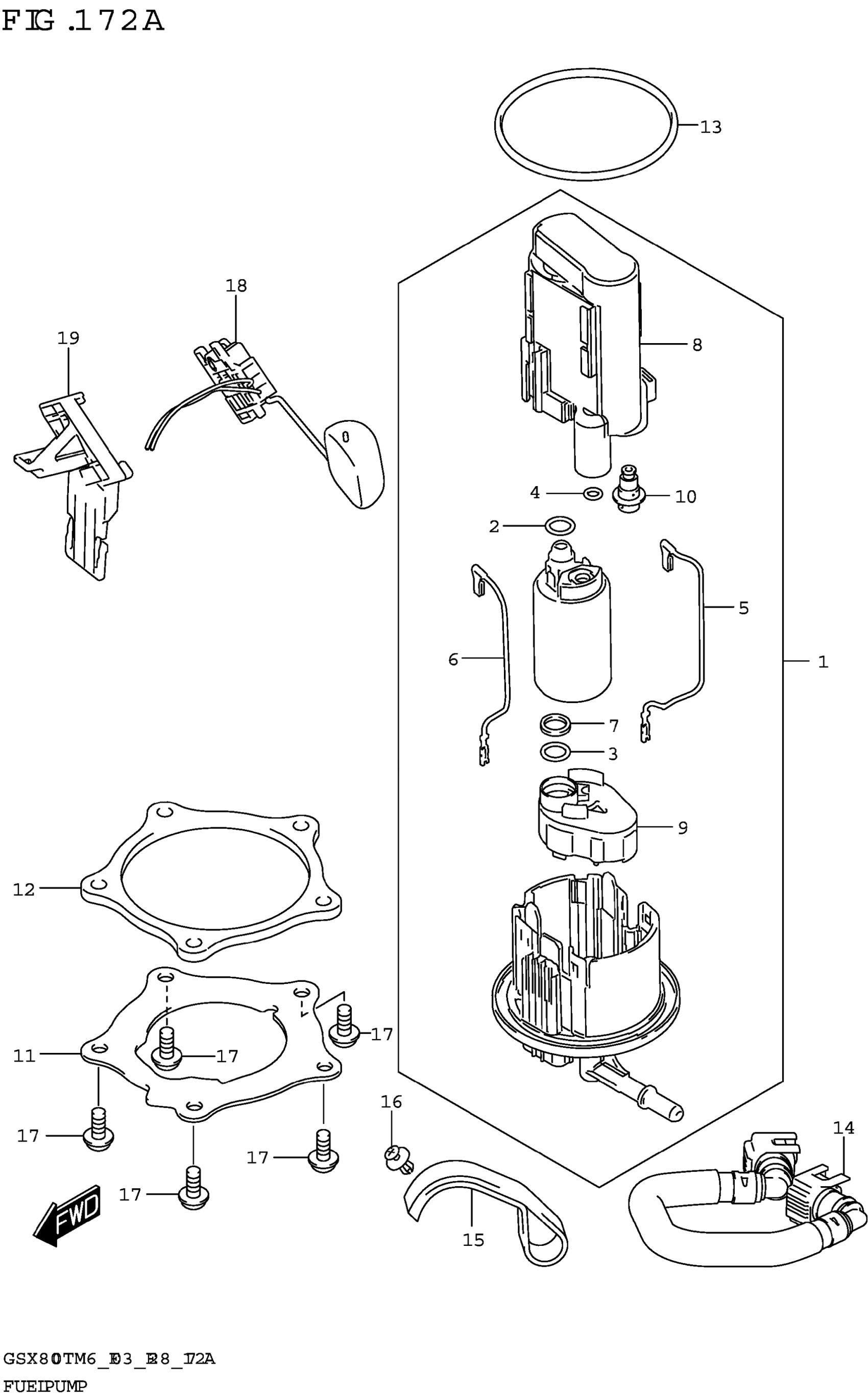

Suzuki GSX800TRQBM6 (2026) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-25L10

$383.57

2

.O-RING

15113-05H00

$19.66

3

.O-RING

15113-17K00

$35.95

4

.O-RING

15113-35F00

$8.52

5

.WIRE,EARTH

15114-17K00

$45.18

6

.WIRE,LEAD

15115-17K00

$45.18

7

.COLLAR

15116-17K00

$20.62

8

.FILTER

15310-17K00

$74.75

9

.STRAINER

15420-17K00

$97.36

10

.REGULATOR

15610-17K50

$172.38

11

PLATE,FUEL PUMP OUTER

15121-25L00

$11.66

12

PLATE,FUEL PUMP INNER

15122-17K00

$49.37

13

O-RING,FUEL PUMP

15201-07L00

$20.08

14

HOSE,FUEL

15810-25L00

$167.00

15

CLAMP,FUEL HOSE

15821-25L00

$4.47

16

CLIP

09409-06347

$2.20

17

BOLT

07120-0616A

$2.64

18

GAUGE ASSY,FUEL LEVEL SENDER

34810-47L00

$122.47

19

ATTACHMENT,FUEL LEVEL SENDER

34815-25L00

$3.72
