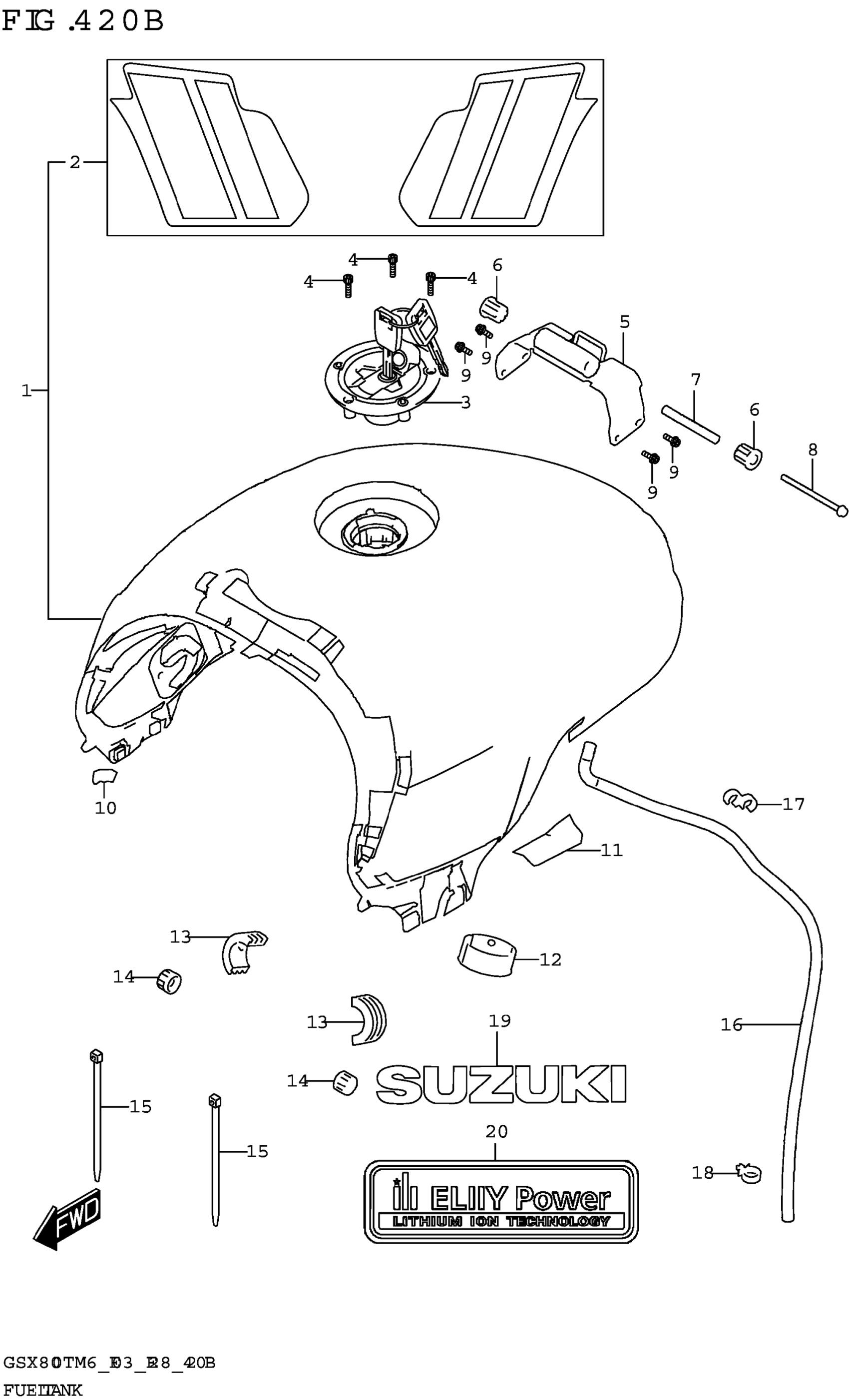

Suzuki GSX800TRQBM6 (2026) FUEL TANK (GSX800TTRQB) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:YVB

44100-47L10-YVB

$860.68

1-2

TANK ASSY,FUEL (GREEN) | BODY COLOR:QU5

44100-47L20-QU5

$860.68

2-1

.TAPE SET,FUEL TANK | BODY COLOR:YVB

68110-47L00-C7E

Unavailable

2-2

.TAPE SET,FUEL TANK | BODY COLOR:QU5

68110-47L10-C7F

Unavailable

3

CAP SET,FUEL TANK FILLER

44200-17850

$161.75

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

BRACKET,FUEL TANK REAR

44550-47L00

$43.47

6

CUSHION,FUEL TANK REAR

44541-47L00

$5.80

7

SPACER,FUEL TANK REAR

44561-47L00

$6.07

8

BOLT

07120-0695A

$2.40

9

BOLT

07120-0612B

$2.80

10

MOLDING,FUEL TANK

44552-24B20

$7.82

11

PROTECTOR, FUEL TANK

44283-06J00

$6.90

12

VESSEL,FUEL TANK INNER

44121-07L00

$18.80

13

CUSHION,FUEL TANK SIDE

44541-25L00

$6.92

14

CUSHION,FUEL TANK FRONT

44542-25L00

$5.08

15

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

16

HOSE,FUEL TANK DRAIN

44423-25L00

$16.45

17

CLAMP (ID:11.8X2)

09408-00043

Unavailable

18

CLAMP

09403-16412

$3.08

19

EMBLEM,"SUZUKI"

68111-47L10

$66.28

20

EMBLEM

68111-47L20

$6.62
