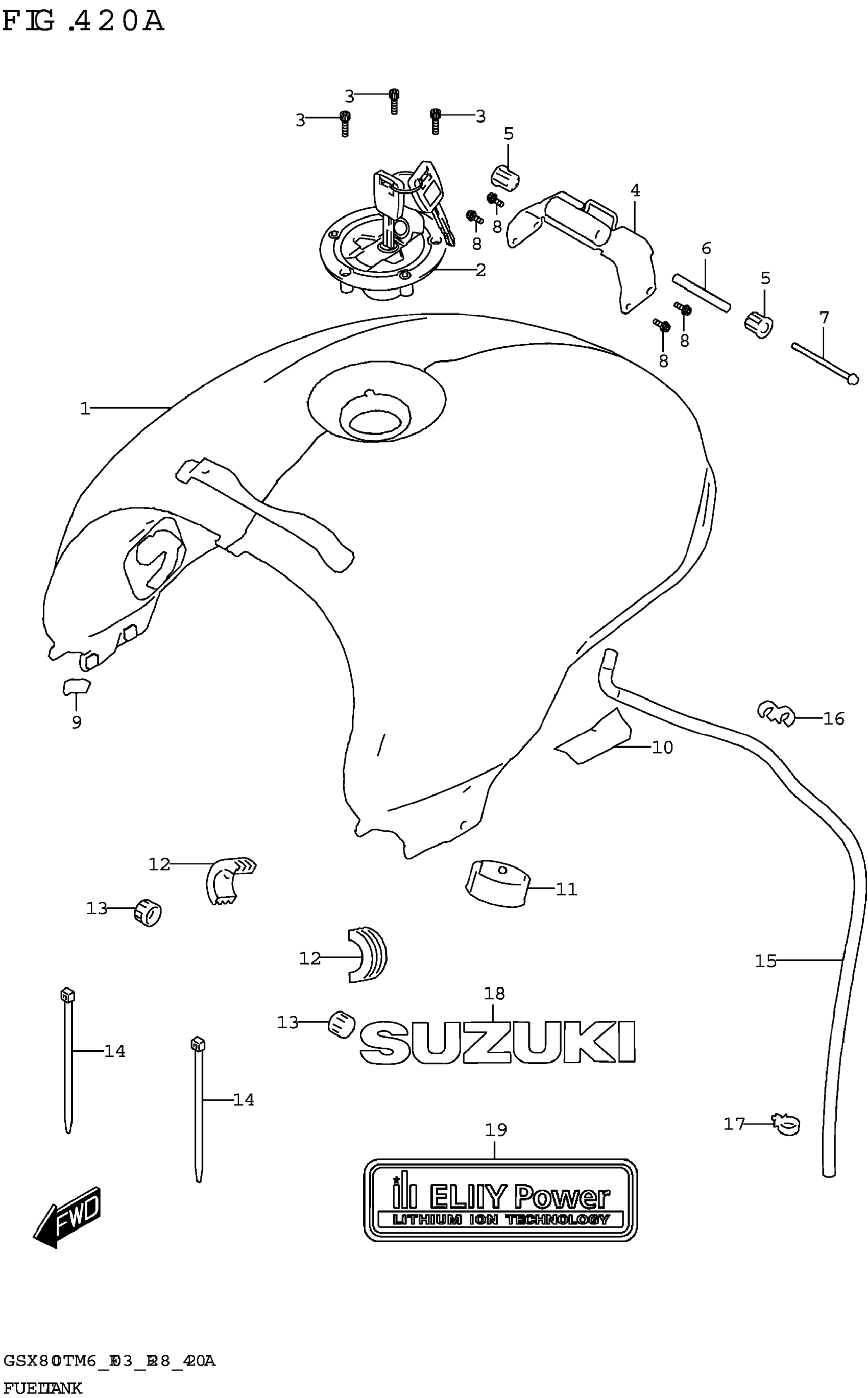

Suzuki GSX800TRQBM6 (2026) FUEL TANK (GSX800TRQ) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:YKV

44100-47L00-YKV

$860.68

1-2

TANK ASSY,FUEL (GREEN) | BODY COLOR:QVP

44100-47L00-QVP

Unavailable

1-3

TANK ASSY,FUEL (GOLD) | BODY COLOR:QSY

44100-47L00-QSY

$860.68

2

CAP SET,FUEL TANK FILLER

44200-17850

$161.75

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

BRACKET,FUEL TANK REAR

44550-47L00

$43.47

5

CUSHION,FUEL TANK REAR

44541-47L00

$5.80

6

SPACER,FUEL TANK REAR

44561-47L00

$6.07

7

BOLT

07120-0695A

$2.40

8

BOLT

07120-0612B

$2.80

9

MOLDING,FUEL TANK

44552-24B20

$7.82

10

PROTECTOR, FUEL TANK

44283-06J00

$6.90

11

VESSEL,FUEL TANK INNER

44121-07L00

$18.80

12

CUSHION,FUEL TANK SIDE

44541-25L00

$6.92

13

CUSHION,FUEL TANK FRONT

44542-25L00

$5.08

14

CLAMP This part replaces 09407-20405.

09407-25402

$4.19

15

HOSE,FUEL TANK DRAIN

44423-25L00

$16.45

16

CLAMP (ID:11.8X2)

09408-00043

Unavailable

17

CLAMP

09403-16412

$3.08

18

EMBLEM,"SUZUKI"

68111-47L00

$65.52

19

EMBLEM

68111-47L20

$6.62
