2023 Suzuki GSX800RQM3 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2023 Suzuki GSX800RQM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

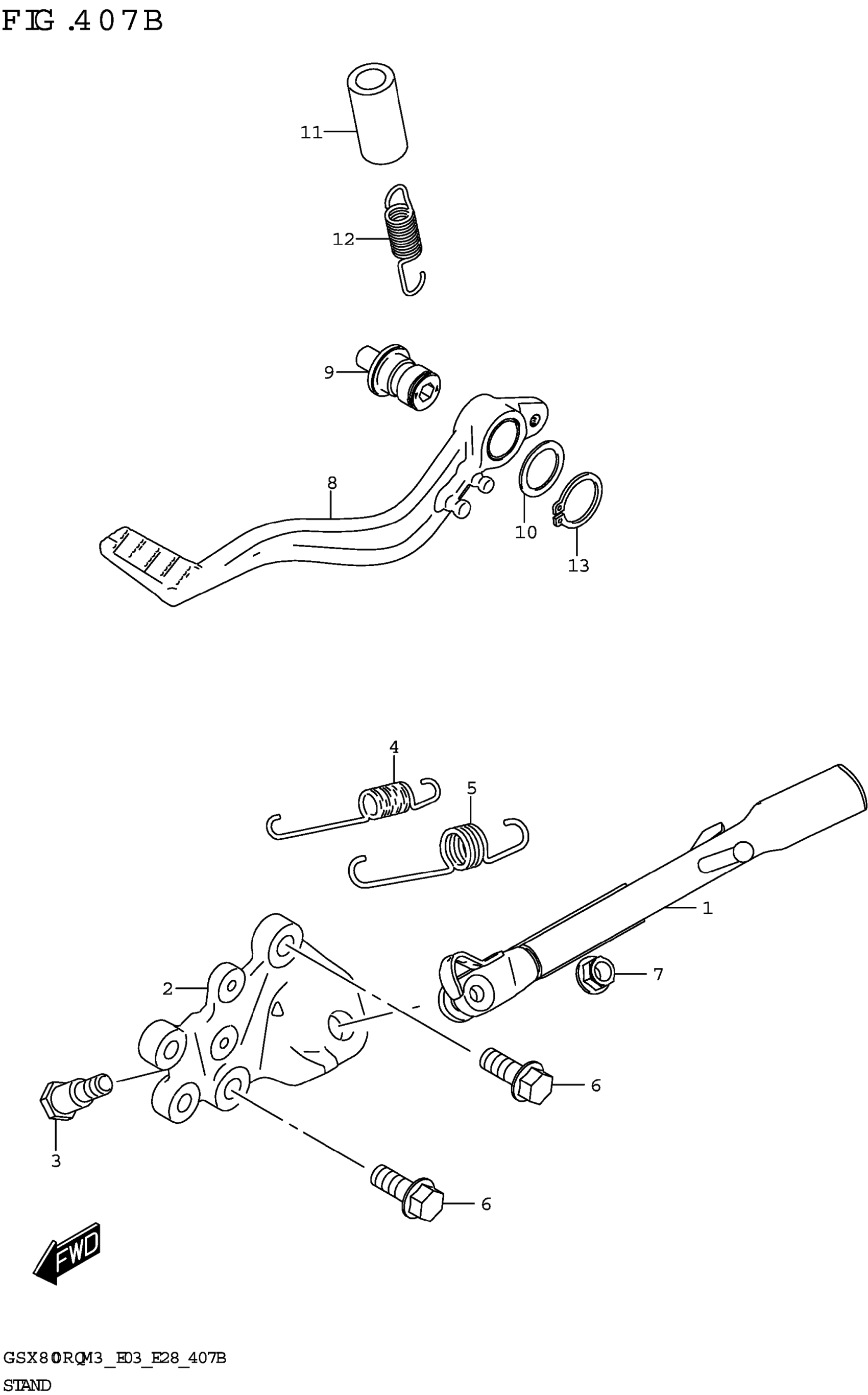

2023 Suzuki GSX800RQM3 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-25L10

1
Out of stock

2

BRACKET,PROP STAND

42330-25L00

1
Out of stock

3

BOLT (10X21)

09111-10059

1
Out of stock

4

SPRING

09443-14058

1
Out of stock

5

SPRING

09443-19011

1
Out of stock

6

BOLT (10X20)

01550-1025A

2
Out of stock

7

NUT

08319-3110A

1
Out of stock

8

PEDAL,BRAKE

43110-25L00

1
Out of stock

9

SHAFT,BRAKE PEDAL

43142-25L00

1
Out of stock

10

WASHER (18X24X1.0)

09160-18022

1
Out of stock

11

HOSE (13X20X600 ) | L:600->040

09355-13207-600

1
Out of stock

12

SPRING

09443-13029

1
Out of stock

13

CIRCLIP

08331-3118A

1
Out of stock
