Partiron

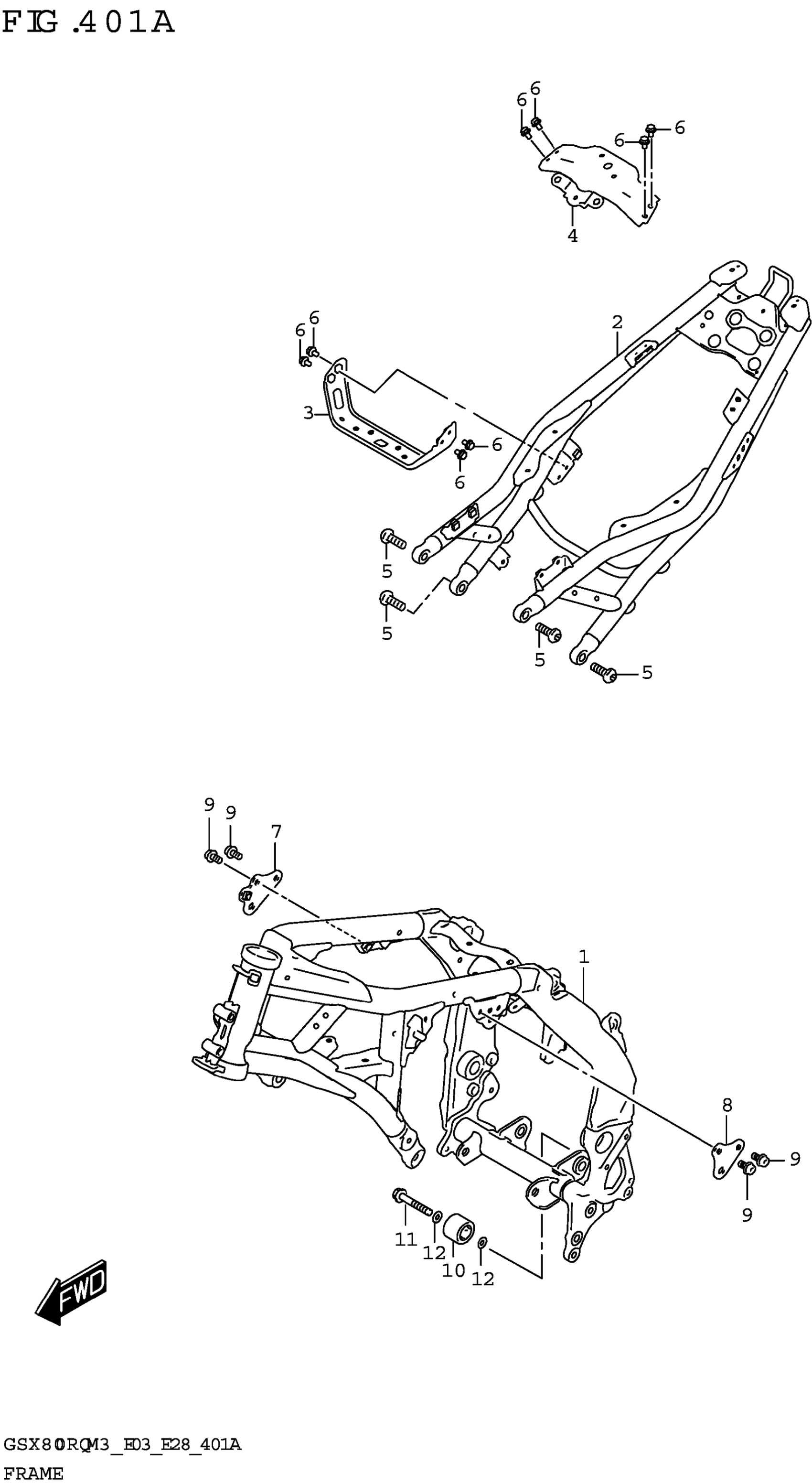

Suzuki GSX800RQM3 (2023) FRAME Diagram

#

Description
Price

1

FRAME

41100-25L00

$1,942.17

2-1

RAIL,SEAT (BLUE) | BODY COLOR:QU1,QU2

41200-25L00-QU1

$230.97

2-2

RAIL,SEAT (GLAY) | BODY COLOR:KGL

41200-25L00-YPT

$230.97

3

HOLDER,BATTERY

42710-25L00

$21.67

4

BRACKET,SEAT LOCK

42720-25L00

$25.08

5

BOLT

09106-10100

$3.62

6

BOLT

01550-0610B

$2.43

7

PLATE,ENG MTG,R

41920-25L00

$9.60

8

PLATE,ENG MTG,L

41922-25L00

$8.77

9

BOLT

07120-0816B

Unavailable

10

ROLLER,CHAIN

43910-37F00

$77.40

11

BOLT (8X41)

09103-08083

$3.38

12

SHIM (8X16X1)

09181-08167

$1.98
