2023 Suzuki GSX800RQM3 Holder Diagram

← All diagrams

Find the part on the Holder diagram for your 2023 Suzuki GSX800RQM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

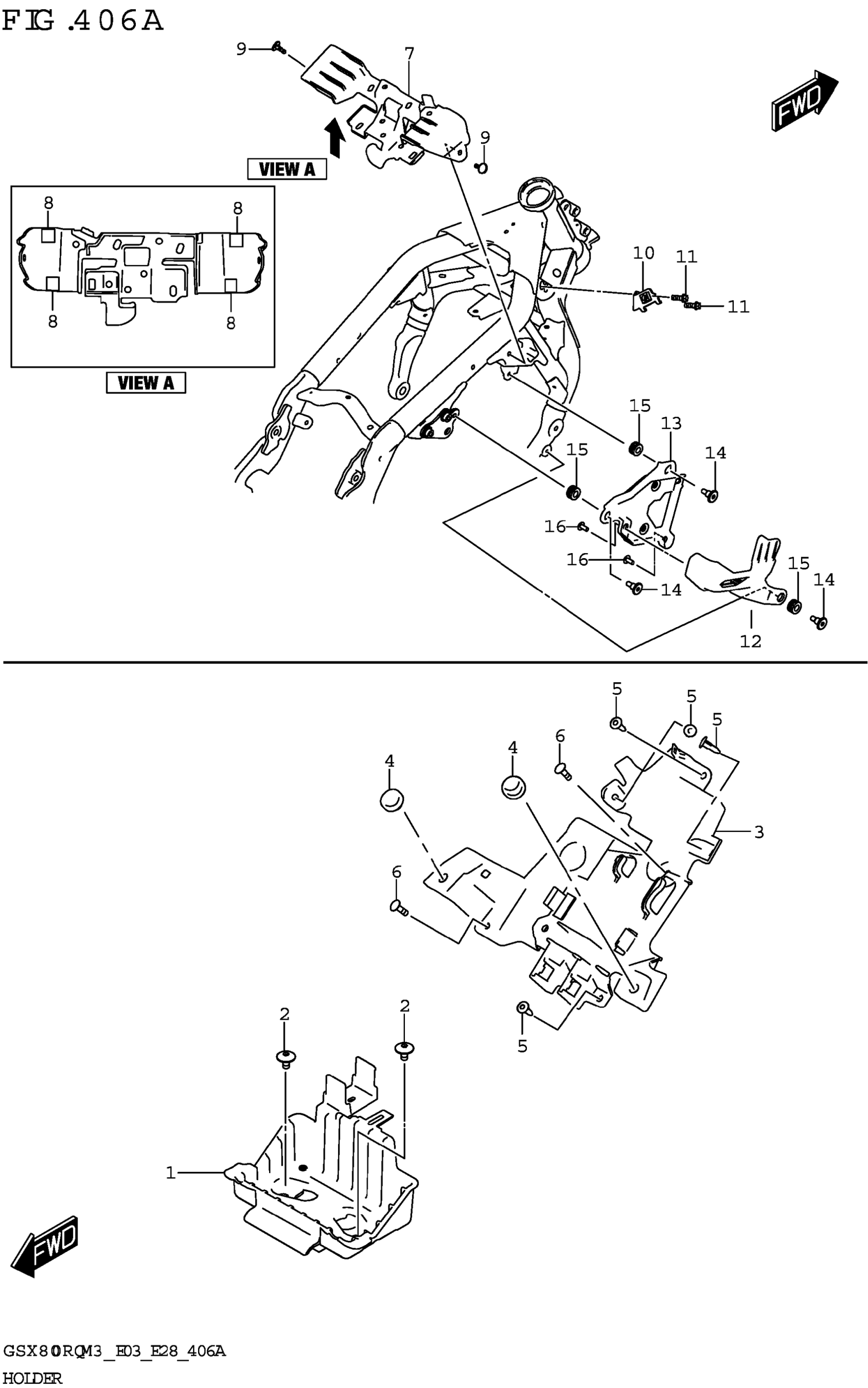

2023 Suzuki GSX800RQM3 Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER,BATTERY

47431-25L00

1
Out of stock

2

SCREW (6X12)

09139-06188

2
Out of stock

3

HOLDER,ELECTRIC PARTS

47433-25L00

1
Out of stock

4

CUSHION

09321-10012

2
Out of stock

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

4
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

BRACKET,COUPLER

47430-25L00

1
Out of stock

8

.CUSHION (15X15X1)

94429-20K00

4
Out of stock

9

CLIP

94479-35F00

2
Out of stock

10

BRACKET,HORN

46420-25L00

1
Out of stock

11

BOLT

01547-0616B

2
Out of stock

12

GUARD,RECTIFIER

47436-25L00

1
Out of stock

13

HOLDER,RECTIFIER

47437-25L00

1
Out of stock

14

SCREW (6X20)

09139-06211

3
Out of stock

15

CUSHION (9X18X9.5)

09320-09016

3
Out of stock

16

SCREW

03541-0512A

2
Out of stock
