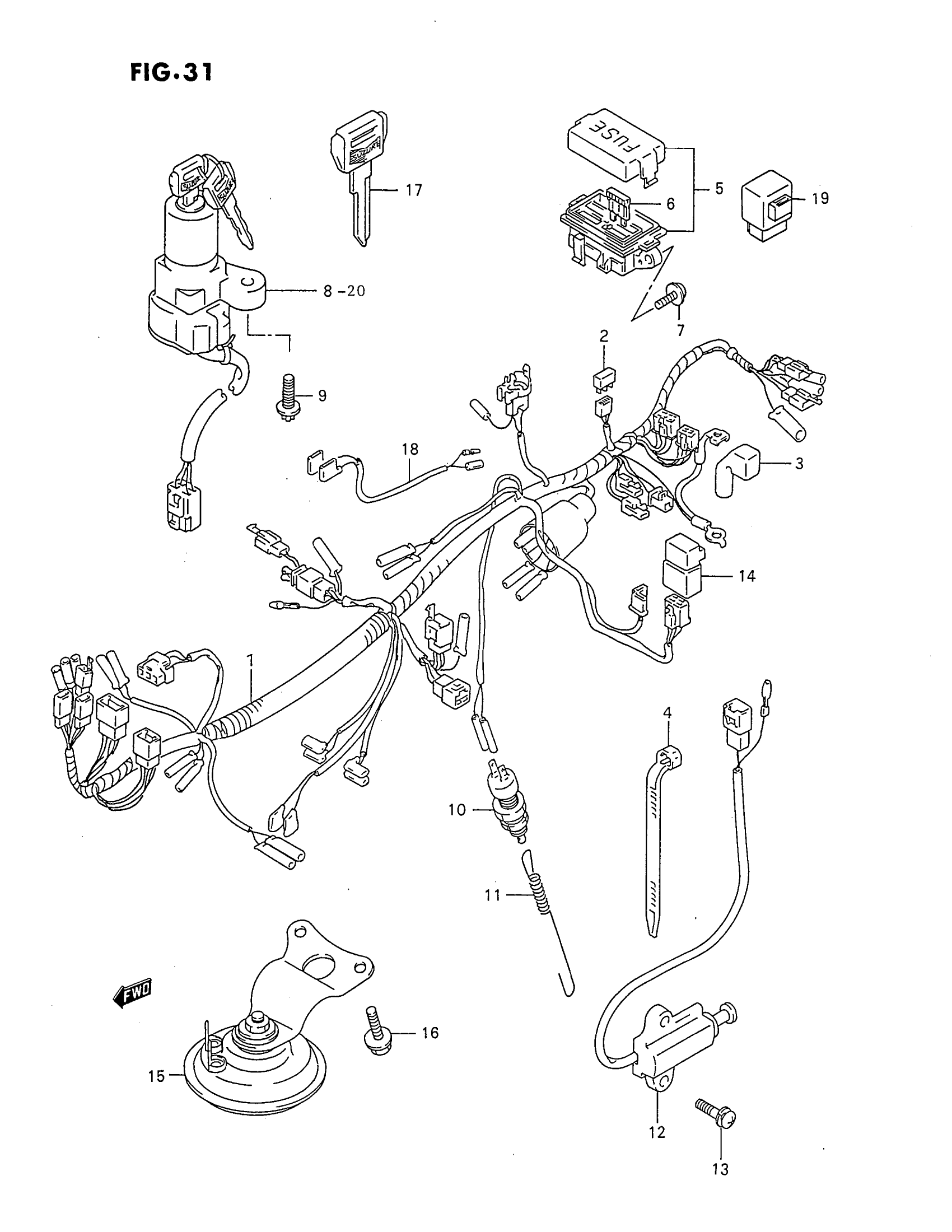

Suzuki GSX750FV (1997) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-20C60

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY; Includes Item(s) 2 - 3

36610-20C50

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

CAP, BATTERY PLUS TERMINAL

33624-43500

$5.50

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP (L:95)

09407-11401

$2.63

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

5

FUSE BOX ASSY | Includes Item(s) 6 - 6

36740-10D10

Unavailable

6

FUSE (10A)

09481-10101

$2.07

6

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

7

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

8

LOCK ASSY, STEERING This part replaces 37100-26D02.

37100-26D03

$194.77

9

BOLT

09139-06026

$2.50

10

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

11

SPRING

09443-06005

$3.37

12

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

13

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

14

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

15

HORN ASSY

38500-19C01

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

KEY, BLANK | OPT

37146-26D10

$49.70

18

WIRE, CLUTCH SWITCH

36852-19D00

Unavailable

19

CONTROLLER ASSY, FAN MOTOR | CALIFORNIA ONLY

38870-48B00

Unavailable
