1997 Suzuki GSX750FV Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1997 Suzuki GSX750FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

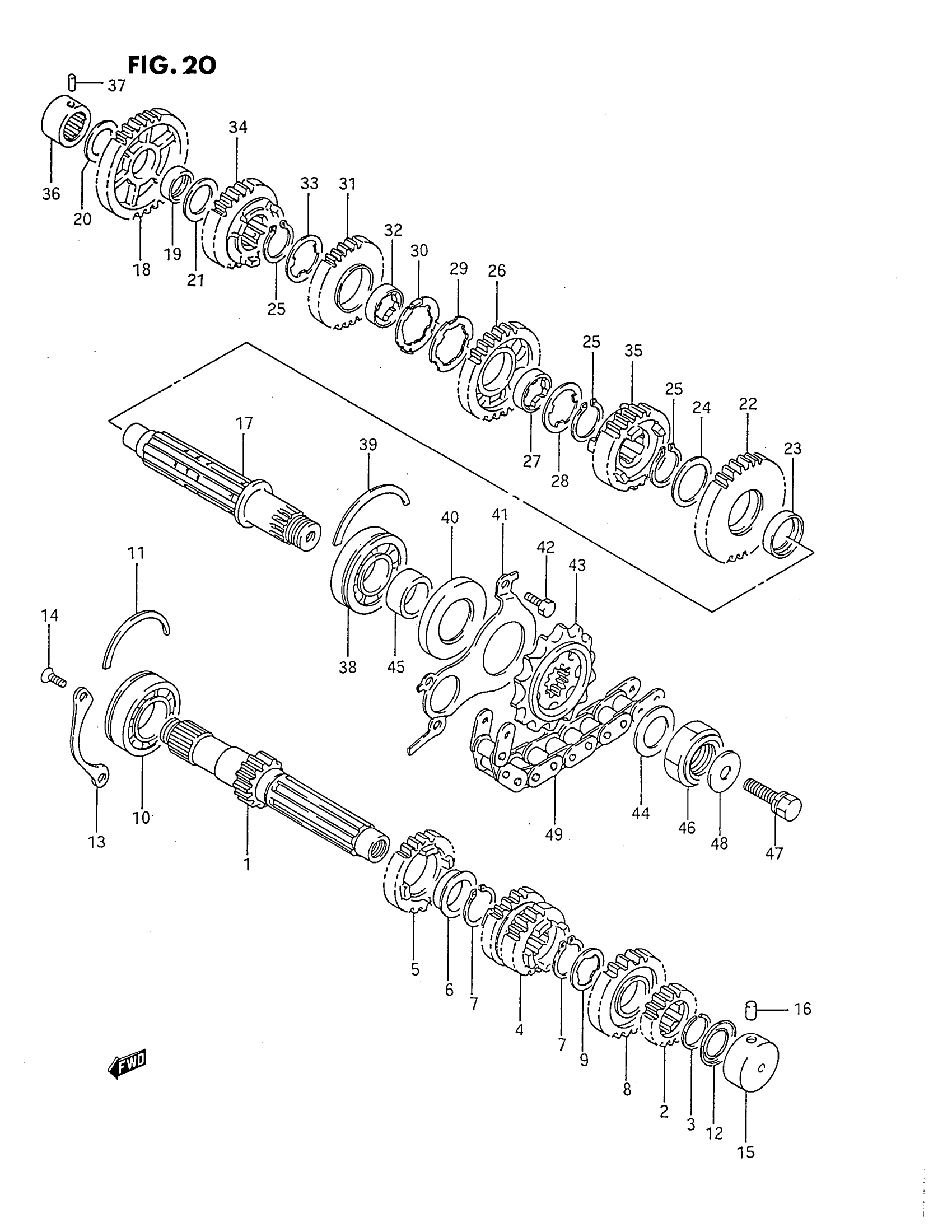

1997 Suzuki GSX750FV Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT (NT:12)

24121-20C10

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-27A01

1
Out of stock

3

CIRCLIP

09380-25013

1
Out of stock

4

GEAR, 3/4TH DRIVE (NT:17/20)

24231-27A00

1
Out of stock

5

GEAR, 5TH DRIVE (NT:22)

24251-27A01

1
Out of stock

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

1
Out of stock

7

SNAP RING

09380-25003

2
Out of stock

8

GEAR, 6TH DRIVE (NT:21) This part replaces 24261-17C01.

24261-17C02

1
Out of stock

9

WASHER LOCK (25.1X31X1.0)

09167-25012

1
Out of stock

10

BEARING, RH (25X62X17)

09262-25105

1
Out of stock

11

C RING (60.2X63.7X2)

09390-62012

1
Out of stock

12

OIL SEAL

09285-20006

1
Out of stock

13

HOLDER, BEARING

24741-27A00

1
Out of stock

14

SCREW This part replaces 02122-06163.

02122-0616A

2
Out of stock

15

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

1
Out of stock

16

PIN

04221-07129

1
Out of stock

17

DRIVESHAFT

24131-20C00

1
Out of stock

18

GEAR, 1ST DRIVEN (NT:37)

24311-19C10

1
Out of stock

19

BUSH

09300-22008

1
Out of stock

20

WASHER, RH

08211-20341

1

$3.05

In stock

21

WASHER, LH

08211-22341

1

$4.18

In stock

22

GEAR, 2ND DRIVEN (NT:33)

24321-20C00

1
Out of stock

23

BUSH

09300-28003

1
Out of stock

24

.SHIM (28X38X1) This part replaces 08211-28381.

09181-28195

1
Out of stock

25

CIRCLIP This part replaces 08331-31286.

08331-31289

3
Out of stock

26

GEAR, 3RD DRIVEN (NT:28)

24331-27A00

1
Out of stock

27

BUSH

24332-27A00

1
Out of stock

28

WASHER, LH

09167-28001

1
Out of stock

29

WASHER, RH (T:1.5)

09167-28002

1
Out of stock

30

WASHER, RH (T:1.0)

09169-28001

1
Out of stock

31

GEAR, 4TH DRIVEN (NT:28)

24341-27A01

1
Out of stock

32

BUSH

24332-27A00

1
Out of stock

33

WASHER, RH

09167-28001

1
Out of stock

34

GEAR, 5TH DRIVEN (NT:27)

24351-27A00

1
Out of stock

35

GEAR, 6TH DRIVEN (NT:23) This part replaces 24361-20C00.

24361-20C01

1
Out of stock

36

BEARING, RH

09263-20040

1
Out of stock

37

PIN (L:20)

04221-07209

1
Out of stock

38

BEARING, LH

09262-25115

1
Out of stock

39

C RING

09390-62012

1
Out of stock

40

OIL SEAL (34X62X6)

09283-34005

1
Out of stock

41

PLATE

24751-27A01

1
Out of stock

42

BOLT This part replaces 01500-06123.

01500-0612A

4
Out of stock

43

SPROCKET, ENGINE (NT:15)

27510-17C10

1
Out of stock

44

1

$3.13

In stock

45

SPACER

09180-25091

1
Out of stock

46

NUT

09159-20004

1

$15.18

In stock

47

BOLT This part replaces 01570-06163.

01570-0616A

1
Out of stock

48

WASHER

08212-06222

1
Out of stock

49

CHAIN ASSY (RK50GSVZ3M,120LE) This part replaces 27600-17C20-118.

27600-24F20-120

1
Out of stock
