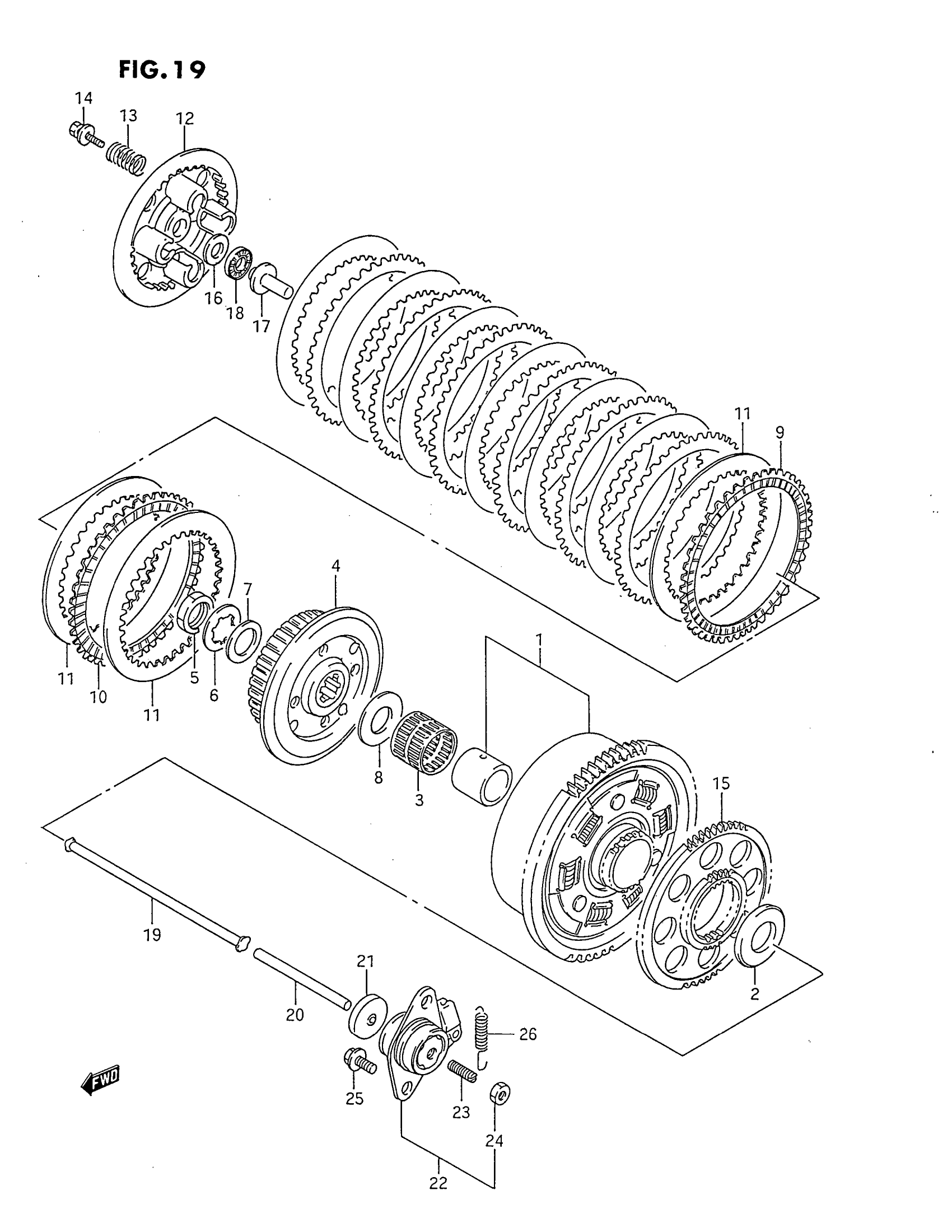

Suzuki GSX750FV (1997) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 21200-17834.

21200-17835

Unavailable

2

WASHER

09160-25037

$9.62

3

BEARING

09263-35017

$37.12

4

HUB, SLEEVE

21410-07D00

Unavailable

5

NUT

09140-24012

Unavailable

6

WASHER

09167-25007

Unavailable

7

WASHER, WAVE

09164-24006

$3.38

8

.WASHER (25X50X2.5)

09160-25056

$10.63

9

PLATE, DRIVE (T:2.2)

21441-20C00

$39.13

10

PLATE, DRIVE,NO.2

21442-17C00

Unavailable

11

PLATE, DRIVEN (T:1.6)

21451-17C00

$10.77

12

DISC, PRESSURE

21462-17C01

Unavailable

13

SPRING

09440-20018

$8.68

14

BOLT (6X16)

09116-06168

$2.50

15

NO DESCRIPTION AVAILABLE This part replaces 22721-17C01.

22721-17C02

Unavailable

16

WASHER (15.5X28X1)

09160-15045

$3.52

17

PIECE, PUSH This part replaces 23121-07A00.

23121-31E00

$22.52

18

BEARING (15X28X2)

09263-15003

$7.49

19

ROD, CLUTCH PUSH RH

23110-20C00

$27.55

20

ROD

23111-31301

$12.58

21

OIL SEAL

09285-06015

$7.20

22

SCREW, CLUTCH RELEASE | Includes Item(s) 23 - 24

23200-20C00

Unavailable

23

SCREW

09134-06010

$2.81

24

.NUT

08310-00067

$1.83

25

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

26

SPRING

09443-07038

$2.80
