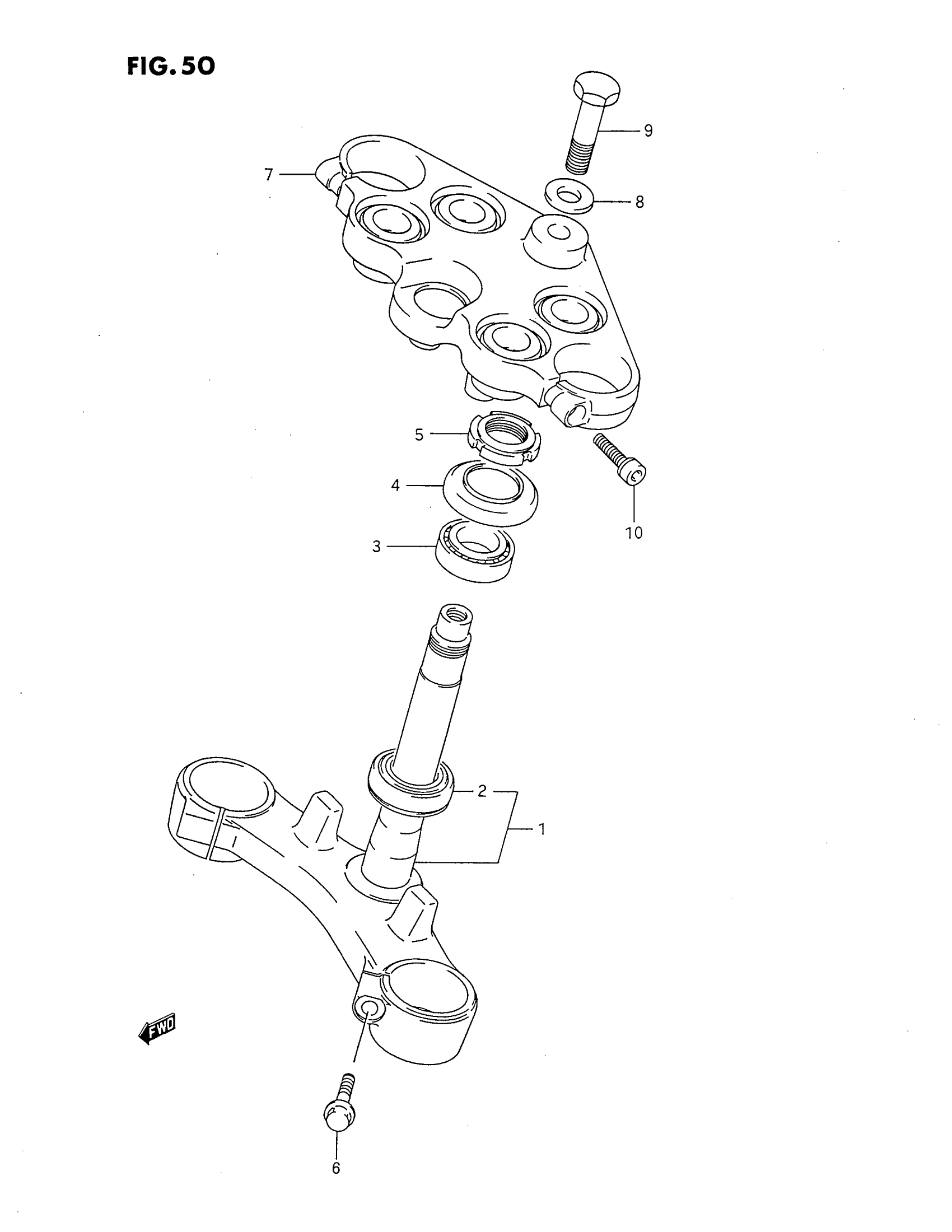

Suzuki GSX750FV (1997) STEERING STEM Diagram

#

Description

Price

1

STEM, STEERING | Includes Item(s) 2 This part replaces 51410-19C20.

51410-19C02

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BEARING, UPPER

09265-25019

$56.53

4

DUST SEAL

51643-49002

$12.32

5

NUT, STEERING STEM

51631-28000

$17.37

6

BOLT This part replaces 01550-10403.

01550-1040A

$3.55

7

HEAD, STEERING STEM

51311-20C00

Unavailable

8

WASHER

51356-43530

$6.55

9

BOLT, UPPER

51352-20C00

Unavailable

10

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74
