Description

Price

1

STAND SET, CENTER | Includes Item(s) 2 - 7

42100-19843

Unavailable

2

HOOK, SPRING

42251-19C00

Unavailable

3

SPRING This part replaces 09443-15039.

09443-15039-XC0

Unavailable

4

SPRING, OUTER

09443-22009

$9.59

5

ARM, BRAKE ROD This part replaces 01580-10603.

01580-1060B

$6.05

6

SPACER

09180-10040

$2.56

7

CUSHION

09321-10017

$6.38

8

STAND, PROP

42310-19C01

Unavailable

9

SPRING, INNER

09443-12036

$7.84

10

SPRING, OUTER

09443-19010

$6.51

11

BOLT

09111-10036

$4.82

12

SHIM

08221-12224

$1.96

13

NUT

09159-10097

$5.66

14

PEDAL, BRAKE

43110-19C02

Unavailable

15

ARM, BRAKE PEDAL ROD

43120-19C00

Unavailable

16

RUBBER

43151-04701

$5.80

17

WASHER, BRAKE BOSS

43212-04A00

$2.13

18

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

19

SPRING

09443-13028

$7.57

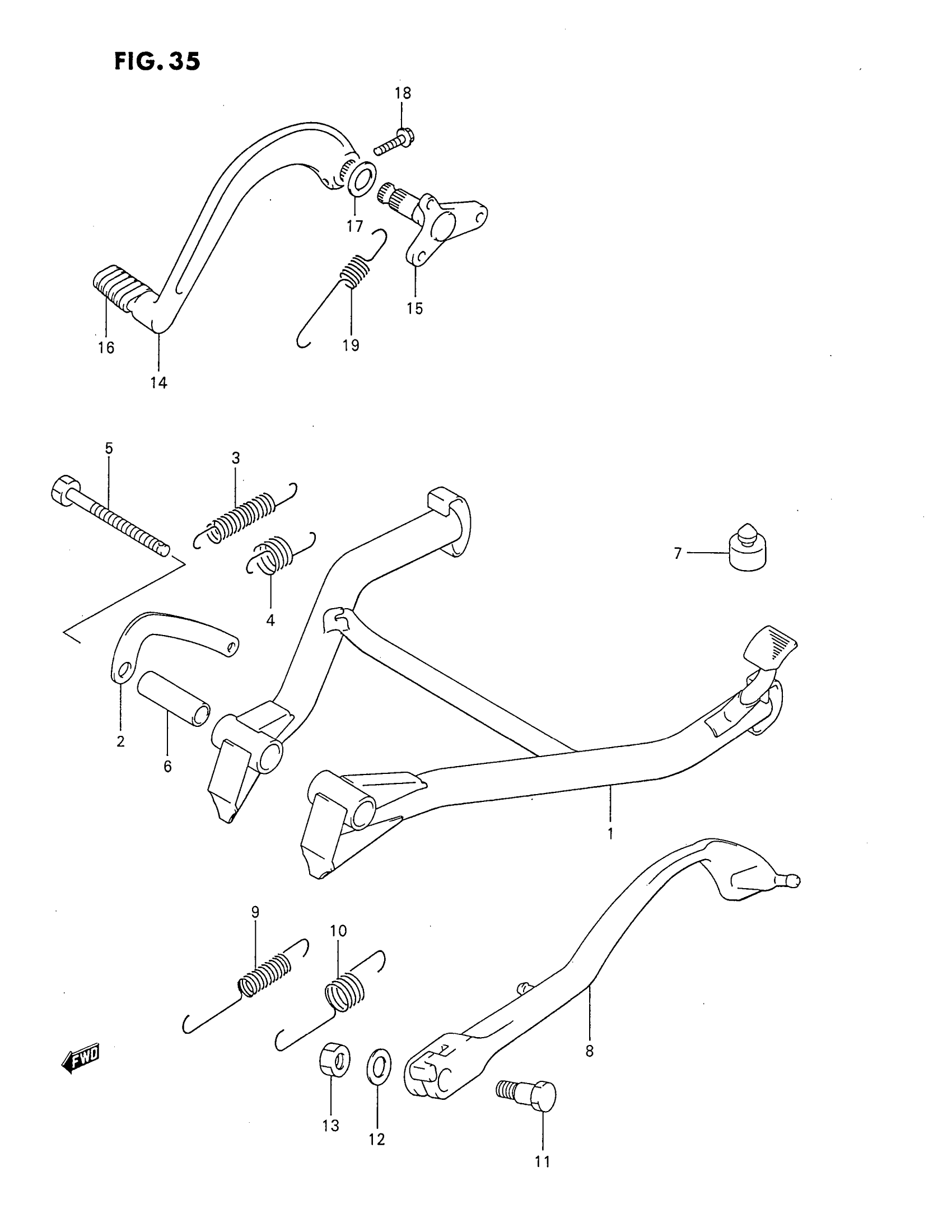

Suzuki GSX750FV (1997) STAND Diagram

STAND SET, CENTER | Includes Item(s) 2 - 7

HOOK, SPRING

SPRING This part replaces 09443-15039.

SPRING, OUTER

ARM, BRAKE ROD This part replaces 01580-10603.

SPACER

CUSHION

STAND, PROP

SPRING, INNER

SPRING, OUTER

BOLT

SHIM

NUT

PEDAL, BRAKE

ARM, BRAKE PEDAL ROD

RUBBER

WASHER, BRAKE BOSS

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

SPRING
