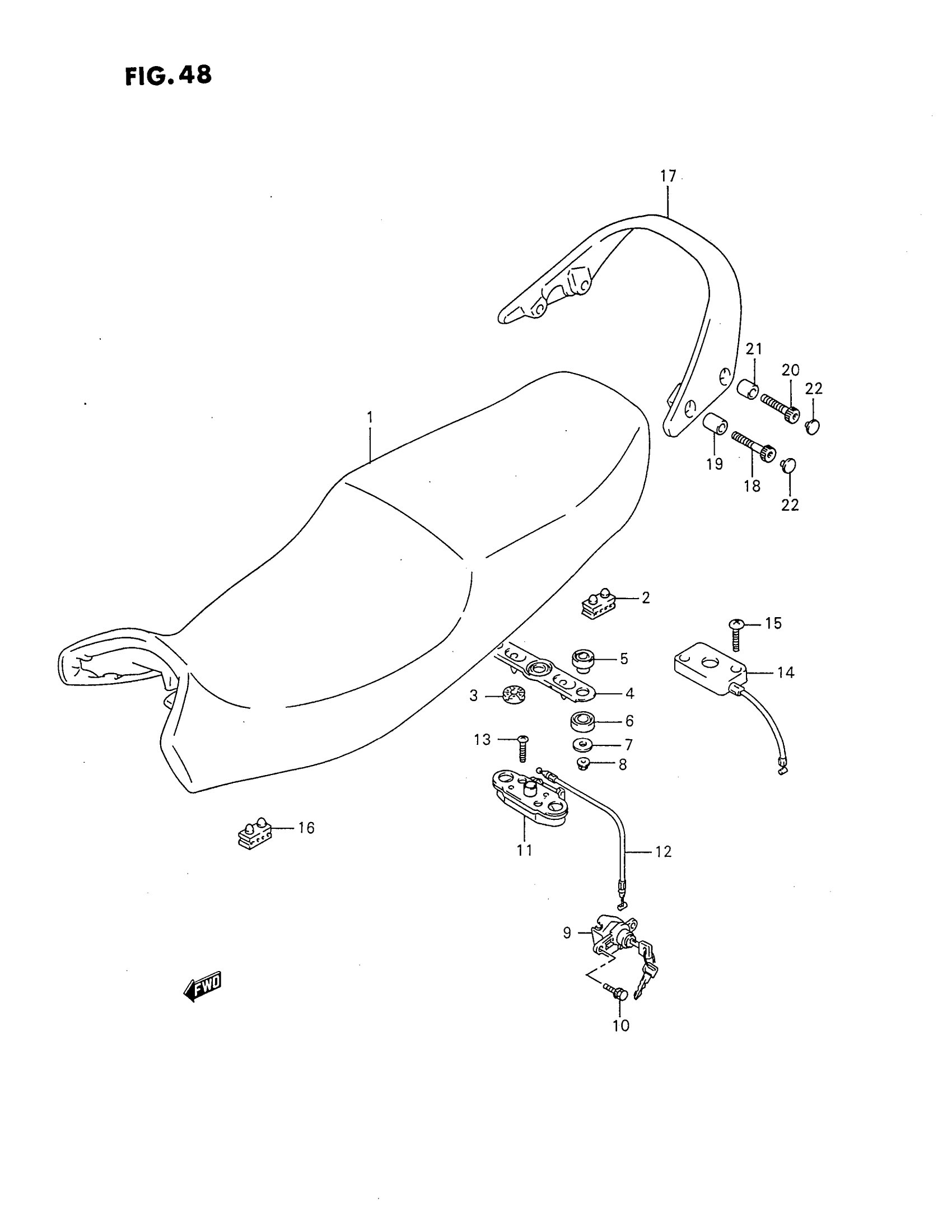

Suzuki GSX750FV (1997) SEAT Diagram

#

Description
Price

1

SEAT SET (BLACK) | Includes Item(s) 2 - 8

45100-20C21-58R

Unavailable

2

CUSHION

45149-31300

$3.56

3

CUSHION

45213-13601

$2.79

4

STRIKER, SEAT LOCK

45210-48B20

Unavailable

5

CUSHION, STRIKER UPPER

09320-10038

$2.61

6

CUSHION, STRIKER LOWER

09320-14017

$2.35

7

WASHER

08212-06201

$1.67

8

NUT This part replaces 08316-20063.

08316-2006A

$2.63

9

CAP SET,SEAT This part replaces 45700-19840.

45700-19841

Unavailable

10

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

11

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

12

CABLE, SEAT LOCK

45280-20C00

Unavailable

13

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

14

BRACKET, SEAT REAR NO.2

45220-06C00

Unavailable

15

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

16

CUSHION, SEAT FRONT

45149-31300

$3.56

17

HANDLE, PILLION RIDER (BLACK)

46211-20C00-019

Unavailable

18

BOLT This part replaces 07130-08403.

07130-0840B

$3.91

19

SPACER, FRONT (8.1X16X17)

09180-08111

Unavailable

20

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

21

SPACER, REAR (10.2X16X12)

09180-10144

Unavailable

22

CAP

09250-06004

$1.49
