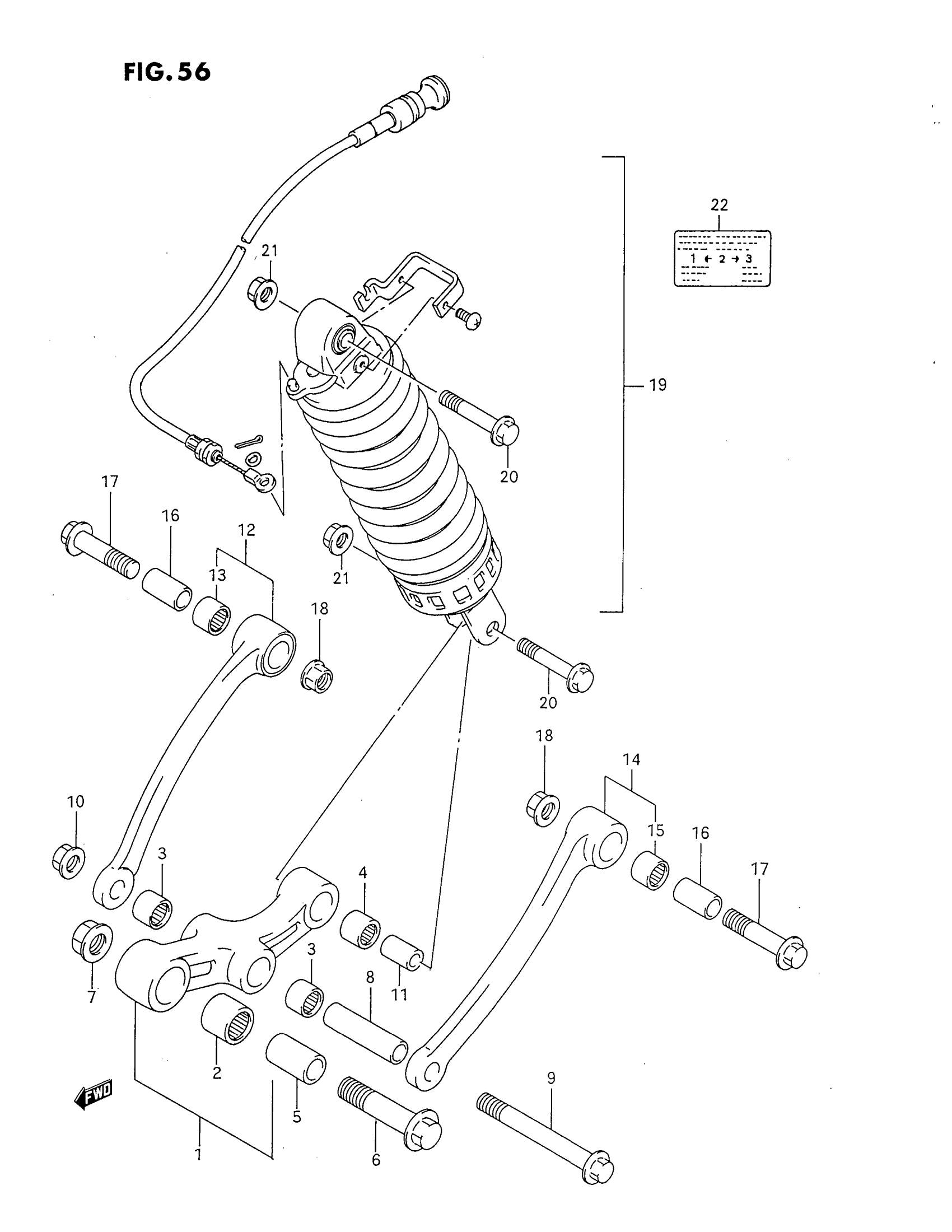

Suzuki GSX750FV (1997) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-19830

Unavailable

2

BEARING, FRONT

09263-20070

$37.72

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT (14X20X34)

09180-14014

$17.50

6

BOLT, FRONT (14X62)

09103-14012

Unavailable

7

NUT This part replaces 08319-31145.

08319-3114B

$12.87

8

SPACER, CENTER (12X17X60)

09180-12121

$20.03

9

BOLT, CENTER (12X96)

09103-12034

$10.30

10

NUT This part replaces 08319-31125.

08319-3112B

$5.00

11

SPACER, REAR

62684-40A10

$12.15

12

ROD SET, REAR CUSHION,RH | Includes Item(s) 13

62601-20810

Unavailable

13

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

14

ROD SET, REAR CUSHION,LH | Includes Item(s) 15

62601-20820

Unavailable

15

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

16

SPACER, ROD (12X17X29)

09180-12120

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 09103-12035.

09103-12035-XC0

Unavailable

18

NUT This part replaces 08319-31125.

08319-3112B

$5.00

19

ABSORBER ASSY, REAR SHOCK

62100-20C02

Unavailable

20

BOLT (10X52)

09103-10197

Unavailable

21

NUT This part replaces 08319-31105.

08319-3110A

$2.73

22

LABEL, SHOCK ABSORBER

68341-20C00

Unavailable
