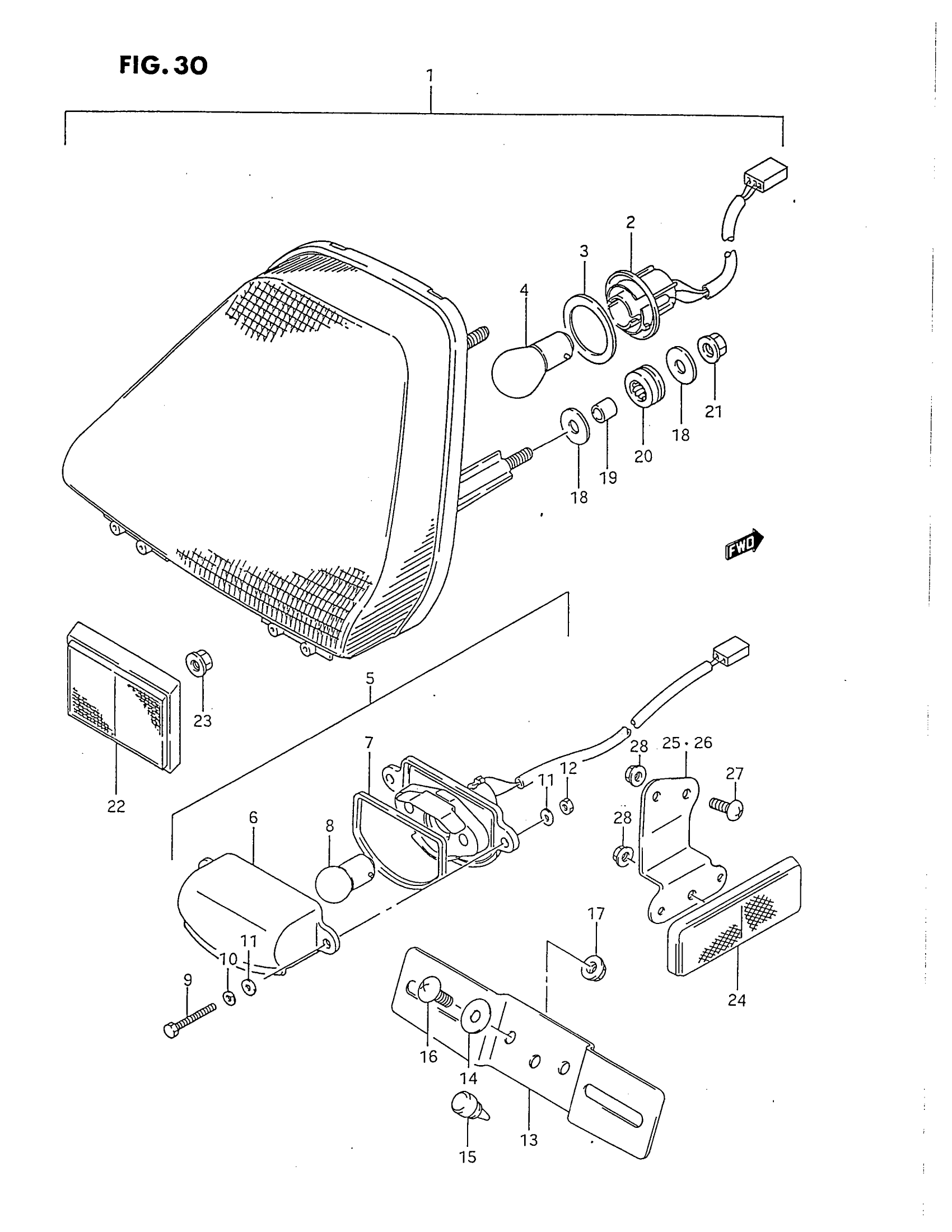

Suzuki GSX750FV (1997) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 12

35710-48C30

Unavailable

2

SOCKET

35718-48B20

Unavailable

3

RUBBER

35764-48B20

Unavailable

4

BULB (12V,21/5W)

09471-12128

$6.08

5

LAMP ASSY, LICENSE

35910-48B30

Unavailable

6

LENS, LICENSE LAMP

35912-00A21

Unavailable

7

GASKET

35913-04A00

Unavailable

8

BULB (12V,5W)

09471-12141

Unavailable

9

BOLT

01104-04256

Unavailable

10

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.86

11

WASHER

08322-01047

$1.88

12

NUT

08310-00047

$2.43

13

BRACKET, LICENSE PLATE

35927-48B30

$16.03

14

WASHER This part replaces 09160-06053.

09160-06125

$1.89

15

CUSHION

09321-06023

$2.72

16

SCREW This part replaces 02112-06163.

02112-0616A

$1.43

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

WASHER (6.5X20X1.2)

09160-06077

$1.89

19

SPACER (6.1X8X9.5)

09180-06248

$2.13

20

CUSHION

09320-09009

$4.19

21

NUT This part replaces 08316-10063.

08316-1006B

$2.50

22

REFLEX REFLECTOR, REAR

35970-48B00

Unavailable

23

NUT This part replaces 08316-10053.

08316-1005A

$2.19

24

REFLECTOR, REAR This part replaces 35970-00A21.

35970-00A10

Unavailable

25

BRACKET, RH

35975-20C01

Unavailable

26

BRACKET, LH

35976-20C01

Unavailable

27

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

28

NUT This part replaces 08310-00053.

08310-0005A

$1.83
