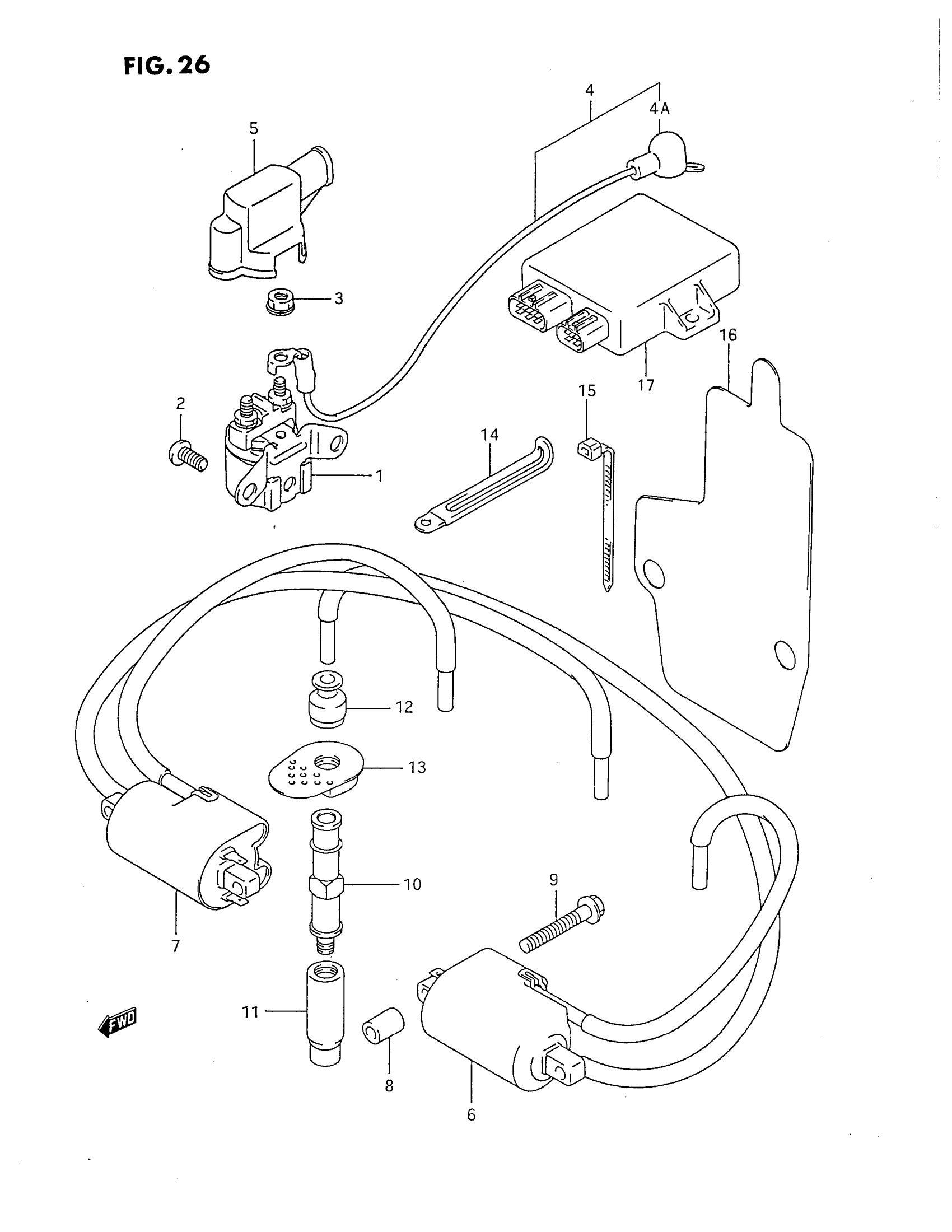

Suzuki GSX750FV (1997) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$89.07

2

SCREW This part replaces 02112-06103.

02112-0610B

$1.83

3

NUT This part replaces 08361-35068.

08361-3506A

$1.81

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 4A

33810-41C00

Unavailable

4A

CAP, STARTING

31861-48B10

$7.40

5

CAP, TERMINAL

31861-10D10

Unavailable

6

COIL ASSY, IGNITION NO.1 This part replaces 33410-19C00.

33410-19C01

$181.53

7

COIL ASSY, IGNITION NO.2 This part replaces 33420-19C00.

33420-19C01

$186.88

8

SPACER

09180-06198

$4.70

9

BOLT This part replaces 01550-06453.

01550-0645A

$2.42

10

CAP, SPARK PLUG

33510-20C02

$36.33

11

SEAL, PLUG

33541-20C00

$15.17

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

13

COVER

33543-48B00

$6.83

14

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

15

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

16

COVER, IGNITION

33411-20C00

Unavailable

17

IGNITER ASSY | E33

32900-20C60

Unavailable
