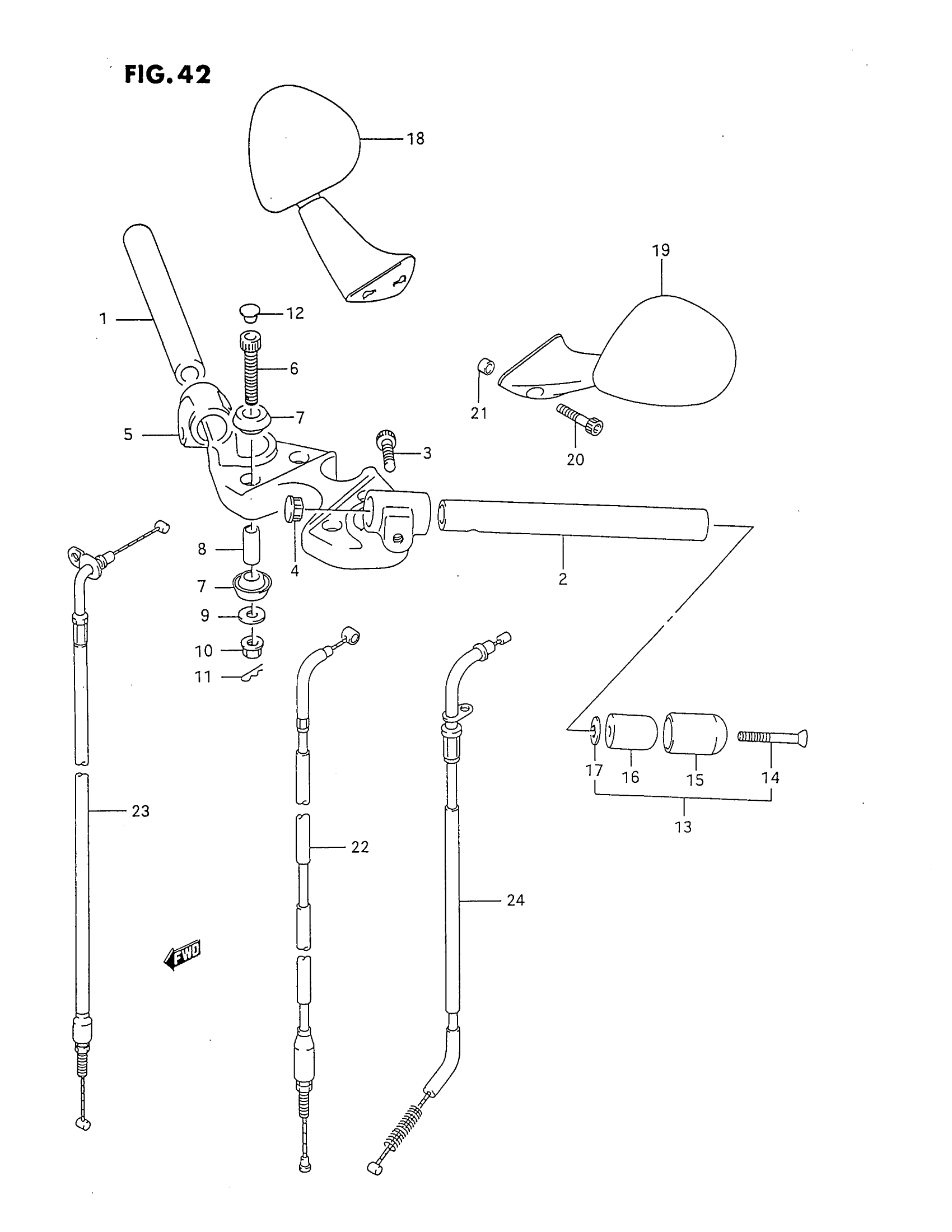

Suzuki GSX750FV (1997) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56110-20C00

Unavailable

2

HANDLEBAR, LH

56150-20C00

Unavailable

3

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

4

CAP

57215-33400

$5.50

5

HOLDER, HANDLEBAR (SILVER) | MODEL R/S/T

56211-20C20

Unavailable

6

BOLT

09106-10054

Unavailable

7

CUSHION,RUBBER, This part replaces 56240-42A00.

56240-42A01

$30.47

8

SPACER

56243-20C00

Unavailable

9

WASHER | MODEL S/T

09160-10094

$3.16

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73

11

CLIP

09385-10005

$1.56

12

CAP | MODEL R/S/T This part replaces 09250-06008.

09250-06016

$1.96

13

BALANCER SET, HANDLEBAR | MODEL R/S/T; Includes Item(s) 14 - 17

56200-01831

Unavailable

14

SCREW | MODEL R/S/T This part replaces 02122-06603.

02122-0660B

$3.04

15

CAP | <-56274-20C00(BLACK)

56274-49310

Unavailable

16

BALANCER

56271-49310

Unavailable

17

SPACER

56275-34401

$4.02

18

MIRROR ASSY,REA This part replaces 56500-20C41.

56500-20C42

Unavailable

19

MIRROR ASSY,REA This part replaces 56600-20C41.

56600-20C42

Unavailable

20

BOLT This part replaces 07130-06703.

07130-0670B

$3.89

21

SPACER

09180-06255

$2.53

22

CABLE ASSY, CLUTCH

58200-20C00

Unavailable

23

CABLE ASSY, THROTTLE

58300-20C00

Unavailable

24

CABLE, STARTER

58410-20C02

Unavailable
