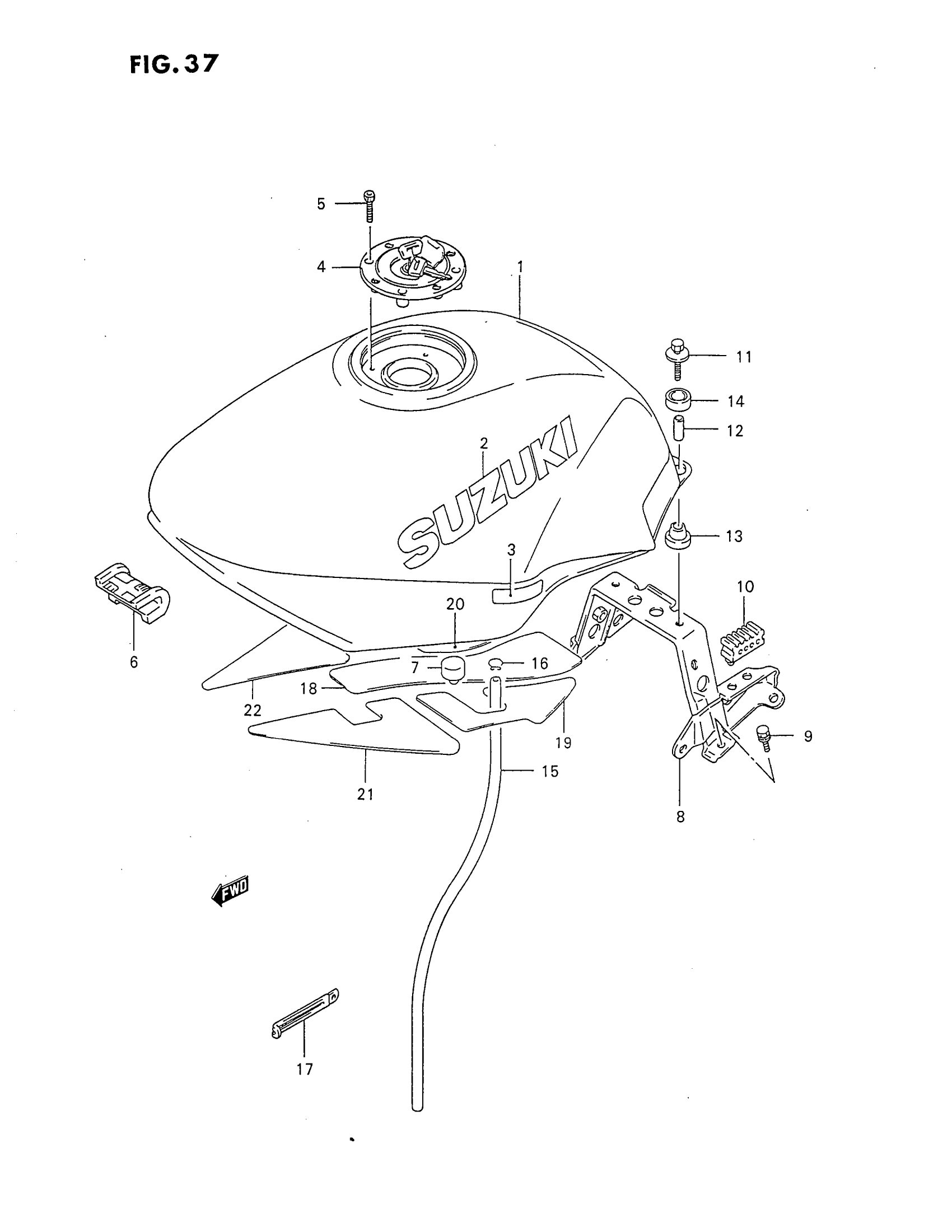

Suzuki GSX750FV (1997) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-43C30-22U.

44100-43C31-22U

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-43C30-33J.

44100-43C31-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 44100-43C60-22U.

44110-19C11-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 This part replaces 44100-43C60-33J.

44110-19C11-YD8

Unavailable

2

EMBLEM This part replaces 68111-12C00-17U.

68111-12C30-17U

Unavailable

3

PROTECTOR, FUEL TANK

32851-10D00

$5.05

4

CAP SET,FUEL TA This part replaces 44201-01832.

44201-01833

Unavailable

4

CAP SET, FUEL TANK | E33

44201-01842

Unavailable

5

BOLT

09106-05017

$2.83

6

CUSHION, FUEL TANK FRONT

44511-19C00

Unavailable

7

CUSHION, FUEL TANK SIDE

09321-10011

$2.91

8

BRACKET, REAR

44550-19C00

Unavailable

9

BOLT This part replaces 09137-06017.

01570-0620A

$2.19

10

CUSHION, FUEL TANK SIDE REAR

45149-31300

$3.56

11

BOLT, REAR

09116-06172

$2.50

12

SPACER

09180-06271

$2.35

13

CUSHION, REAR LOWER

09320-10038

$2.61

14

CUSHION, REAR UPPER

09320-14017

$2.35

15

HOSE, WATER DRAIN

44423-19C00

Unavailable

16

CLIP

09401-08401

$1.54

17

CLAMP

09404-08420

$3.16

18

HEAT SHIELD, CENTER | E33

49131-20C00

Unavailable

19

HEAT SHIELD, REAR LH | E33

49132-20C00

Unavailable

20

HEAT SHIELD, REAR RH | E33

49133-20C00

Unavailable

21

HEAT SHIELD, FRONT LH | E33

49134-20C00

Unavailable

22

HEAT SHIELD, FRONT RH | E33

49135-20C00

Unavailable
