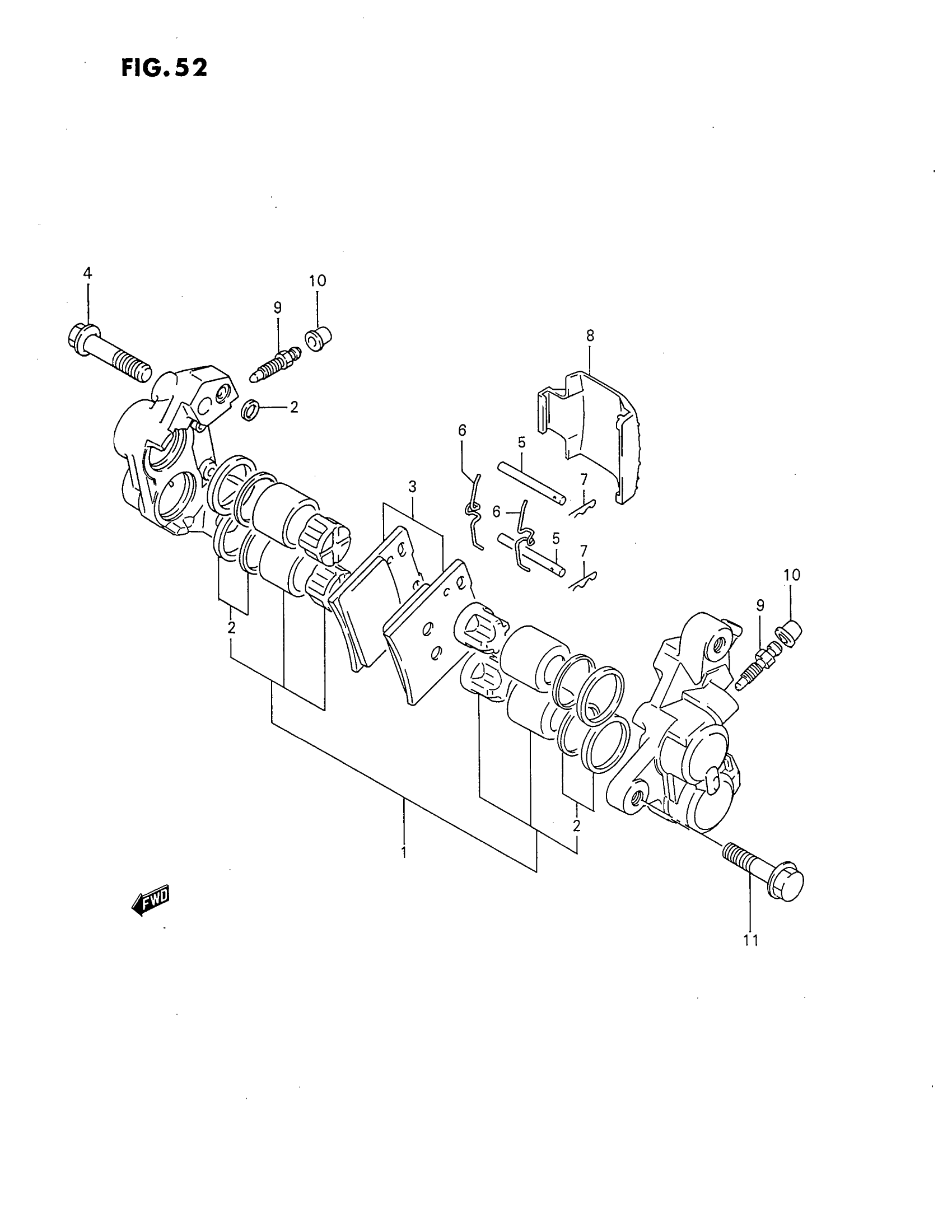

Suzuki GSX750FV (1997) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT RH

59100-20C02

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 10

59300-20C02

Unavailable

1

PISTON SET This part replaces 59100-19841.

59100-19842

Unavailable

2

SEAL SET,PISTON This part replaces 59100-19830.

59100-19831

Unavailable

3

PAD SET

59100-20820

Unavailable

4

BOLT

59145-16700

$8.83

5

PIN

69141-45000

$5.17

6

SPRING

69143-45001

$6.73

7

.CLIP, PAD PIN

69142-45000

$4.34

8

COVER

59151-04A01

$38.31

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04
