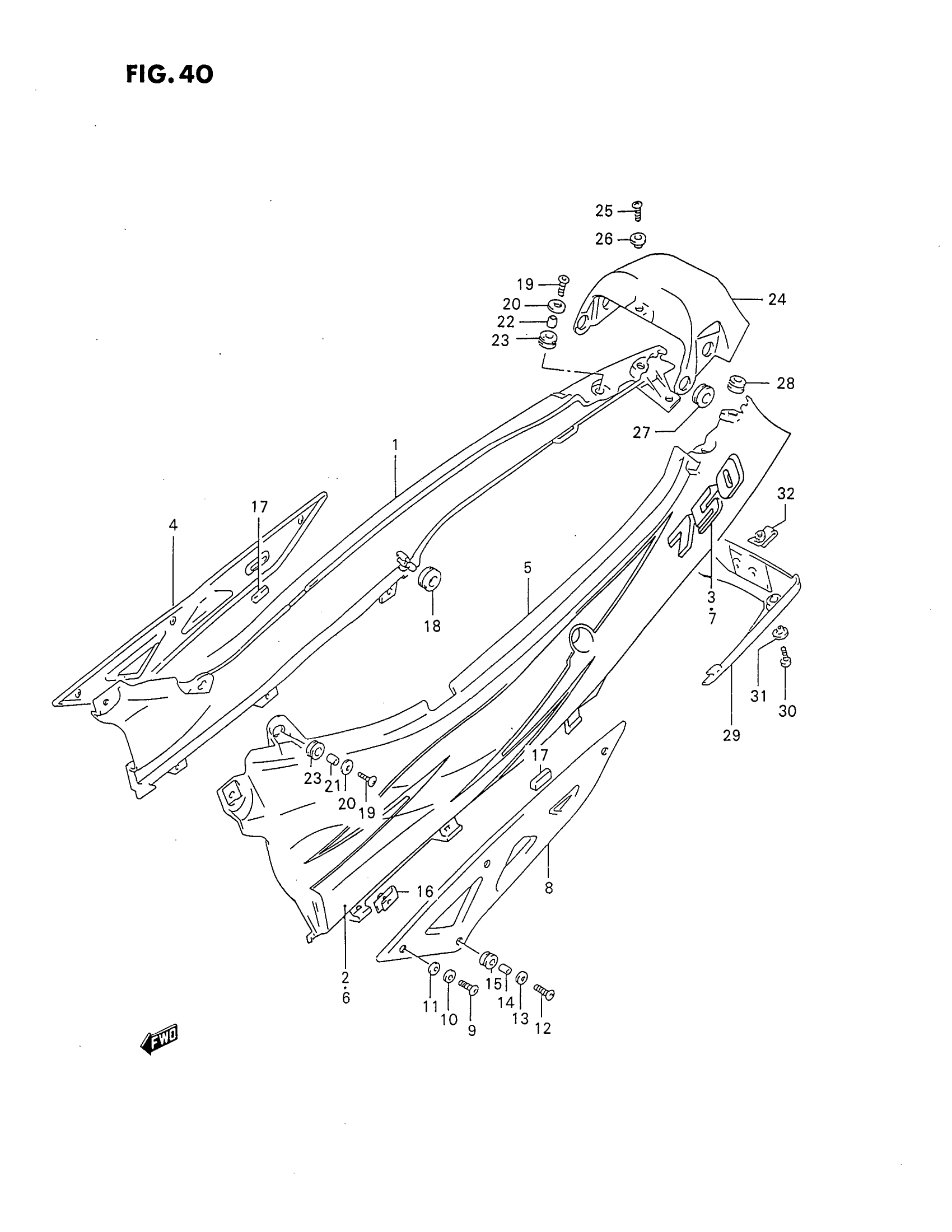

Suzuki GSX750FV (1997) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (MAROON)

47110-21CA0-22U

Unavailable

1

COVER, FRAME RH (BLACK) | Includes Item(s) 2 - 3

47110-21CA0-33J

Unavailable

2

TAPE RH | FOR 22U

68135-21C10-G2P

Unavailable

2

TAPE RH | FOR 33J

68135-21C10-G2N

Unavailable

3

EMBLEM | FOR 22U

68131-21C40-G2S

Unavailable

3

EMBLEM | FOR 33J

68131-21C40-G2R

Unavailable

4

COVER, FRAME LOWER RH

47131-20C00

Unavailable

5

COVER, FRAME LH (MAROON)

47210-21CA0-22U

Unavailable

5

COVER, FRAME LH (BLACK) | Includes Item(s) 6 - 7

47210-21CA0-33J

Unavailable

6

TAPE LH | FOR 22U

68145-21C10-G2P

Unavailable

6

TAPE LH | FOR 33J

68145-21C10-G2N

Unavailable

7

EMBLEM | FOR 22U

68131-21C40-G2S

Unavailable

7

EMBLEM | FOR 33J

68131-21C40-G2R

Unavailable

8

COVER, FRAME LOWER LH

47231-20C00

Unavailable

9

SCREW, LOWER FRONT

09120-06005

Unavailable

10

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

11

WASHER This part replaces 09161-05016.

09320-06501

$3.60

12

SCREW, LOWER

09139-06030

$3.70

13

WASHER

09160-06054

$1.62

14

SPACER

09180-06092

$3.42

15

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

16

PLATE, FITTING

47153-19C01

$7.95

17

CUSHION

47161-20C00

Unavailable

18

CUSHION, CENTER LOWER

09320-08018

$3.04

19

SCREW

09139-06030

$3.70

20

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

21

SPACER, FRONT

09180-06038

$1.98

22

SPACER, REAR UPPER

09180-06263

$2.03

23

CUSHION

09320-09016

$1.97

24

COVER, FRAME CENTER (MAROON)

47311-20C01-22U

Unavailable

24

COVER, FRAME CENTER (BLACK)

47311-20C01-33J

Unavailable

25

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

26

WASHER

09169-06037

$2.45

27

GROMMET

09308-16006

$2.53

28

CUSHION This part replaces 94433-26B00.

94433-26B01

$3.38

29

COVER, REAR LOWER

47321-20C00

Unavailable

30

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

31

WASHER

09169-06037

$2.45

32

PLATE, FITTING

47153-19C01

$7.95
