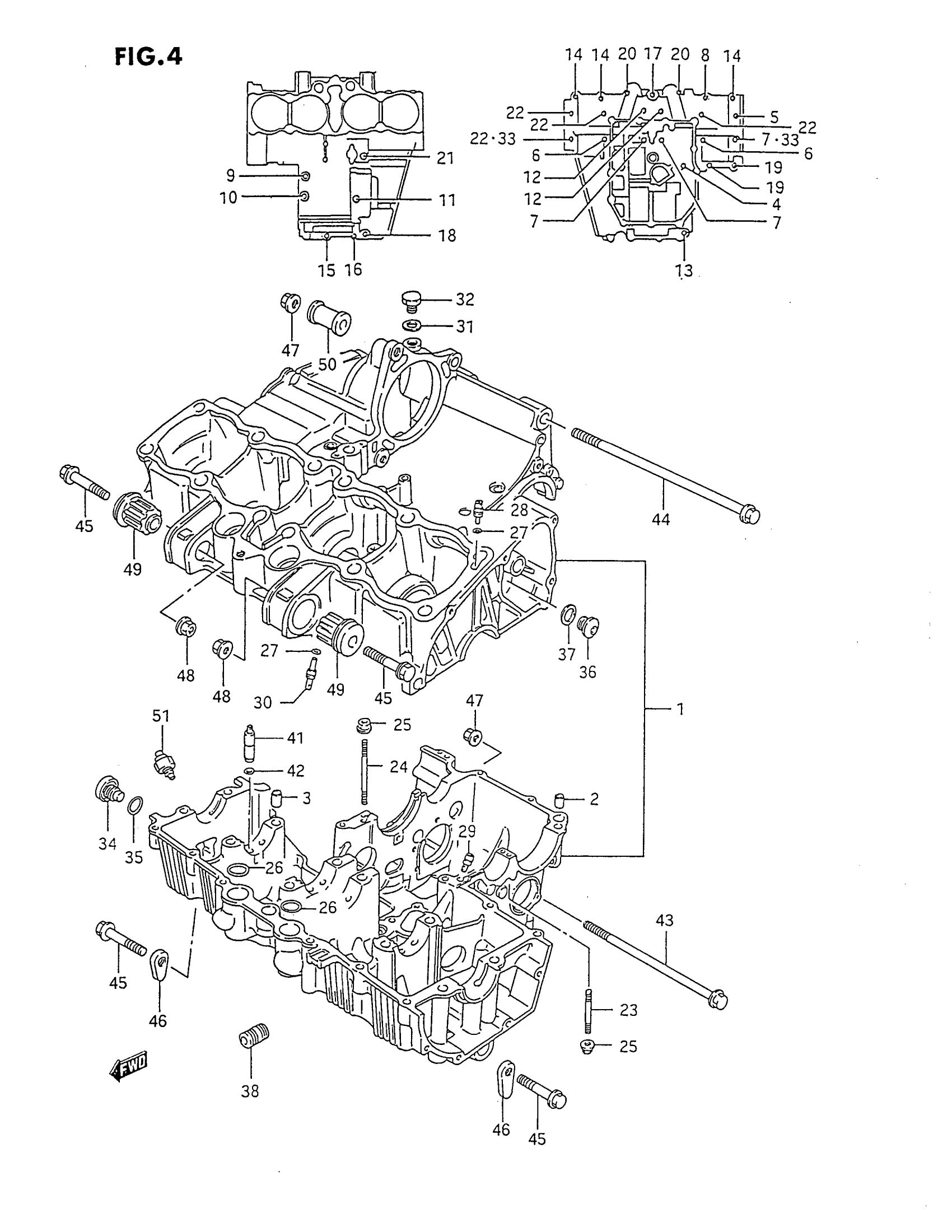

Suzuki GSX750FV (1997) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 40

11301-20821

Unavailable

2

PIN

09206-13004

$2.40

3

PIN

09206-11017

$6.30

4

BOLT (6X105)

09103-06163

Unavailable

5

BOLT (8X105)

09103-08097

$3.44

6

BOLT (8X125)

09103-08182

$5.72

7

BOLT (8X115)

09103-08098

$3.29

8

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

9

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

10

BOLT This part replaces 07130-06503.

07130-0650B

$4.10

11

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

12

BOLT This part replaces 07130-08653.

07130-0865B

$5.27

13

BOLT This part replaces 01550-08603.

01550-0860A

$4.17

14

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

15

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

16

BOLT

01550-06407

$2.69

17

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

18

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

19

BOLT This part replaces 01550-06553.

01550-0655B

$3.30

20

BOLT This part replaces 01550-06703.

01550-0670B

$4.25

21

BOLT This part replaces 01550-06803.

01550-0680B

$3.50

22

BOLT (8X95)

09103-08105

$3.87

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$3.23

25

NUT This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

O RING (D:1.2,ID:4)

09280-04004

$1.91

28

JET, OIL GALLERY HEAD

09493-14002

Unavailable

29

JET, OIL GALLERY GEAR SHIFT

09493-24010

$16.87

30

JET, OIL GALLERY PISTON

09493-26007

Unavailable

31

GASKET, HOLE PLUG

09168-12002

$1.59

32

PLUG, HOLE

09247-12103

$2.84

33

GASKET

09168-08021

$2.61

34

PLUG This part replaces 09248-16003.

09248-16007

$9.96

35

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

36

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

37

GASKET

09168-14002

$2.26

38

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

39

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-48B00-0E0

$9.34

40

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.8(B-10)

12228-48B00-0C0

$11.35

40

BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

40

BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

41

VALVE ASSY, PISTON OIL CONTRO

16430-27A00

Unavailable

42

O RING (D:1.2,ID:4.7)

09280-05007

$1.92

43

BOLT (10X130)

09103-10122

$8.38

44

BOLT (10X175)

09103-10151

$17.50

45

BOLT This part replaces 01580-10553.

01580-1055B

$5.37

46

NUT

09159-10020

$5.18

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

48

NUT This part replaces 08316-10103.

08316-1010B

$2.66

49

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$21.25

50

SPACER (L:27)

11610-20C00

$15.42

51

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D00.

37820-33D11

$25.13
