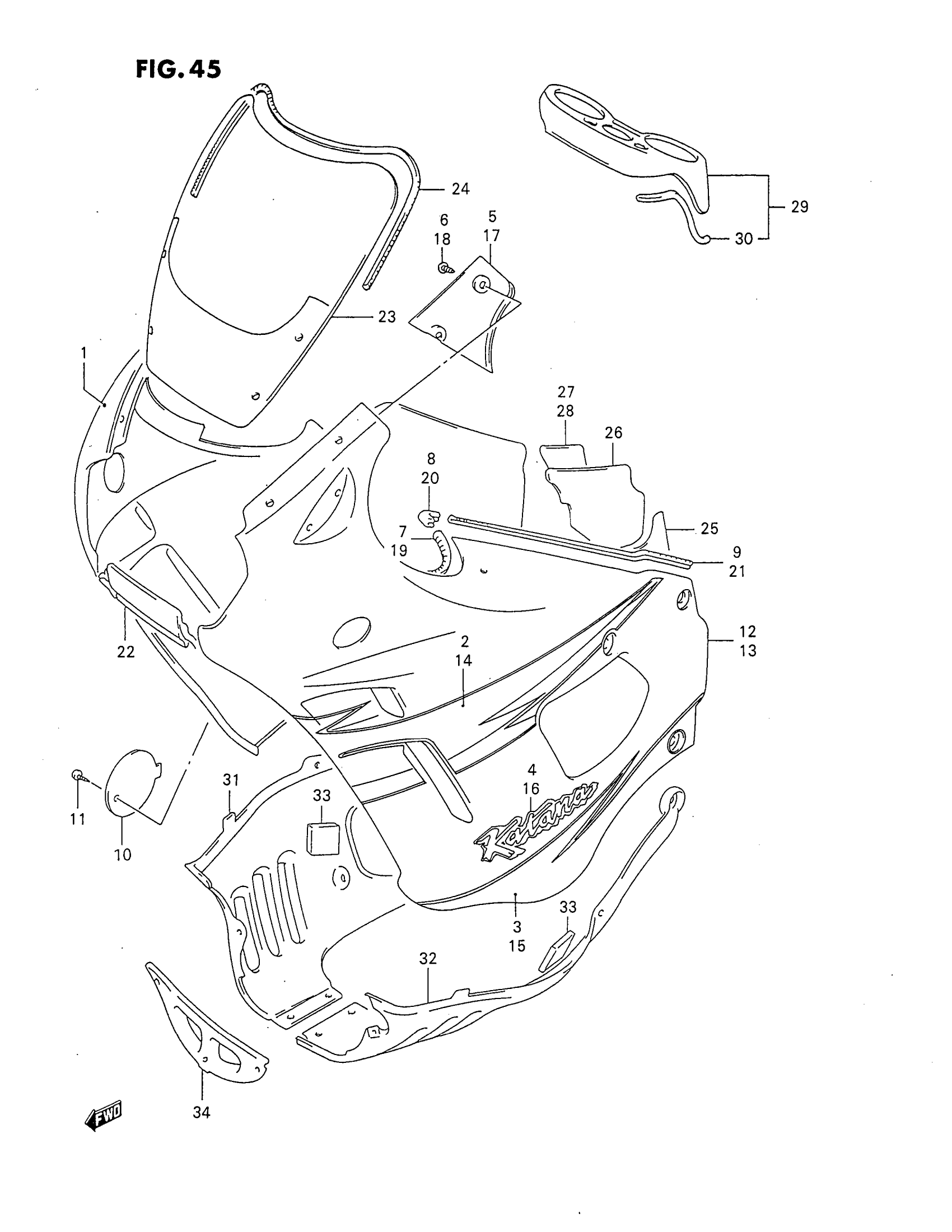

Suzuki GSX750FV (1997) COWLING BODY Diagram

#

Description
Price

1

COVER ASSY, COWL RH (BLACK)

94401-21CL0-33J

Unavailable

1

COVER ASSY, COWL RH (MAROON) | Includes Item(s) 2 - 11

94401-21CL0-22U

Unavailable

2

TAPE, SIDE UPPER RH | FOR 33J

68685-21C10-G2T

Unavailable

2

TAPE, SIDE UPPER RH | FOR 22U

68685-21C10-G2U

Unavailable

3

TAPE, SIDE LOWER RH | FOR 33J

68686-21C20-G2N

Unavailable

3

TAPE, SIDE LOWER RH | FOR 22U

68686-21C20-G2P

Unavailable

4

EMBLEM | FOR 33J

68681-21C40-G2R

Unavailable

4

EMBLEM | FOR 22U

68681-21C40-G2S

Unavailable

5

COVER, METER SIDE RH (BLACK)

94433-19C01-33J

Unavailable

5

COVER, METER SIDE RH (MAROON

94433-19C01-22U

Unavailable

6

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

7

MOLDING, FRONT | L:1000->300

94631-49310

Unavailable

8

JOINT

94438-19C00

Unavailable

9

MOLDING, REAR

94635-19C00

$8.53

10

LID, OIL (BLACK)

94435-19C01-33J

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 94435-19C01-22U.

94435-19C01

Unavailable

11

SCREW

09139-06030

$3.70

12

NO DESCRIPTION AVAILABLE This part replaces 94402-21CL0-33J.

94440-19C02-33J

Unavailable

12

COVER ASSY, COWL LH (MAROON)

94402-21CL0-22U

Unavailable

13

NO DESCRIPTION AVAILABLE | E33 This part replaces 94402-21CM0-33J.

94440-20C02-33J

Unavailable

13

COVER ASSY, COWL LH (MAROON) | E33; Includes Item(s) 14 - 21

94402-21CM0-22U

Unavailable

14

TAPE, SIDE UPPER LH | FOR 33J

68695-21C10-G2T

Unavailable

14

TAPE, SIDE UPPER LH | FOR 22U

68695-21C10-G2U

Unavailable

15

TAPE, SIDE LOWER LH | FOR 33J

68696-21C20-G2N

Unavailable

15

TAPE, SIDE LOWER LH | FOR 22U

68696-21C20-G2P

Unavailable

15

TAPE, SIDE LOWER LH | E33,FOR 33J

68696-21C30-G2N

Unavailable

15

TAPE, SIDE LOWER LH | E33,FOR 22U

68696-21C30-G2P

Unavailable

16

EMBLEM | FOR 33J

68681-21C40-G2R

Unavailable

16

EMBLEM | FOR 22U

68681-21C40-G2S

Unavailable

17

COVER, METER SIDE LH (BLACK)

94443-19C01-33J

Unavailable

17

COVER, METER SIDE LH (MAROON

94443-19C01-22U

Unavailable

18

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

19

MOLDING, FRONT | L:1000->300

94631-49310

Unavailable

20

JOINT

94438-19C00

Unavailable

21

MOLDING, REAR

94635-19C00

$8.53

22

PANEL, CENTER (BLACK)

94421-19C01-33J

Unavailable

22

PANEL, CENTER (MAROON)

94421-19C01-22U

Unavailable

23

SCREEN, WINDOW

94610-20C60

Unavailable

24

MOLDING | L:800->700

94631-18D01

Unavailable

25

SHEET, BALANCER NO.2 | E33

94574-20C00

Unavailable

25

SHEET, BALANCER NO.2 LH | E33

94584-20C10

Unavailable

26

BALANCER SHEET,RH | E33

94573-20C00

Unavailable

26

BALANCER SHEET,LH | E33

94583-20C00

Unavailable

27

CUSHION,RH

94576-20C00

Unavailable

28

CUSHION,LH

94586-20C00

Unavailable

29

COVER, METER | Includes Item(s) 30

94420-20C02

Unavailable

30

MOLDING

94635-20C00

Unavailable

31

COVER, UNDER RH (GRAY) | FOR 33J

94471-19C00-17U

Unavailable

31

COVER, UNDER RH (BLACK) | FOR 22U

94471-19C00-33J

Unavailable

32

COVER, UNDER LH (GRAY) | FOR 33J

94481-19C00-17U

Unavailable

32

COVER, UNDER LH (BLACK) | FOR 22U

94481-19C00-33J

Unavailable

33

CUSHION, REAR BAG This part replaces 94475-48B10.

94915-44E00

$12.65

34

COVER, FRONT

94475-19C01

Unavailable

35

REFER TO FIG.46 (G- 8) FOR

SPECIAL NOTE

Unavailable
