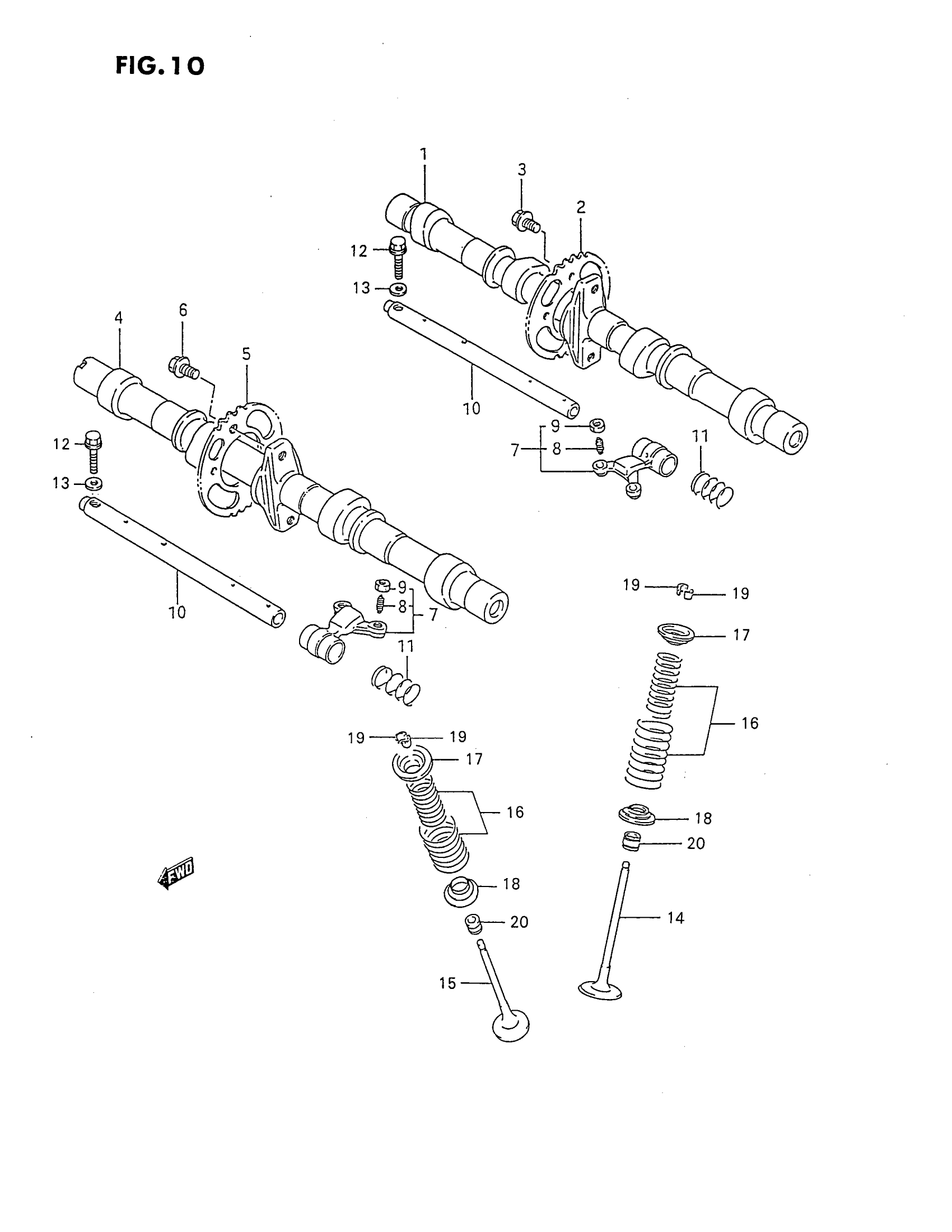

Suzuki GSX750FV (1997) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-20C00

Unavailable

2

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

3

BOLT (7X11.5)

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-20C00

Unavailable

5

SPROCKET, CAM SHAFT

12741-17C01

Unavailable

6

BOLT

09103-07001

$2.43

7

ARM, VALVE ROCKER | Includes Item(s) 8 - 9

12840-27A01

$76.68

8

SCREW

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT

01800-06303

Unavailable

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-17C02

Unavailable

15

VALVE, EXHAUST

12912-17C00

Unavailable

16

SPRING SET, VALVE

12920-17C00

Unavailable

17

RETAINER,VALVE This part replaces 12931-17C01.

12931-17C02

Unavailable

18

SEAT, SPRING

12933-17C00

Unavailable

19

COTTER, VALVE

12932-27A00

$2.26

20

OIL SEAL (5X10X8.7)

09289-05011

$6.32
