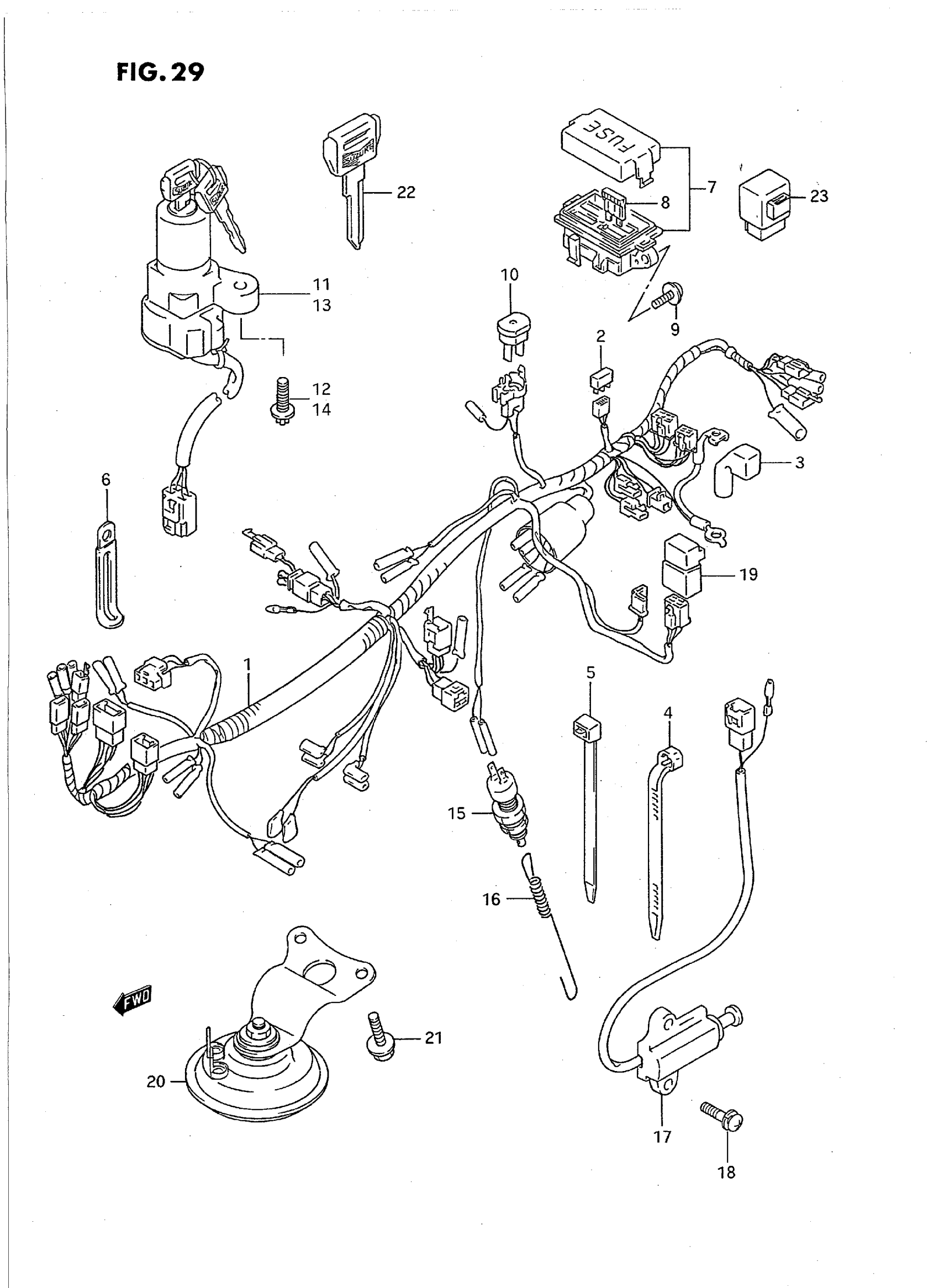

Suzuki GSX750FT (1996) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 36610-20C00.

36610-20CK0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L/M/N This part replaces 36610-20C02.

36610-20CK0

Unavailable

1

HARNESS, WIRING | MODEL P/R/S

36610-20C40

Unavailable

1

HARNESS, WIRING | MODEL T

36610-20C60

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY,MODEL K/L/M/N

36610-20C10

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY,MODEL P/R/S

36610-20C30

Unavailable

1

HARNESS, WIRING | CALIFORNIA ONLY,MODEL T; Includes Item(s) 2 - 3

36610-20C50

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

3

CAP, BATTERY (+) TERMINAL | MODEL K/P/R This part replaces 33624-27A00.

33624-43500

$6.22

3

CAP, BATTERY PLUS TERMINAL | MODEL S/T

33624-43500

$6.22

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:95)

09407-11401

$2.87

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.21

4

CLAMP (L:235) | CALIFORNIA ONLY

09407-25401

$4.21

5

CLAMP

09407-10403

Unavailable

6

CLAMP (L:127)

09404-08420

$2.90

7

FUSE BOX ASSY | MODEL K/L/M/N

36740-20C01

Unavailable

7

FUSE BOX ASSY | MODEL P/R This part replaces 36740-34C01.

36740-10D10

Unavailable

7

FUSE BOX ASSY | MODEL S/T; Includes Item(s) 8 - 8

36740-10D10

Unavailable

8

FUSE (10A) | MODEL K/L/M/NMODEL P/R/S/T

09481-10101

$0.68

8

.FUSE (25A) | MODEL P/R/S/T This part replaces 09481-25101.

09481-25103

Unavailable

9

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

10

BREAKER ASSY, CIRCUIT | MODEL K/L/M/N

36750-05A00

$40.74

11

LOCK ASSY, STEERING | MODEL K/L; Includes Item(s) 12 This part replaces 37100-17C00.

37100-26D03

$171.18

12

BOLT | MODEL K/L

09139-06026

$2.53

13

LOCK ASSY, STEERING | MODEL M/N This part replaces 37100-17C02.

37100-26D03

$171.18

13

LOCK ASSY, STEERING | MODEL P This part replaces 37100-33D00.

37100-26D03

$171.18

13

LOCK ASSY, STEERING | MODEL R This part replaces 37100-26D01.

37100-26D03

$171.18

13

LOCK ASSY, STEERING | MODEL S/T This part replaces 37100-26D02.

37100-26D03

$171.18

14

BOLT | MODEL M/N/P/R/S/T

09139-06026

$2.53

15

SWITCH ASSY, STOP LAMP

37740-24A00

$16.66

16

SPRING

09443-06005

$3.67

17

SWITCH ASSY,SID | MODEL K/L/M/N/P/R This part replaces 37840-20A11.

37840-44X52

$75.68

17

SWITCH ASSY,SID | MODEL S/T This part replaces 37840-44X50.

37840-44X52

$75.68

18

SCREW | MODEL K/L/M/N/P This part replaces 02112-36205.

02112-3620A

$2.07

18

BOLT | MODEL R/S/T This part replaces 01550-06203.

01550-0620A

$1.97

19

RELAY ASSY, SIDE STAND | MODEL K/L/M/N/P/R This part replaces 38740-24B10.

38740-24X50

$41.38

19

RELAY ASSY, SIDE STAND | MODEL S/T

38740-24X50

$41.38

20

HORN ASSY | MODEL K/L/M/N This part replaces 38500-19C00.

38500-19C01

Unavailable

20

HORN ASSY | MODEL P/R/S/T

38500-19C01

Unavailable

21

BOLT | MODEL K/L/M/N/P This part replaces 01117-06165.

01550-0616A

$1.97

21

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

$1.97

22

KEY, BLANK | OPT

37146-26D10

$56.10

23

CONTROLLER ASSY, FAN MOTOR | CALIFORNIA ONLY

38870-48B00

Unavailable
