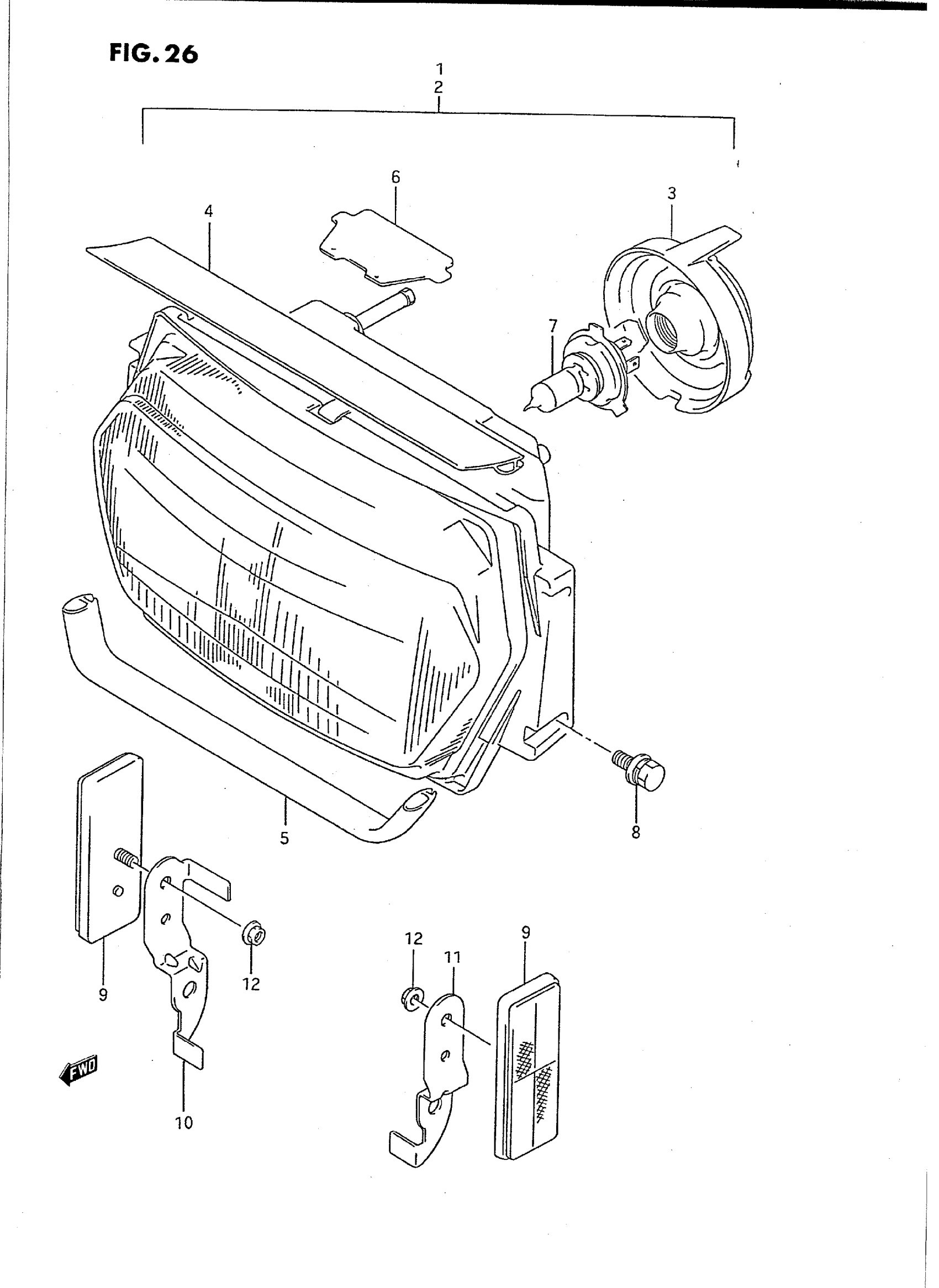

Suzuki GSX750FT (1996) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL K/L/M/N/P/R This part replaces 35100-20C10.

35100-20C10-999

Unavailable

2

HEADLAMP ASSY | MODEL S/T; Includes Item(s) 3 - 7

35100-20C10-999

Unavailable

3

COVER, SOCKET

35173-48B00

Unavailable

4

GASKET

35242-19C00

Unavailable

5

GASKET

35243-19C00

Unavailable

6

GASKET

35244-19C00

Unavailable

7

BULB (12V,60/55W)

09471-12060

$22.69

8

BOLT This part replaces 01580-06163.

01580-0616A

$2.43

9

REFLEX REFLECTOR, FRONT SIDE

35950-43431

$20.13

10

BRACKET, RH

35956-19C00

Unavailable

11

BRACKET, LH

35957-19C00

Unavailable

12

NUT | MODEL K/L/M/N/P This part replaces 08316-26055.

08316-2005A

$2.21

12

NUT | MODEL R/S/T This part replaces 08310-00053.

08310-0005A

$1.83
