2006 Suzuki GSX750FK4 Seat Diagram

← All diagrams

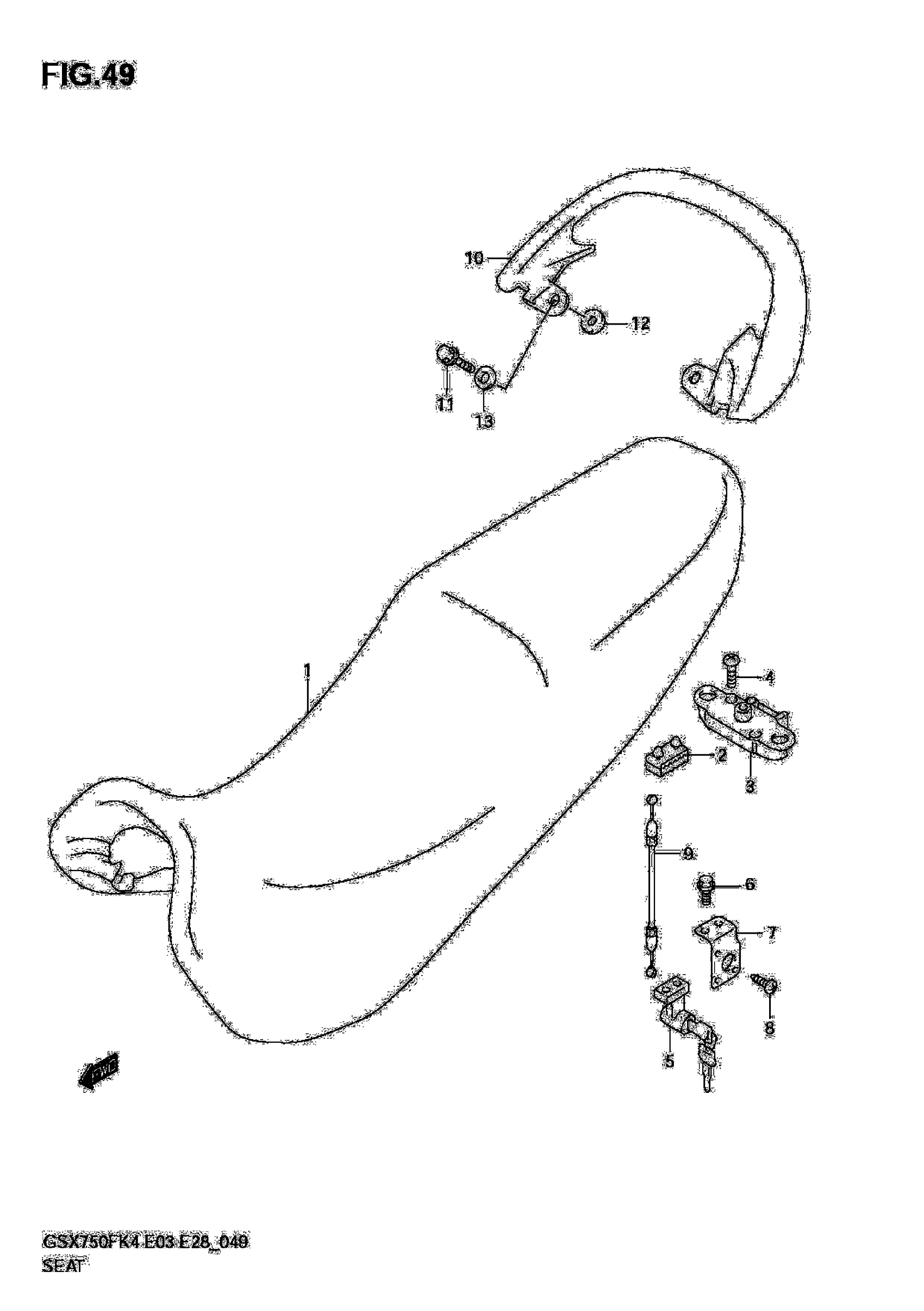

Find the part on the Seat diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX750FK4 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY This part replaces 45100-08F10-LN6.

45100-08F12-LN6

1
Out of stock

2

CUSHION

09321-08006

4
Out of stock

3

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

4

SCREW This part replaces 02122-06303.

02122-0630B

2
Out of stock

5

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

1
Out of stock

6

BOLT This part replaces 01547-05103.

01547-0510B

2
Out of stock

7

BRACKET, SEAT LOCK

45289-03F10

1
Out of stock

8

SCREW This part replaces 03141-14123.

03141-1412B

2
Out of stock

9

CABLE, SEAT LOCK

45280-43510

1
Out of stock

10

HANDLE, PILLION RIDER (BLUE) | MODEL K4

46211-03F11-YBA

1
Out of stock

10

HANDLE, PILLION RIDER (GRAY) | MODEL K4/K5

46211-03F11-YU8

1
Out of stock

10

HANDLE, PILLION RIDER (BLUE) | MODEL K5

46211-03F11-YAR

1
Out of stock

10

HANDLE, PILLION RIDER (BLACK) | MODEL K6

46211-03F11-019

1
Out of stock

10

HANDLE, PILLION RIDER (RED) | MODEL K6

46211-03F11-YHL

1
Out of stock

11

BOLT This part replaces 01551-08303.

01551-0830A

2
Out of stock

12

CUSHION (17X24X1.5)

46212-03F10

2
Out of stock

13

WASHER (8.5X24X2.3)

09160-08501

2
Out of stock
