2006 Suzuki GSX750FK4 Footrest Diagram

← All diagrams

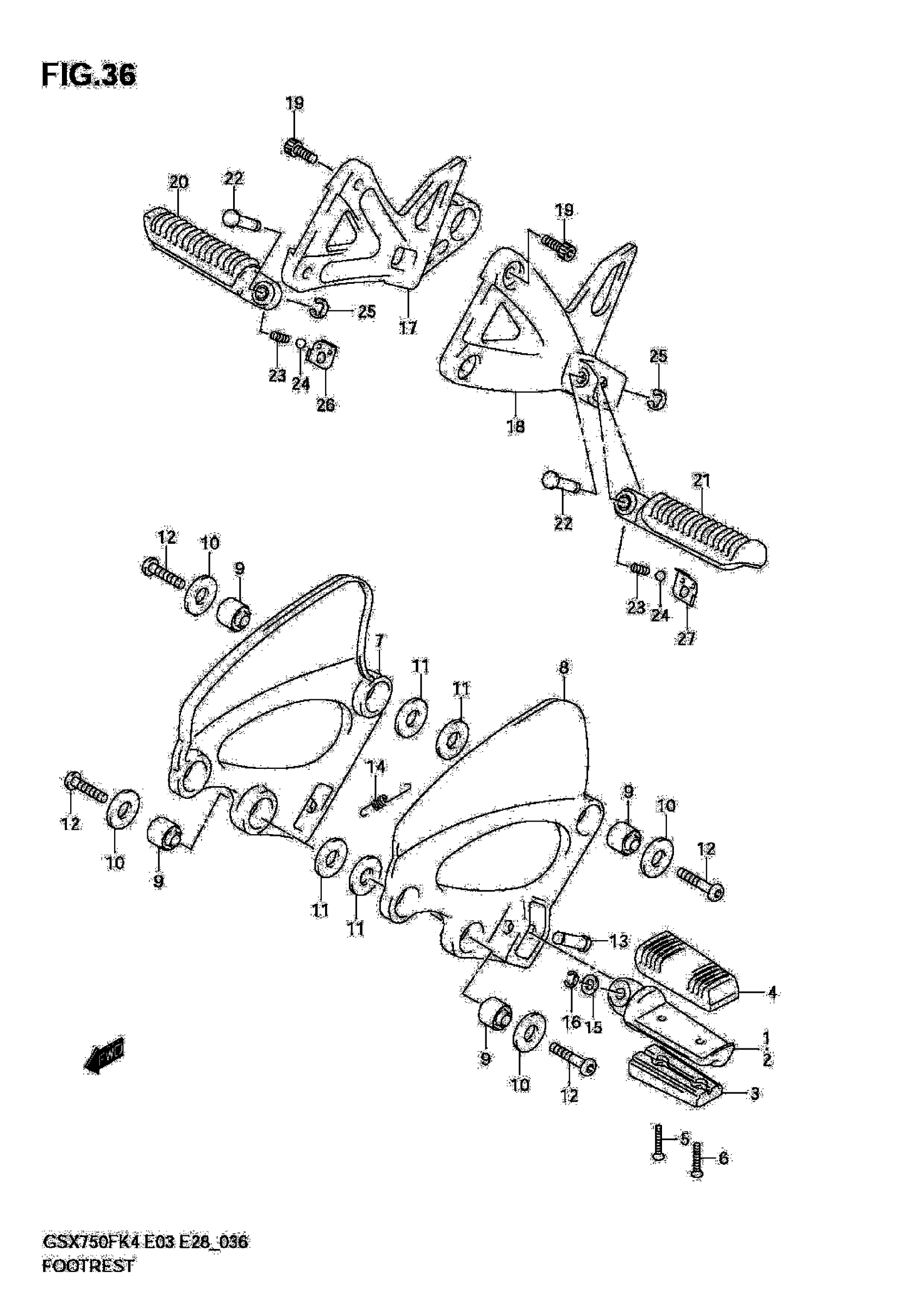

Find the part on the Footrest diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX750FK4 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST ASSY, FRONT RH

43510-20C00

1
Out of stock

2

FOOTREST ASSY, FRONT LH

43520-20C00

1
Out of stock

3

BAR, FRONT FOOTREST NO.2

43533-20C10

2
Out of stock

4

RUBBER

43550-48B10

2

$30.22

In stock

5

SCREW This part replaces 02122-05353.

02122-0535B

2
Out of stock

6

SCREW This part replaces 02122-05303.

02122-0530B

2
Out of stock

7

HOLDER, FRONT FOOTREST RH

43517-08FA0

1
Out of stock

8

HOLDER, FRONT FOOTREST LH

43527-08FA0

1
Out of stock

9

BUSH, HOLDER

09319-08045

6
Out of stock

10

WASHER, HOLDER OUTER

09161-13004

6
Out of stock

11

WASHER, HOLDER INNER

09161-17002

6
Out of stock

12

BOLT

09106-08147

6
Out of stock

13

PIN

09208-08010

2
Out of stock

14

SPRING

09443-10037

2
Out of stock

15

WASHER This part replaces 08322-01083.

08322-0108A

2
Out of stock

16

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

17

BRACKET, PILLION RH

43811-08F10

1
Out of stock

18

BRACKET, PILLION LH

43821-08F10

1
Out of stock

19

BOLT, BRACKET

09106-08150

4
Out of stock

20

BAR, PILLION FOOTREST RH

43610-08F00

1
Out of stock

21

BAR, PILLION FOOTREST LH

43710-08F00

1
Out of stock

22

PIN

09208-08011

2
Out of stock

23

SPRING

09440-05005

2
Out of stock

24

BALL

06111-07004

2
Out of stock

25

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

26

PLATE, PILLION RH

43816-23E00

1
Out of stock

27

PLATE, PILLION LH

43826-23E00

1
Out of stock
