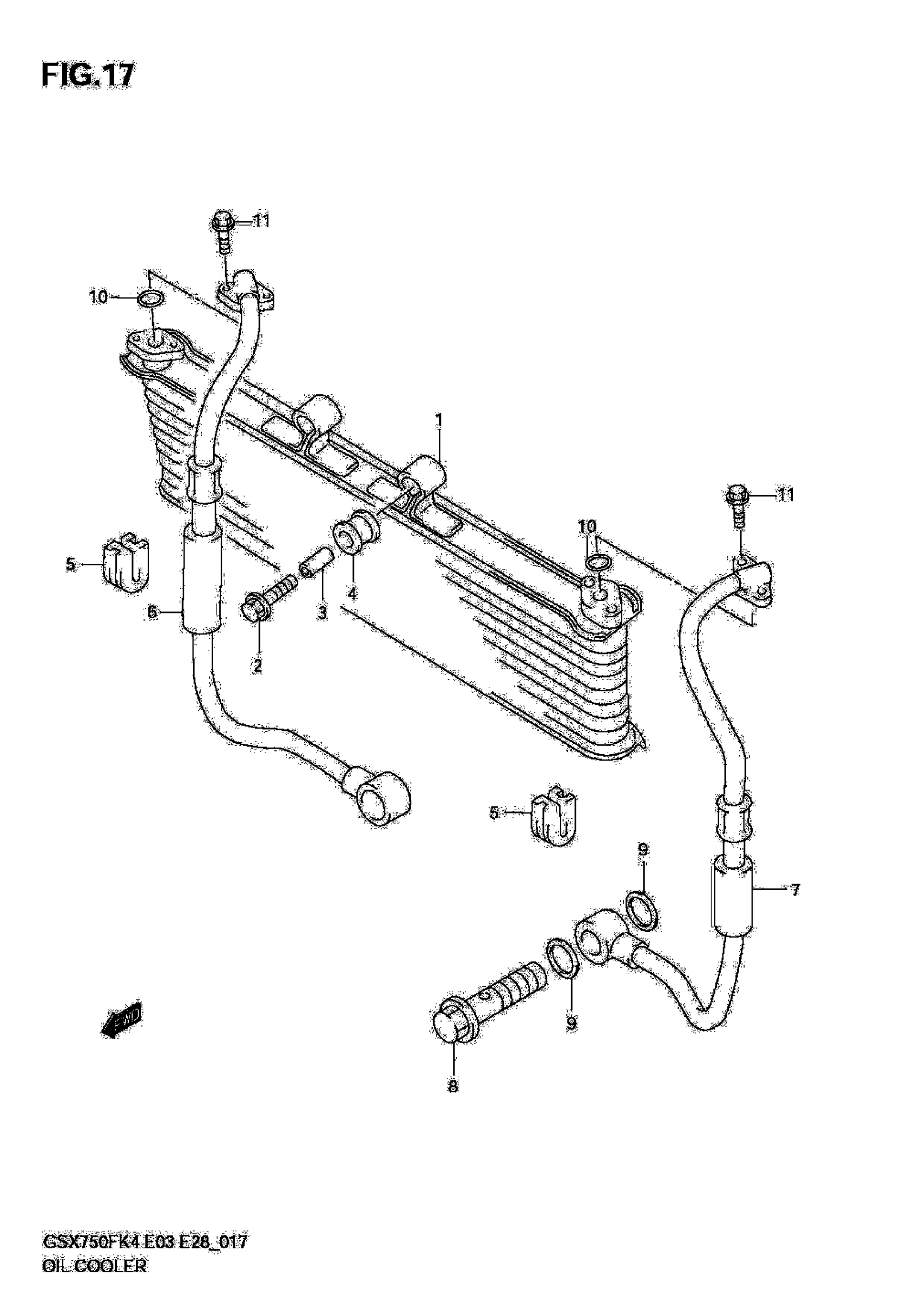

Suzuki GSX750FK4 (2006) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-08F10

Unavailable

2

BOLT (8X40)

09118-08131

$3.42

3

SPACER

09180-08304

Unavailable

4

CUSHION, NO.1

16629-27A01

Unavailable

5

CUSHION, NO.2

16628-27A00

$2.80

6

HOSE, OIL COOLER, RH

16460-08F10

$206.05

7

HOSE, OIL COOLER, LH

16470-08F10

Unavailable

8

BOLT, UNION (16X32)

09360-16002

$13.12

9

GASKET

09168-16002

$1.89

10

O RING

09280-12012

$4.19

11

BOLT This part replaces 07130-06163.

07130-0616B

$2.38
