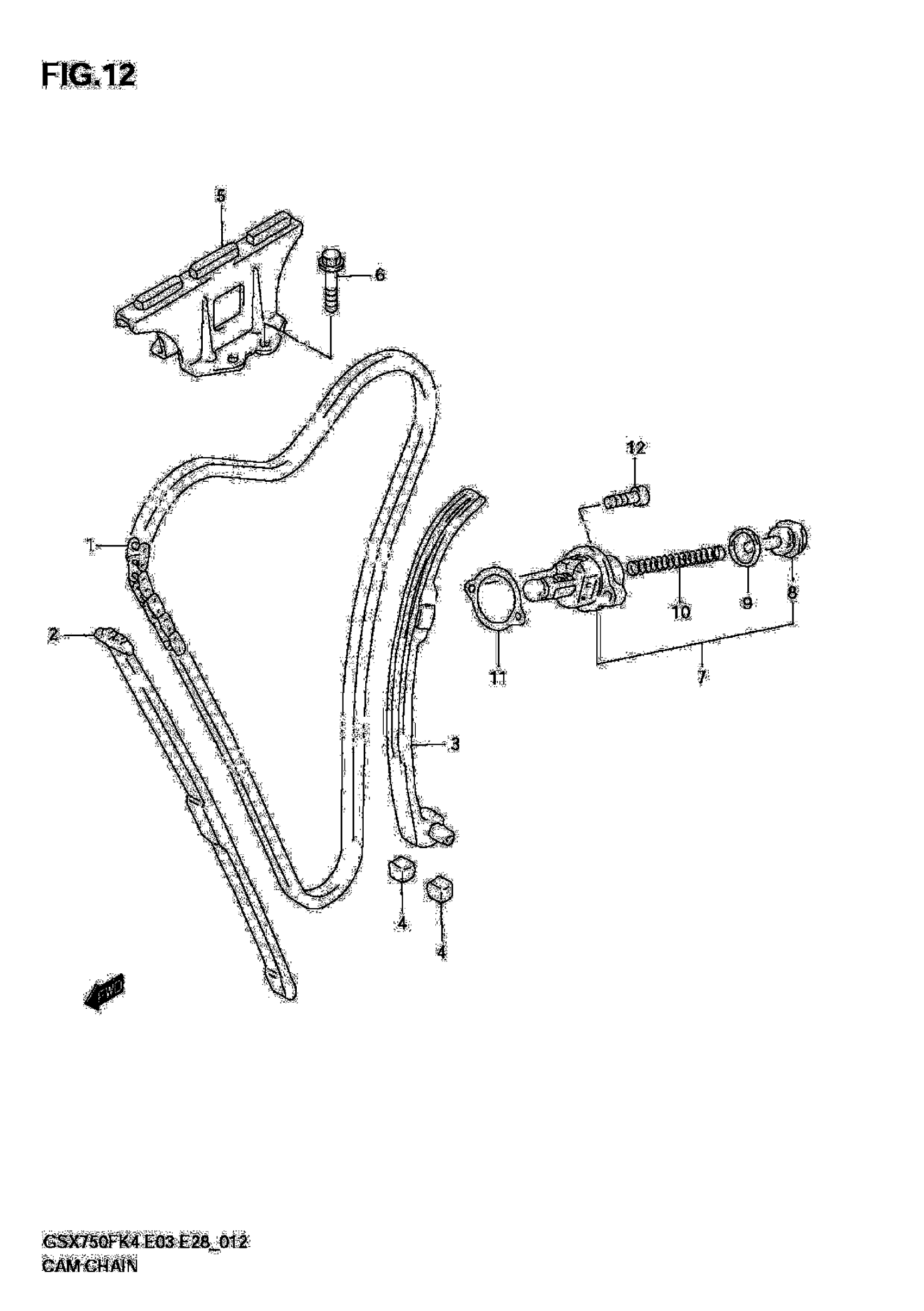

Suzuki GSX750FK4 (2006) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-26E00

$196.78

2

GUIDE, CAM CHAIN NO.1

12771-26E00

Unavailable

3

TENSIONER,CAM C This part replaces 12810-26E00.

12810-26E01

$85.83

4

CUSHION

12814-34200

$7.42

5

GUIDE, CAM CHAIN NO.2

12782-26E00

Unavailable

6

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

7

ADJUSTER ASSY, TENSIONER

12830-46E10

$176.20

8

PLUG

12834-27A00

Unavailable

9

GASKET

12832-27A00

$9.17

10

SPRING

12833-46E10

Unavailable

11

GASKET, ADJUSTER

12837-27A10

$3.79

12

BOLT This part replaces 07130-06253.

07130-0625B

$2.82
