2006 Suzuki GSX750FK4 Headlamp Diagram

← All diagrams

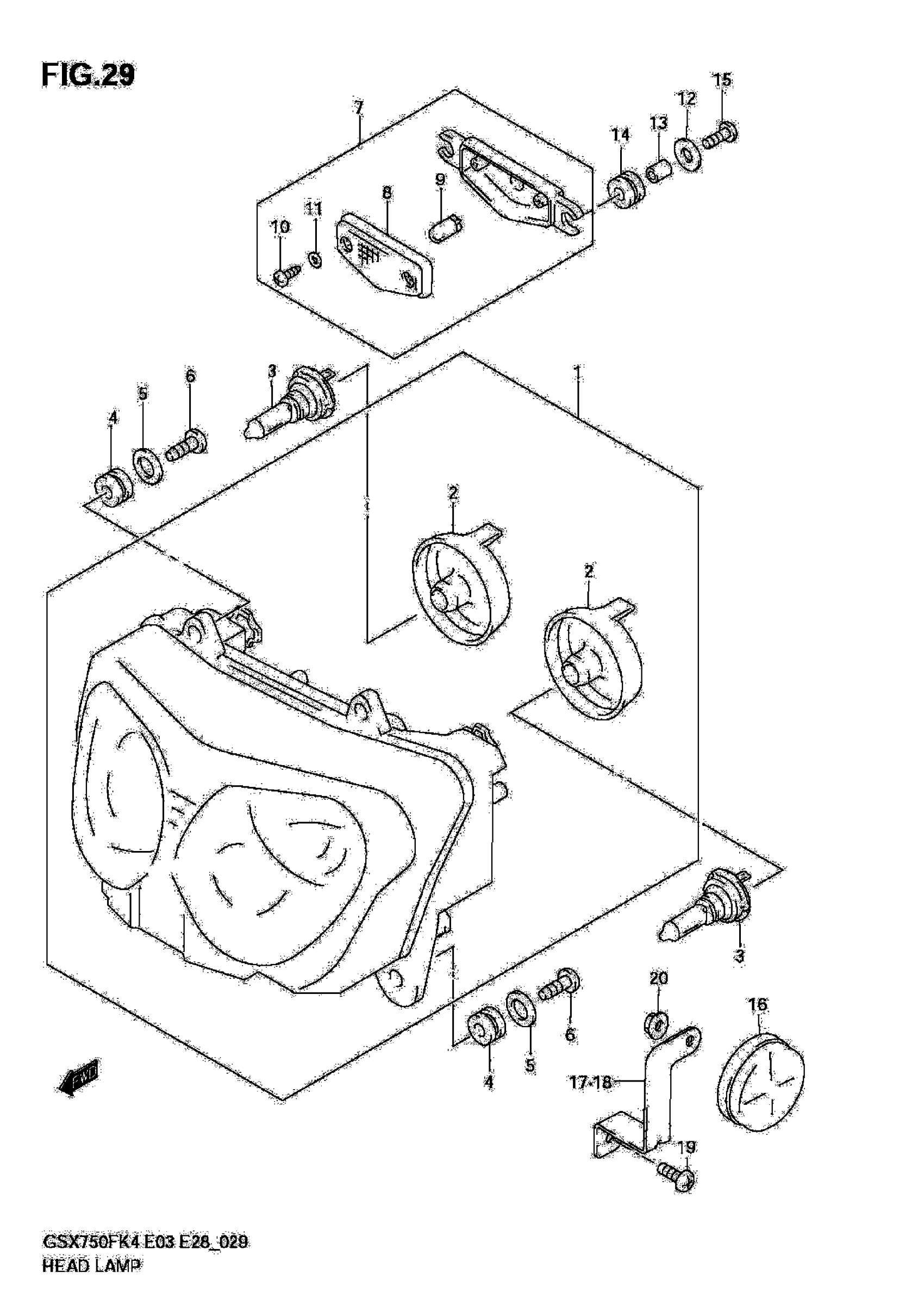

Find the part on the Headlamp diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX750FK4 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-08F30-999

1
Out of stock

2

COVER, SOCKET

35125-74F00

2
Out of stock

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

2
Out of stock

4

CUSHION

35137-33E00

4
Out of stock

5

WASHER (5.5X18X1.0)

09160-05045

4
Out of stock

6

SCREW This part replaces 03512-05163.

03511-0516A

4
Out of stock

7

LAMP ASSY, FRONT POSITION

36110-08F00

1
Out of stock

8

LENS

36112-08F00

1
Out of stock

9

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

1
Out of stock

10

SCREW This part replaces 03211-04123.

03211-0412A

2
Out of stock

11

WASHER

35128-37B00

2
Out of stock

12

WASHER (5.5X18X1.0)

09160-05045

2
Out of stock

13

SPACER (5.5X8X10.5)

09180-05048

2

$2.57

In stock

14

2

$2.23

In stock

15

SCREW, REAR This part replaces 02142-05203.

02142-0520B

2
Out of stock

16

REFLEX REFLECTOR ASSY

35950-14A00

2
Out of stock

17

BRACKET,FR SIDE This part replaces 35956-08F01.

35956-08F0V

1
Out of stock

18

BRACKET,FR SIDE This part replaces 35957-08F01.

35957-08F0V

1
Out of stock

19

SCREW This part replaces 02142-05103.

02142-0510B

2
Out of stock

20

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock
