2006 Suzuki GSX750FK4 Alternator Diagram

← All diagrams

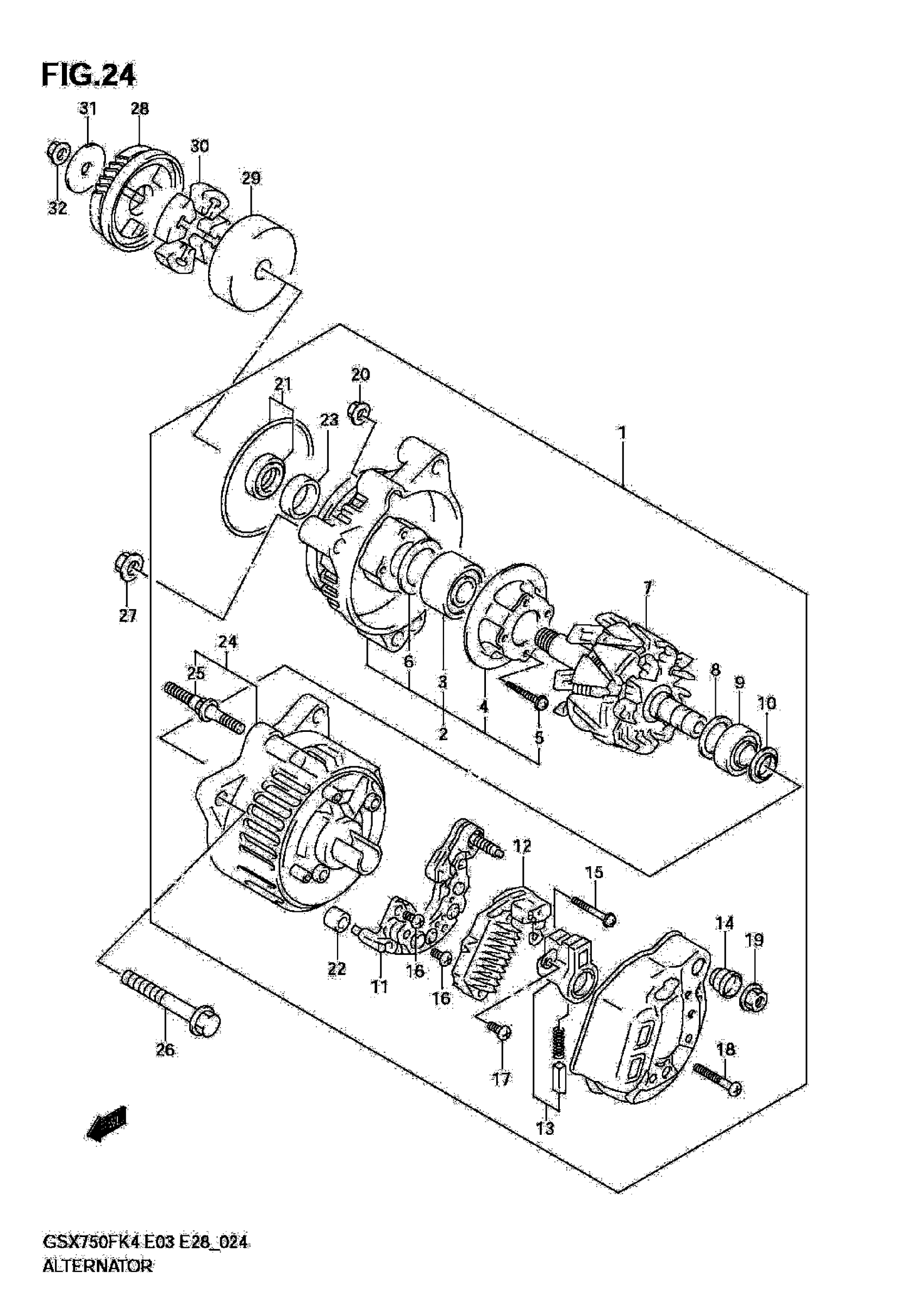

Find the part on the Alternator diagram for your 2006 Suzuki GSX750FK4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki GSX750FK4 Alternator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ALTERNATOR ASSY

31400-03F40

1
Out of stock

2

FRAME, DRIVE END

31580-03F00

1
Out of stock

3

BEARING

31612-06B00

1
Out of stock

4

RETAINER

31585-03F00

1
Out of stock

5

SCREW (4X14)

31586-03F00

4
Out of stock

6

COVER, BEARING

31613-48B00

1
Out of stock

7

ROTOR ASSY

31710-03F00

1
Out of stock

8

COVER, BEARING

31613-82610

1
Out of stock

9

BEARING

31612-48B00

1
Out of stock

10

COVER, NO.2

31613-27A10

1
Out of stock

11

HOLDER, RECTIFIER

31621-03F00

1
Out of stock

12

REGULATOR ASSY This part replaces 32500-03F10.

32500-03F11

1
Out of stock

13

HOLDER, BRUSH

31656-03F00

1
Out of stock

14

INSULATOR, TERMINAL

31514-85250

1
Out of stock

15

SCREW This part replaces 02112-34253.

02112-3425B

3
Out of stock

16

6

$1.67

In stock

17

SCREW

02112-04087

1

$1.20

In stock

18

SCREW This part replaces 02112-04253.

02112-0425B

3
Out of stock

19

NUT This part replaces 08361-15063.

08361-1506A

1
Out of stock

20

NUT This part replaces 08316-10053.

08316-1005A

2
Out of stock

21

SERVICE KIT, A | FOR O RING

31780-27X50

1
Out of stock

22

SERVICE KIT, B | FOR DAMPER RUBBER

31780-03F02

1
Out of stock

23

SPACER

31776-06B00

1
Out of stock

24

FRAME, END

31611-03F40

1
Out of stock

25

STUD BOLT

31587-85250

2
Out of stock

26

BOLT This part replaces 01550-08653.

01550-0865A

3
Out of stock

27

NUT This part replaces 08361-35068.

08361-3506A

1
Out of stock

28

GEAR, GENERATOR DRIVEN (NT:30)

22730-19C02

1
Out of stock

29

HOUSING DAMPER

22733-27A05

1
Out of stock

30

DAMPER

21231-06B00

4
Out of stock

31

WASHER

08211-10283

1
Out of stock

32

NUT This part replaces 08316-20103.

08316-2010B

1
Out of stock
