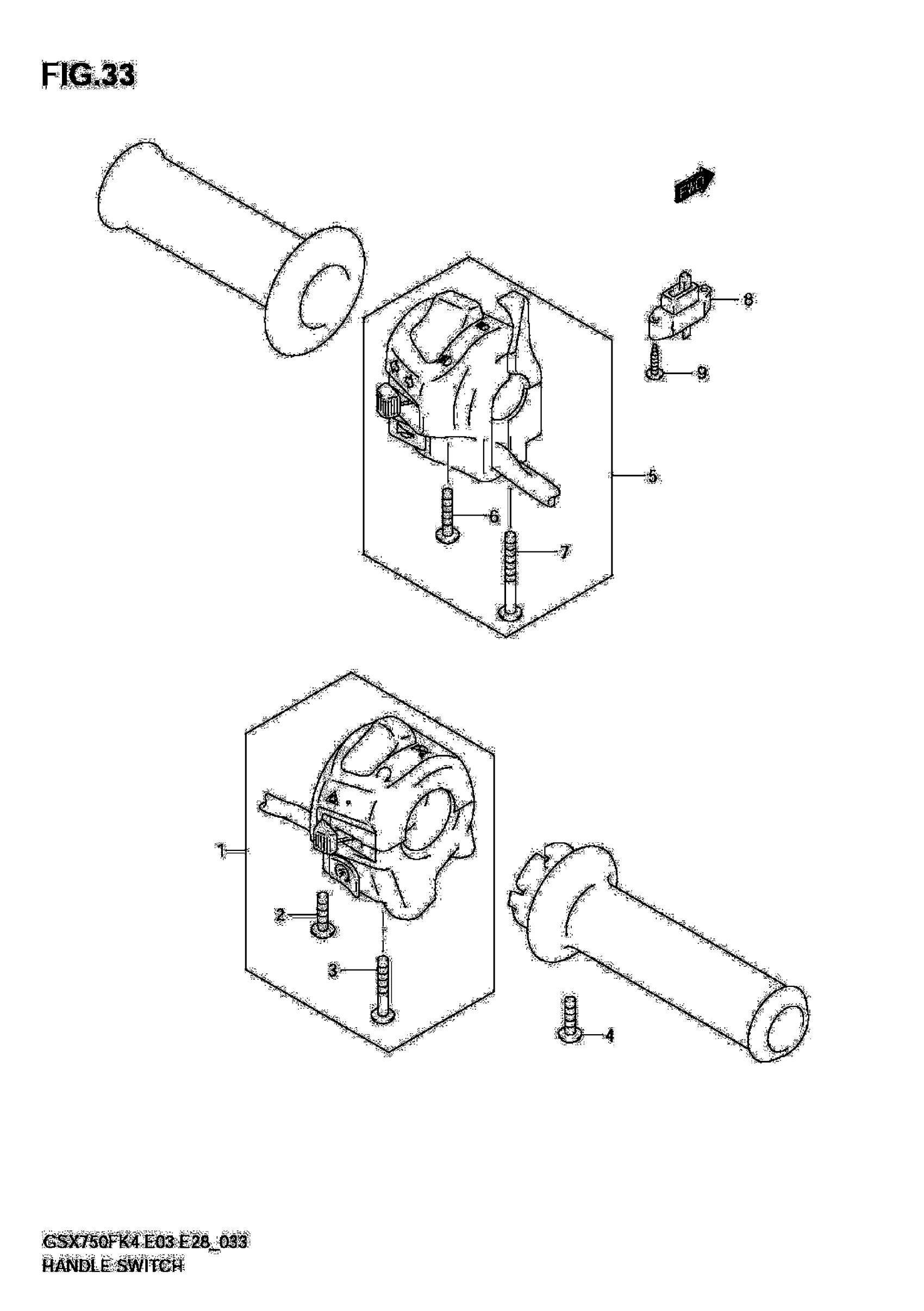

Suzuki GSX750FK4 (2006) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE, RH | MODEL K4

37200-33E51

$198.48

1

SWITCH ASSY, HANDLE, RH | MODEL K5/K6

37200-33E60

$139.83

2

SCREW This part replaces 02112-05303.

02112-0530A

$1.93

3

SCREW This part replaces 02112-05503.

02112-0550B

$2.40

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.43

5

SWITCH ASSY, HANDLE, LH

37400-26E11

$261.62

6

SCREW, PIVOT This part replaces 02112-05253.

02112-0525A

$1.45

7

.SCREW This part replaces 02112-05453.

02112-0545B

$2.24

8

SWITCH ASSY, CLUTCH

37560-38A00

$16.94

9

SCREW, CLUTCH SWITCH

09132-03017

$2.27
