2005 Suzuki GSX750F Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2005 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

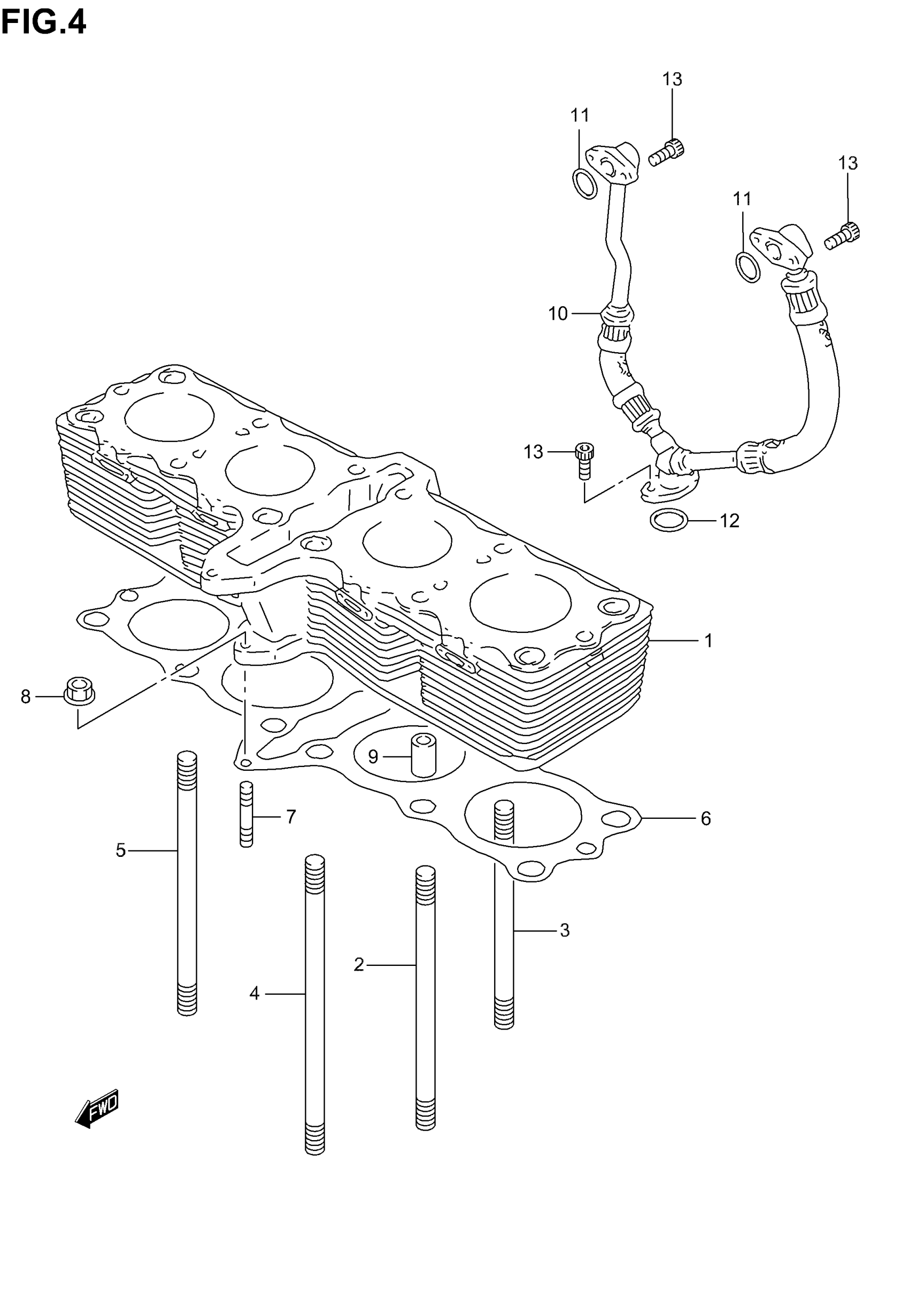

2005 Suzuki GSX750F Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER | E3,E28

11210-07D10

1
Out of stock

1

CYLINDER | E33

11210-08F10

1
Out of stock

2

STUD BOLT (10X150)

09108-10144

7
Out of stock

3

STUD BOLT (10X143)

09108-10073

2
Out of stock

4

STUD BOLT (10X157)

09108-10099

2
Out of stock

5

STUD BOLT (10X150)

09108-10144

1
Out of stock

6

GASKET, CYLINDER

11241-27A04

1
Out of stock

7

STUD BOLT This part replaces 01421-06203.

01421-0620A

1
Out of stock

8

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

9

PIN

09206-13017

2
Out of stock

10

HOSE, OIL HEAD COOLER

11328-27A04

1
Out of stock

11

O RING (D:2.5,ID:13.8)

09280-14011

2
Out of stock

12

O-RING (D:2.4,ID:15.8)

09280-15007

1
Out of stock

13

BOLT This part replaces 07130-06163.

07130-0616B

6
Out of stock
