2005 Suzuki GSX750F Crankshaft Diagram

← All diagrams

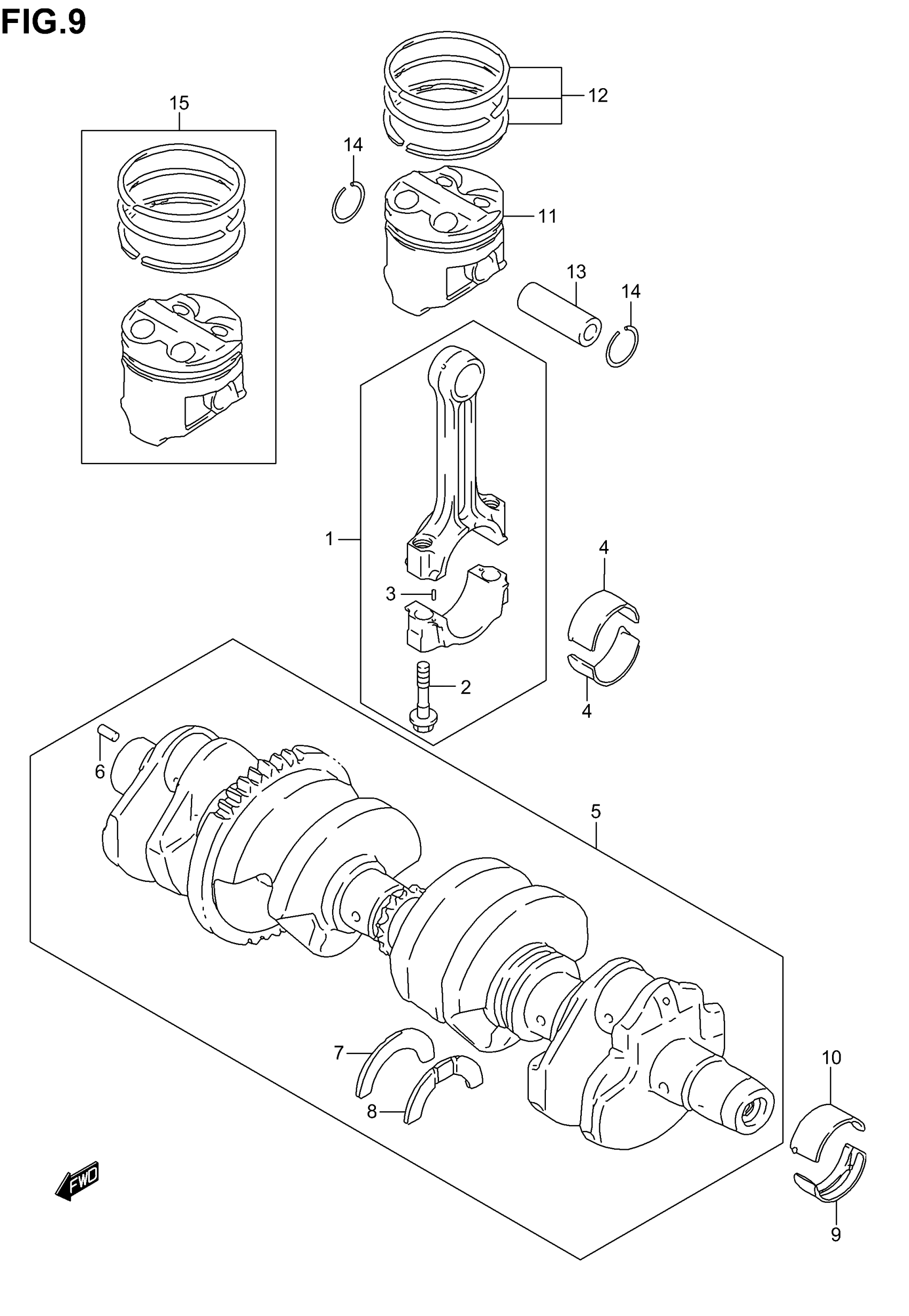

Find the part on the Crankshaft diagram for your 2005 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX750F Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING | Includes Item(s) 2 - 3

12160-17E01

4
Out of stock

2

BOLT

12163-27A52

8
Out of stock

3

PIN, CONNROD

12165-27A50

8
Out of stock

4

BEARING, CRANK PIN (GREEN)

12164-26E00-0A0

8
Out of stock

4

BEARING, CRANK PIN (BLACK)

12164-26E00-0B0

8
Out of stock

4

BEARING, CRANK PIN (BROWN)

12164-26E00-0C0

8
Out of stock

4

BEARING, CRANK PIN (YELLOW)

12164-26E00-0D0

8
Out of stock

5

CRANKSHAFT SET | Includes Item(s) 6 - 8

12000-03810

1
Out of stock

6

PIN (4X13.8)

04221-04089

1
Out of stock

7

BEARING, THRUST RH (BROWN)

12228-43414

1
Out of stock

8

BEARING, THRUST LH (RED)

12228-43411

1
Out of stock

8

BEARING, THRUST LH (BLACK)

12228-43412

1
Out of stock

8

BEARING, THRUST LH (BLUE)

12228-43413

1
Out of stock

8

BEARING, THRUST LH (GREEN)

12228-43414

1
Out of stock

8

BEARING, THRUST LH (YELLOW)

12228-43415

1
Out of stock

8

BEARING, THRUST LH (WHITE)

12228-43416

1
Out of stock

9

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

6
Out of stock

9

BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0

6
Out of stock

9

BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0

6
Out of stock

9

BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0

6
Out of stock

10

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

6
Out of stock

10

BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0

6
Out of stock

10

BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0

6
Out of stock

10

BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0

6
Out of stock

11

PISTON

12111-03F00-0F0

4
Out of stock

12

RING SET, PISTON

12140-03F00

4
Out of stock

13

PIN, PISTON

12151-07D00

4
Out of stock

14

CIRCLIP This part replaces 09381-18003.

09381-18005

8
Out of stock

15

PISTON SET (OS:0.5) THERE IS A PLAIN BEARING KIT AVAILABLE FOR THIS MODEL. PART NUMBER 99104-BRGKT-017 | OPT

12100-03F00-050

4
Out of stock
