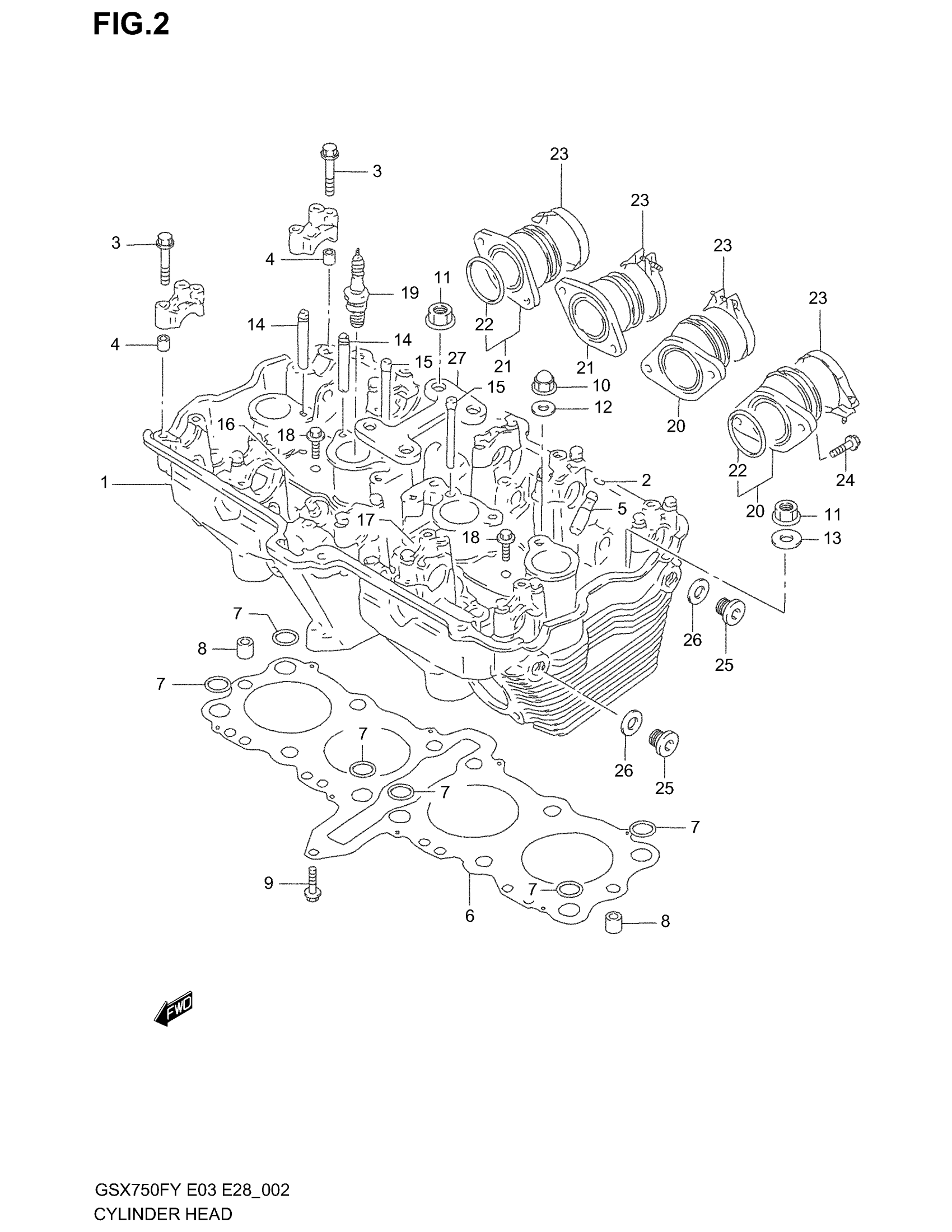

Find the part on the Cylinder Head diagram for your 2003 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX750F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-17D20

1
Out of stock

1

HEAD ASSY, CYLINDER | E33; Includes Item(s) 2 - 4

11100-08F10

1
Out of stock

2

.RING (10X85)

09381-10004

16
Out of stock

3

BOLT (6X39)

09103-06026

20
Out of stock

4

PIN

09206-08001

20
Out of stock

5

GUIDE, VALVE (OS:0.3) | OPT

11116-06B70

16
Out of stock

6

GASKET, CYLINDER HEAD

11141-17D10

1
Out of stock

7

O RING

11143-06B00

6
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

10

NUT

09159-10069

4
Out of stock

11

NUT This part replaces 08316-10103.

08316-1010B

8
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

4
Out of stock

14

PIPE, OIL NO.1,2

11131-27A00

4
Out of stock

15

PIPE, OIL NO.3

11133-27A00

2
Out of stock

16

PLATE, OIL PIPE RH

11135-27A02

1
Out of stock

17

PLATE, OIL PIPE LH

11136-27A02

1
Out of stock

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

4
Out of stock

19

4

$11.47

In stock

19

SPARK PLUG (DENSO,U27ESR-N) This part replaces 09482-00411.

09482-00459

4
Out of stock

19

4

$10.51

In stock

19

4

$14.37

In stock

19

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

4
Out of stock

19

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

4
Out of stock

20

PIPE, INTAKE LH

13101-08F00

2
Out of stock

21

2

$65.10

In stock

22

O RING (D:2.4,ID:41.7)

09280-42003

4
Out of stock

23

CLAMP

09402-52208

4
Out of stock

24

BOLT, EXHAUST COVER This part replaces 07120-06163.

07120-0616B

8
Out of stock

25

PLUG, CYLINDER HEAD

09248-14010

4
Out of stock

26

GASKET

09168-14002

4
Out of stock

27

PLATE, HEAD REINFORCEMENT

11138-40C00

1
Out of stock
