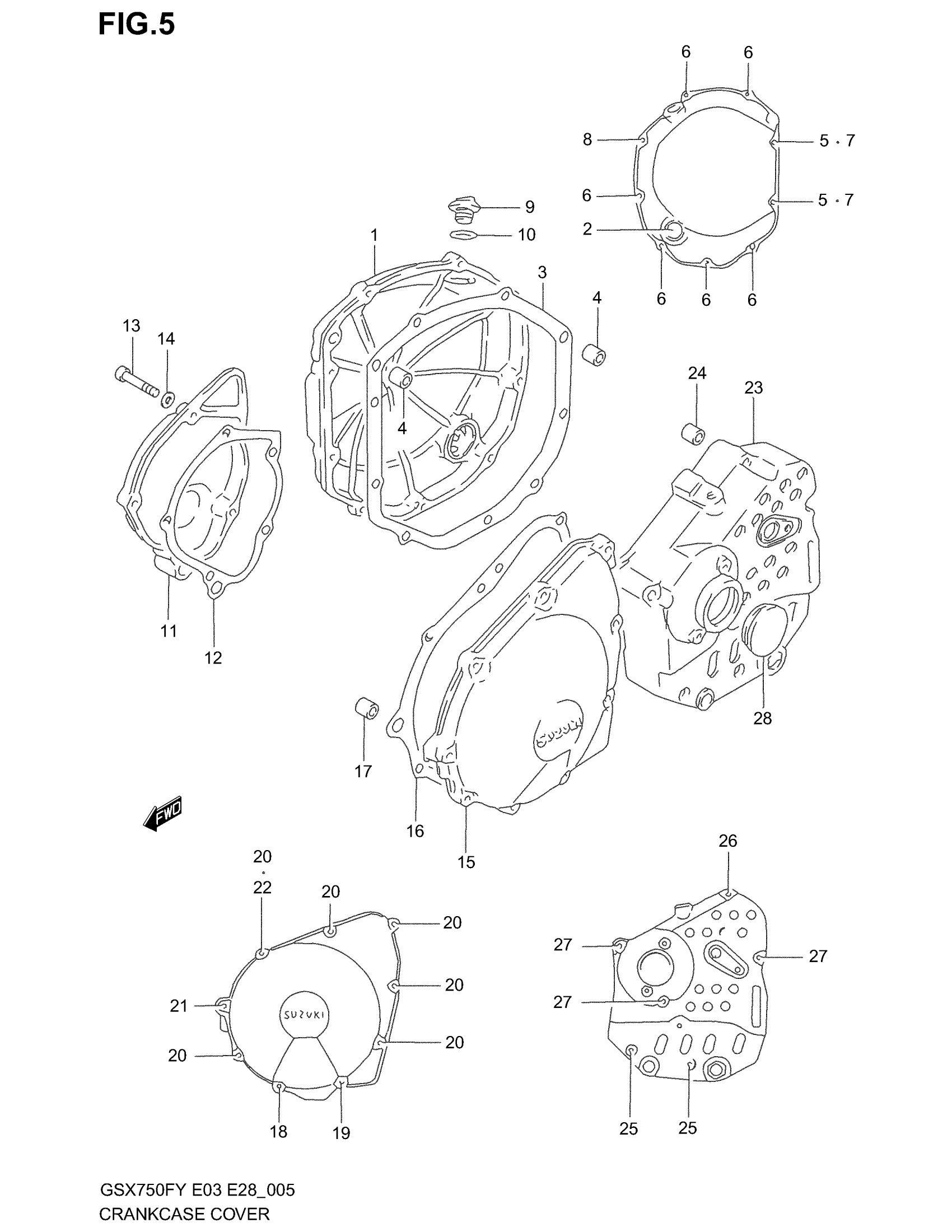

Suzuki GSX750F (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-26E00

$322.78

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-27A20

$13.01

4

PIN

04211-09189

$1.64

5

GASKET (5.8X11X1.2) | %E.NO.108590

09168-06024

$2.19

5

GASKET (5.8X13X1.2) | E.NO.108591%

09168-06023

$2.01

6

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

7

BOLT This part replaces 07130-06303.

07130-0630B

$3.04

8

BOLT This part replaces 07130-06353.

07130-0635B

$3.04

9

.PLUG | MODEL W/X/Y/K1/K2 This part replaces 09259-20008.

09259-20008-XC0

$6.76

9

PLUG,ENGINE OIL FILLER | MODEL K3

11971-25D00

$4.67

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

11

COVER, SIGNAL GENERATOR | MODEL W/X This part replaces 11381-26D10.

11381-26D11

$72.28

11

COVER, SINGAL GENERATOR | MODEL Y/K1/K2/K3

11381-26D11

$72.28

12

GASKET

11491-27A30

$7.69

13

BOLT (6X23)

09106-06082

$3.30

14

GASKET (5.8X11X1.2) | %E.NO.108590

09168-06024

$2.19

14

GASKET (5.8X13X1.2) | E.NO.108591%

09168-06023

$2.01

15

COVER, STARTER GEAR

11351-26E01

$218.63

16

GASKET, GEAR COVER

11483-27A20

$10.24

17

PIN

09206-11017

$6.85

18

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

19

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$2.80

20

BOLT This part replaces 07130-06253.

07130-0625B

$2.80

21

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.10

22

GASKET (5.8X11X1.2) | %E.NO.108590

09168-06024

$2.19

22

GASKET (5.8X13X1.2) | E.NO.108591%

09168-06023

$2.01

23

COVER, ENGINE SPROCKET

11361-19E00

$152.68

24

PIN

04211-09129

$1.64

25

BOLT This part replaces 07130-06353.

07130-0635B

$3.04

26

BOLT This part replaces 07130-06503.

07130-0650B

$4.45

26

BOLT | E33 This part replaces 07130-06703.

07130-0670B

$3.52

27

BOLT This part replaces 07130-06653.

07130-0665B

$3.47

28

CAP, CLUTCH RELEASE

09250-30003

$3.52
