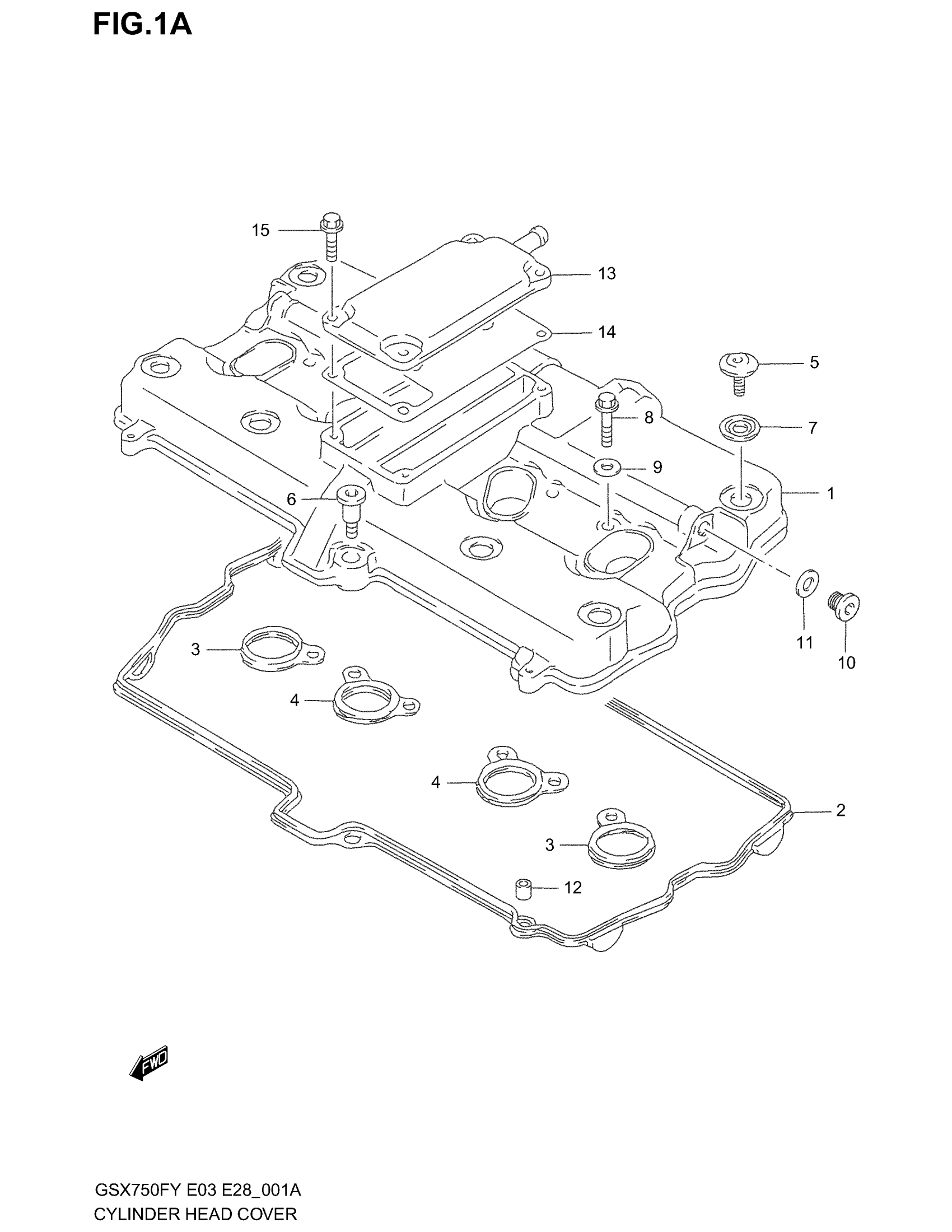

Suzuki GSX750F (2003) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-26E01

Unavailable

2

GASKET, HEAD COVER NO.1

11173-27A02

$41.29

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.50

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$6.91

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.19

6

BOLT (L:19)

09106-07010

$4.38

7

WASHER

09161-11008

$4.17

8

BOLT AND GASKET | %F.NO.W2101398 !11180-27820 BOLT AND GASKET SET This part replaces 09360-08009.

11180-27820

Unavailable

8

BOLT, UNION | F.NO.W2101399%

11181-27E00

$4.47

9

GASKET (8.2X14X1) | %F.NO.W2101398 This part replaces 09168-08008.

09168-08016

$1.70

9

GASKET | F.NO.W2101399%

09168-08029

$2.39

10

PLUG, HEAD COVER

09248-12004

$8.63

11

GASKET

09168-12002

$1.63

12

PIN

04221-08129

$2.07

13

COVER, BREATHER

11176-31301

Unavailable

14

GASKET, BREATHER COVER

11177-27A00-H17

$8.03

15

BOLT This part replaces 01550-06203.

01550-0620A

$2.01
