1993 Suzuki GSX750F Seat Diagram

← All diagrams

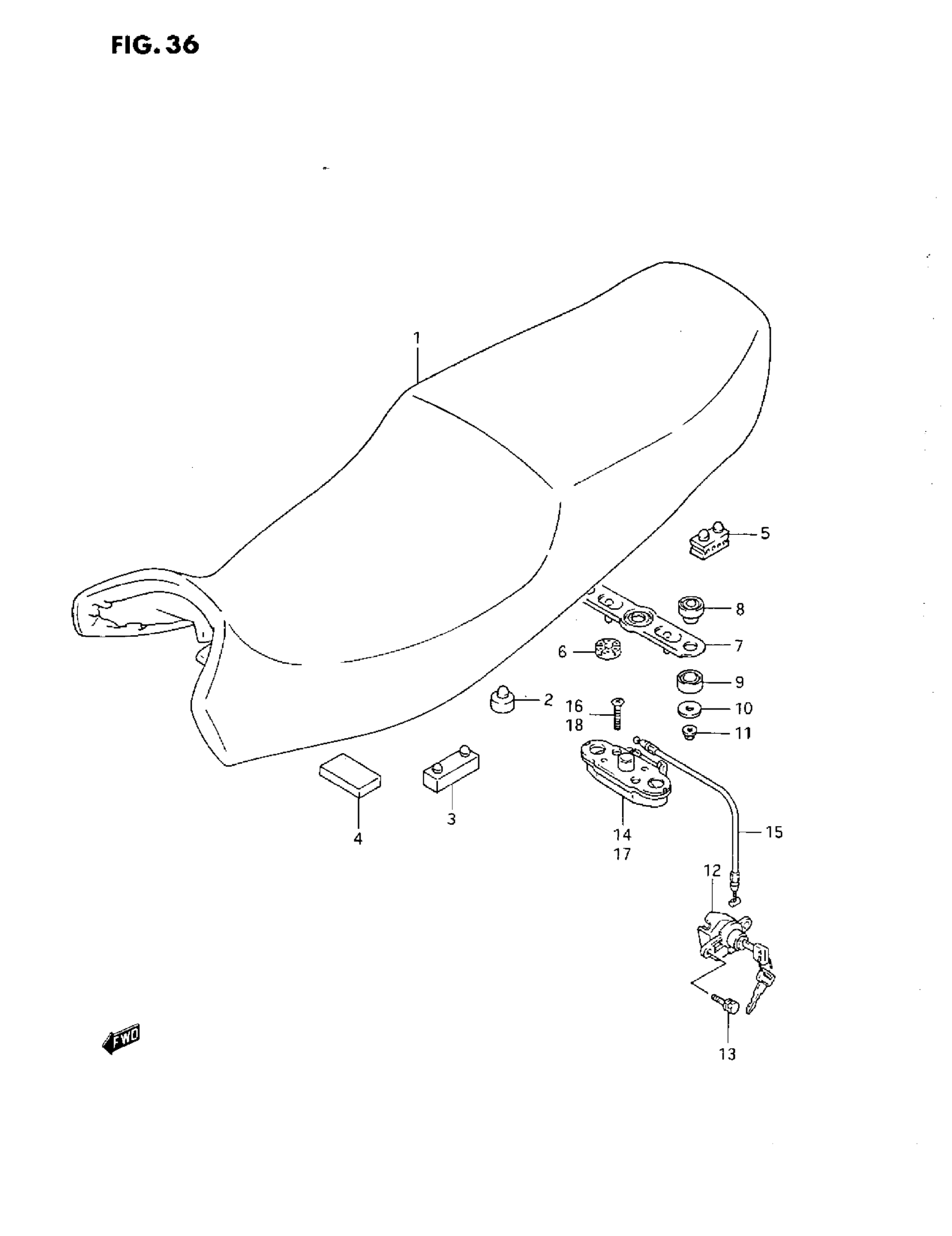

Find the part on the Seat diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX750F Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | MODEL K This part replaces 45100-20C00-58R.

45100-20C06-58R

1
Out of stock

1

SEAT ASSY | MODEL L This part replaces 45100-20C02-58R.

45100-20C06-58R

1
Out of stock

1

SEAT ASSY | MODEL M/N This part replaces 45100-20C04-58R.

45100-20C06-58R

1
Out of stock

1

SEAT SET (BLACK) | MODEL P This part replaces 45100-20C20-58R.

45100-20C21-58R

1
Out of stock

1

SEAT SET (BLACK) | MODEL R This part replaces 45100-20C21-6VS.

45100-20C21-58R

1
Out of stock

2

CUSHION | MODEL K/L

09321-10012

1
Out of stock

3

CUSHION | MODEL K/L

45149-43500

2
Out of stock

4

CUSHION

94982-29400

1
Out of stock

5

CUSHION | MODEL K/L

45149-31300

2
Out of stock

5

CUSHION | MODEL M/N/P/R

45149-31300

9
Out of stock

6

CUSHION

45213-13601

2
Out of stock

7

STRIKER, SEAT LOCK

45210-48B20

1
Out of stock

8

CUSHION, STRIKER UPPER

09320-10038

2
Out of stock

9

CUSHION, STRIKER LOWER

09320-14017

2
Out of stock

10

WASHER

08212-06201

2
Out of stock

11

NUT This part replaces 08316-26066.

08316-1006B

2
Out of stock

12

CAP SET,SEAT | MODEL K/L This part replaces 45700-19C00-KEY.

45700-19841

1
Out of stock

12

CAP SET,SEAT | MODEL M/N/P/R This part replaces 45700-19840.

45700-19841

1
Out of stock

13

BOLT | MODEL K/L/M/N This part replaces 01137-06165.

01570-0616A

2
Out of stock

13

BOLT | MODEL P

01737-06168

2
Out of stock

13

BOLT | MODEL R This part replaces 01820-06163.

01570-0616A

2
Out of stock

14

BRACKET, SEAT SUPPORT | MODEL K/L/M/N This part replaces 45220-20A00.

45220-47H00

1
Out of stock

14

BRACKET, SEAT SUPPORT | MODEL P/R This part replaces 45220-20A01.

45220-47H00

1
Out of stock

15

CABLE, SEAT LOCK

45280-20C00

2
Out of stock

16

SCREW | MODEL K/L/M/N This part replaces 02122-06305.

02122-0630B

2
Out of stock

16

SCREW | MODEL P/R This part replaces 02122-06308.

02122-0630B

2
Out of stock

17

BRACKET, SEAT REAR NO.2 | MODEL P/R

45220-06C00

1
Out of stock

18

SCREW | MODEL P/R This part replaces 02122-06208.

02122-0620A

2
Out of stock
